FA System for PC Operators manual Page 271

Operators manual
B-75044EN/02 APPENDIX D. DNC1
-259-
DNC Operation Requested by NC
Operating NC
1 Refer to item 1 to 9 of “Procedure for DNC Operation” of “Sample
Operations for FS16/18”, or item 1 to 6 of “Procedure for DNC
Operation” of “Sample Operations for FS15”, or item 1 to 6 of
“Procedure for DNC Operation” of “Sample Operations for FS0” in “B.1
DNC1, DNC2”.
Using Dnc1Test

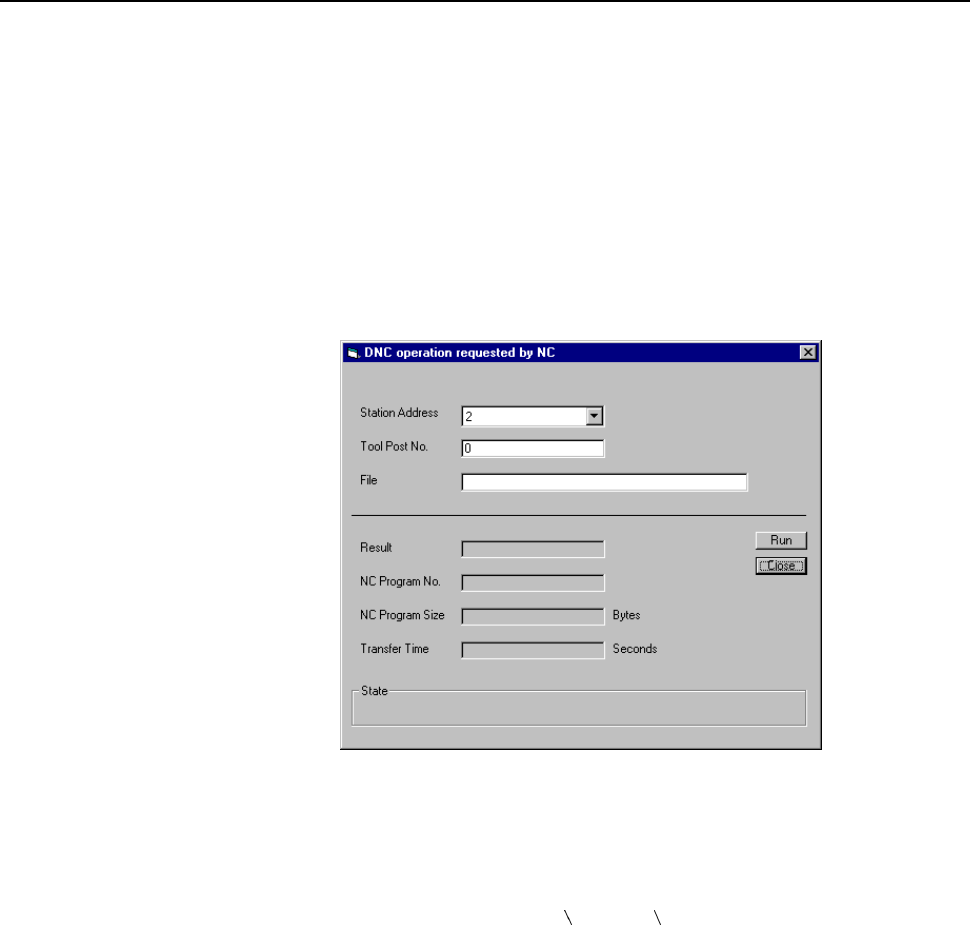

2 Click the <DNC Operation by NC> button in the main screen.
3 From the [Station Address], select the station address of the NC.
4 Enter ‘0’ for the tool post number. If the DNC operation can be
executed, the tool post number can’t be specified.
5 Enter the file to be transferred.
Enter the file name “C:
NCDATA O0017.PRG”, for example.
6 Click the <Run> button.
Operating NC
7 Refer to item 10 to 12 of “Procedure for DNC Operation” of “Sample
Operations for FS16/18”, or item 7 of “Procedure for DNC Operation”
of “Sample Operations for FS15”, or item 7 to 9 of “Procedure for DNC
Operation” of “Sample Operations for FS0” in “B.1 DNC1, DNC2”.
Using Dnc1Test
8 The value of 0 is displayed in [RESULT] if the DNC operation is
successful. Otherwise, it is failed.
