FA System for PC Operators manual Page 373

Operators manual
54/62
02
04.10.04
Matsukura
SHEETDESCRIPTIONDESIGN DATE EDIT
01 Matsukura First issue
A
dded for version 1.1
TITLE
FANUC FA Library for Windows
OPERATOR’S MANUAL
B-75044EN/02-2
FANUC LTD.
03.09.17
DRAW.NO.
5 In the [Settings] group box, set the value that is not set using the <Set
Default> button.
[For Details] does not need to be specified.
Select the RS-232-C port number from the [Port] list box.
6 Click the <Save> button.

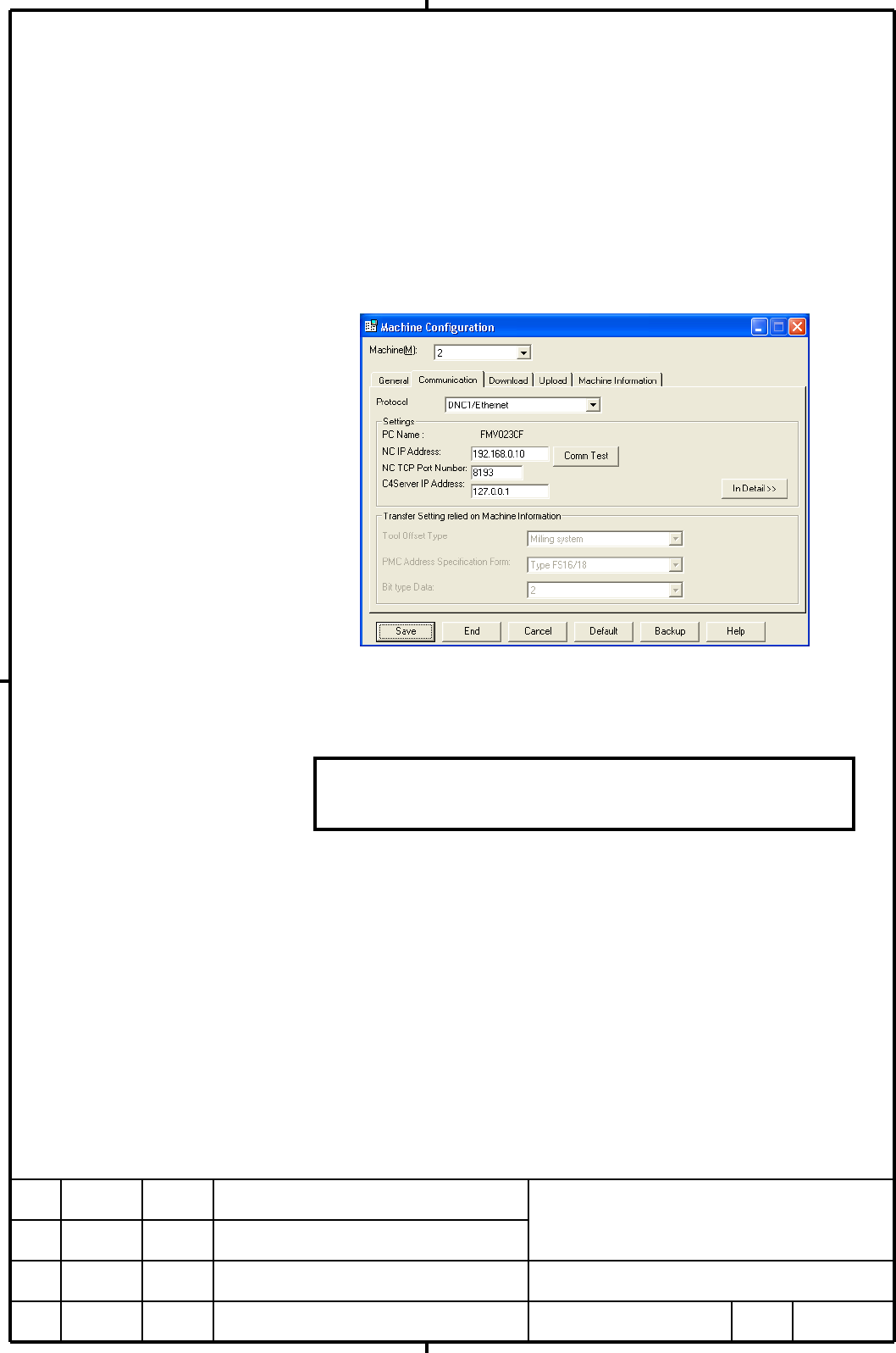

Settings of DNC1/Ethernet
1 Select the [Communication] tab in the [Machine Configuration] dialog box.
2 Select the machine number you want to set up from the [Machine] list box.
3 Select "DNC1/Ethernet" from the [Protocol] list box.
4 Press the <Set Default> button and set the default. The following value is
set:
C4 server IP address: 127. 0. 0. 1
5 In the [Settings] group box, set the value that is not set using the <Set
Default> button.
[For Details] does not need to be specified.
Enter the IP address" set to the NC to be connected in the [NC IP
Address] text box.
Enter the "TCP Port No. " set in the NC to be connected in the [NC
TCP Port No. ] text box.
NOTE
Do not change this value.
