FA System for PC Operators manual Page 374

Operators manual
55/62
02
04.10.04
Matsukura
SHEETDESCRIPTIONDESIGN DATE EDIT
01 Matsukura First issue
A
dded for version 1.1
TITLE
FANUC FA Library for Windows
OPERATOR’S MANUAL
B-75044EN/02-2
FANUC LTD.
03.09.17
DRAW.NO.

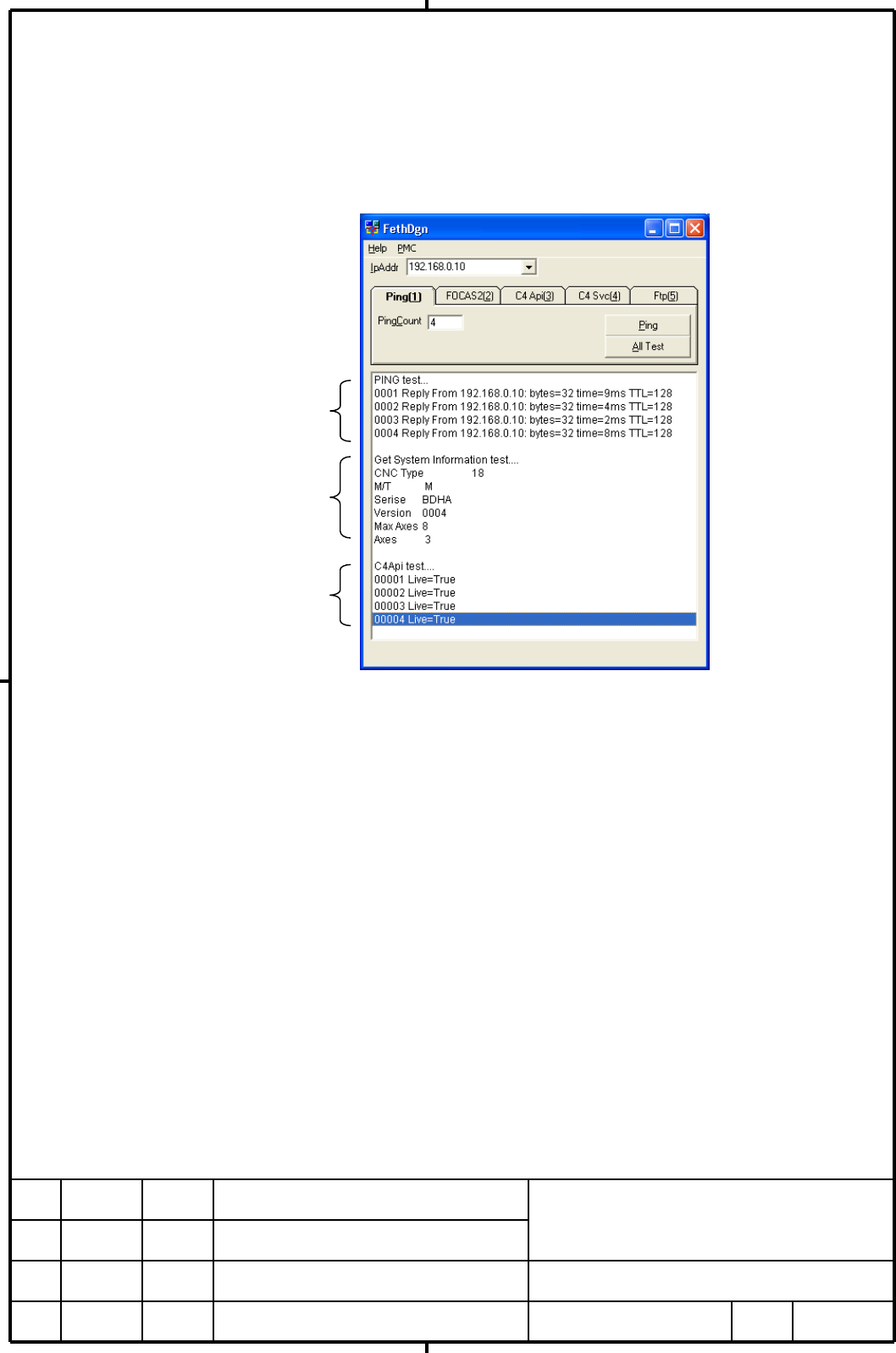

6 Click the <Comm Test> button, then check that it can be communicated to
CNC by DNC1/Ethernet. Please turn on the CNC before checking.
Displays for the correct setup
When the IP addresses for the PC and NC are set up correctly, and the NC
power is on, it is displayed as follows.
<1> "PING test. . . " is a result of testing the PING command in the NC.
<2>"Get System Information test. . . " is the system information of the NC.
CNC Type:Indicates an NC type.
15 Series 15 i (Caution: This model cannot be connected to
FA library. )
16 Series 16 i
18 Series 18 i
21 Series 21 i
PD Power Mate i -D
PH Power Mate i -H
M/T:Indicates an M/T type.
M Machining center
T Lathe
MM M series 2 path control
TT T series 2/3 path control (Caution: Cannot be connected)
MT T series with the complex machining
(Caution: Cannot be connected)
P Punch press (Caution: Cannot be connected)
<1> PING test. .
<2> Get S
y
stem Information test. . .
<3> C4A
p
i test. . .
