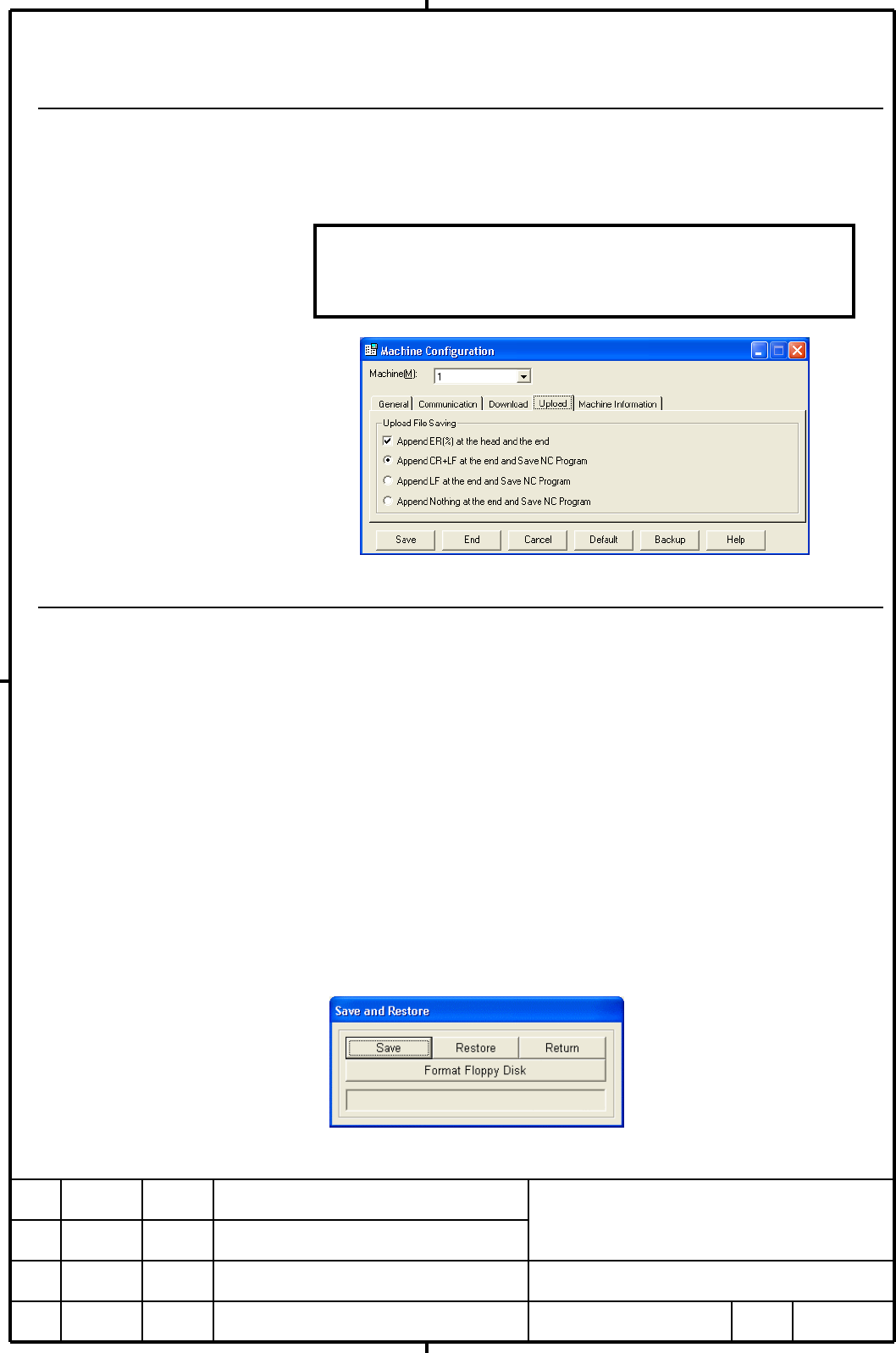

2.6.5 Upload Settings for Machine
1 Select the [Upload] panel in the [Machine Configuration] dialog box.
These settings are not used now but are provided for the future. Setup as
the following figure.
2.6.6 Saving and Restoring Settings
The FA library settings that are set in the Machine Setup screen are written to
a data file on your computer by clicking the <Save> button.
The installation floppy disk holds the FA library communication program and
various operation screens. Even if your computer crashes, you can install FA
library again once your computer is repaired. However, there is no means for
restoring FA library settings that are set in the Machine Setup screen when
your computer crashes.
You can save FA library settings to floppy disk in case you computer crashes.
You can also restore FA library settings. If you have changed the settings, be
sure to save the new settings to floppy disk.
Click the <Save> button in the Machine Setup screen. The following [Save and
Restore Setting] dialog box appears.
Click the <Return> button to return to the Machine Setup screen.
WARNING
If invalid settings are specified, the FA SYSTEM for PC might behave
unexpectedly.
