FA System for PC Operators manual Page 62

Operators manual
B-75044EN/02 3. NC PROGRAM MANAGEMENT
-49-
3.2 USING NC PROGRAM MANAGEMENT

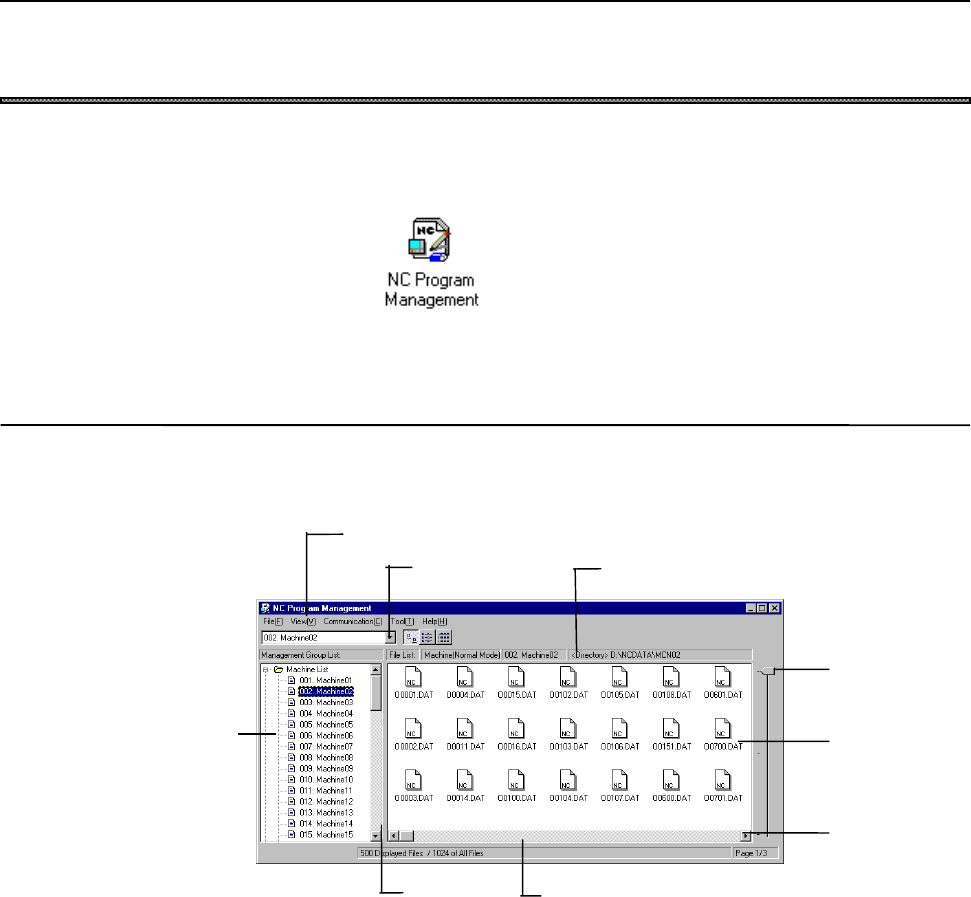

Double-click [NC Program Management] in the [FA System for PC] group
dialog. The NC PROGRAM MANAGEMENT screen will appear.
3.2.1 About The NC PROGRAM MANAGEMENT Window
The NC PROGRAM MANAGEMENT screen looks like this:
Menu Bar
Tool Bar Current Management Group Bar
Slider
File List
Scroll Bar
Split Bar Status Bar
Management Group List
Management Group List
The Management Group List looks on left side of the screen. The list of the
management groups is shown in this screen. The list consists of the Machine
List and the Directory List .
(1) Machine List
The Machine List indicates the machines that can be used by NC
PROGRAM MANAGEMENT. When a machine is double-clicked in the
list, the contents of the default-directory assigned to the machine appears
at the File List on the right.
