FA System for PC Operators manual Page 81

Operators manual
3. NC PROGRAM MANAGEMENT B-75044EN/02
-68-
4 Confirm that the directory specified by the above item 3 is shown in the
[File] label of the [ The Current Selecting File] group list of the [Select
Transfer File] dialog box. And click the <OK> button.
5 The above selected file is downloaded when you request to download an
NC program without specifying the NC program number in the NC side.
Clearing the Transfer File

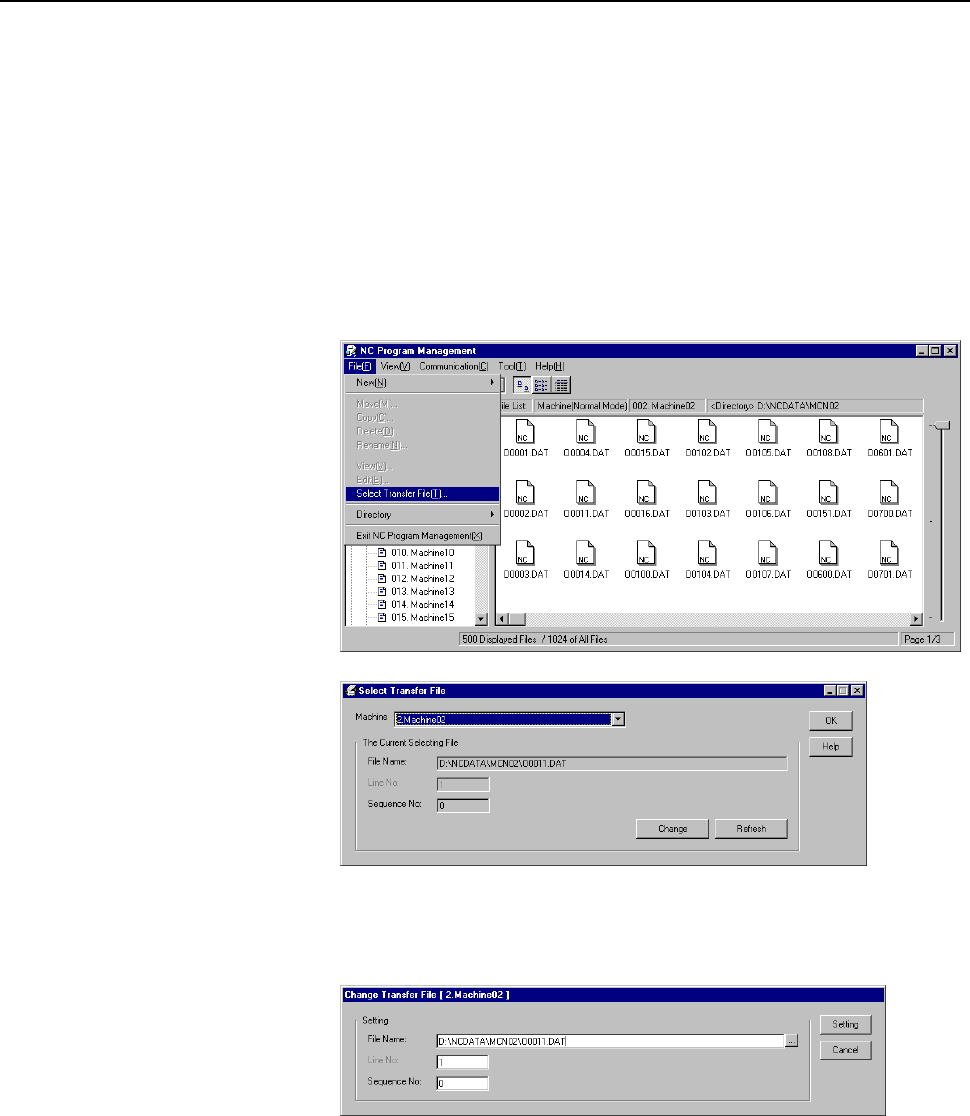

1 Choose the [Select Transfer File] command from the [File] menu. The
[Select Transfer File] dialog box will open.
2 Click the <Change> button in the [Select Transfer File] dialog box.
The [Change Transfer File] dialog box will open.
3 Clean up the contents of the [File Name] text box by using the Backspace
key, and click the < Setting> button.
