0i-TC Operators manual Page 692

Operators manual
OPERATION13. HELP FUNCTION
B–64114EN/01
666

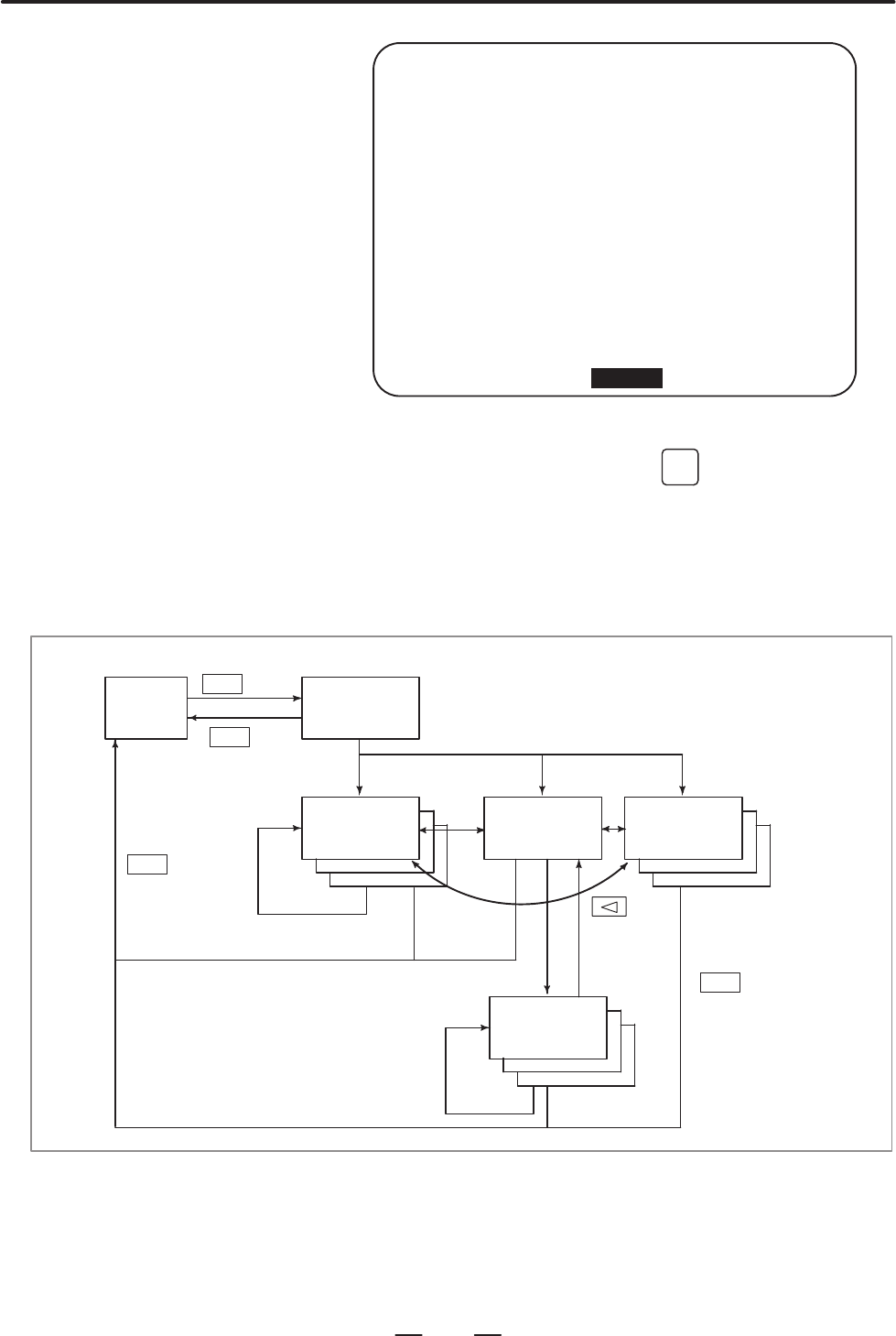

HELP (PARAMETER TABLE) 01234 N00001
1/4
* SETTEING (No. 0000∼)
* READER/PUNCHER INTERFACE (No. 0100∼)
* AXIS CONTROL
/SETTING UNIT (No. 1000∼)
* COORDINATE SYSTEM (No. 1200∼)
* STROKE LIMIT (No. 1300∼)
* FEED RATE (No. 1400∼)
* ACCEL/DECELERATION CTRL (No. 1600∼)
* SERVORELATED (No. 1800∼)
* DI/DO (No. 3000∼)
Fig. 13(j) PARAMETER TABLE screen
>_ S 0 T0000
MEM **** *** *** 10:12:25
[ ALAM ][ OPR ][ PARA ][ ][ ]
7 To exit from the help screen, press the
HELP
key or another function
key.
D Configuration of the Help Screen
[ALAM]
ALARM
DETAIL
screen
OPERATION
METHOD
screen
PARAME-
TER TABLE
screen
[OPR] [PARA]
key
CNC
screen
Each opera-
tion instruc-
tion screen
[OPR]
(NO.)+[SELECT]
(NO.)+[SELECT]
key
or
function key
HELP
INITIAL MENU
screen
HELP
key
or
function key
HELP
HELP
PAGE key
key
or
function key
HELP
(NO.)+[SELECT]
Explanation
