APPENDIXG. ALARM LIST

B–64114EN/01

806

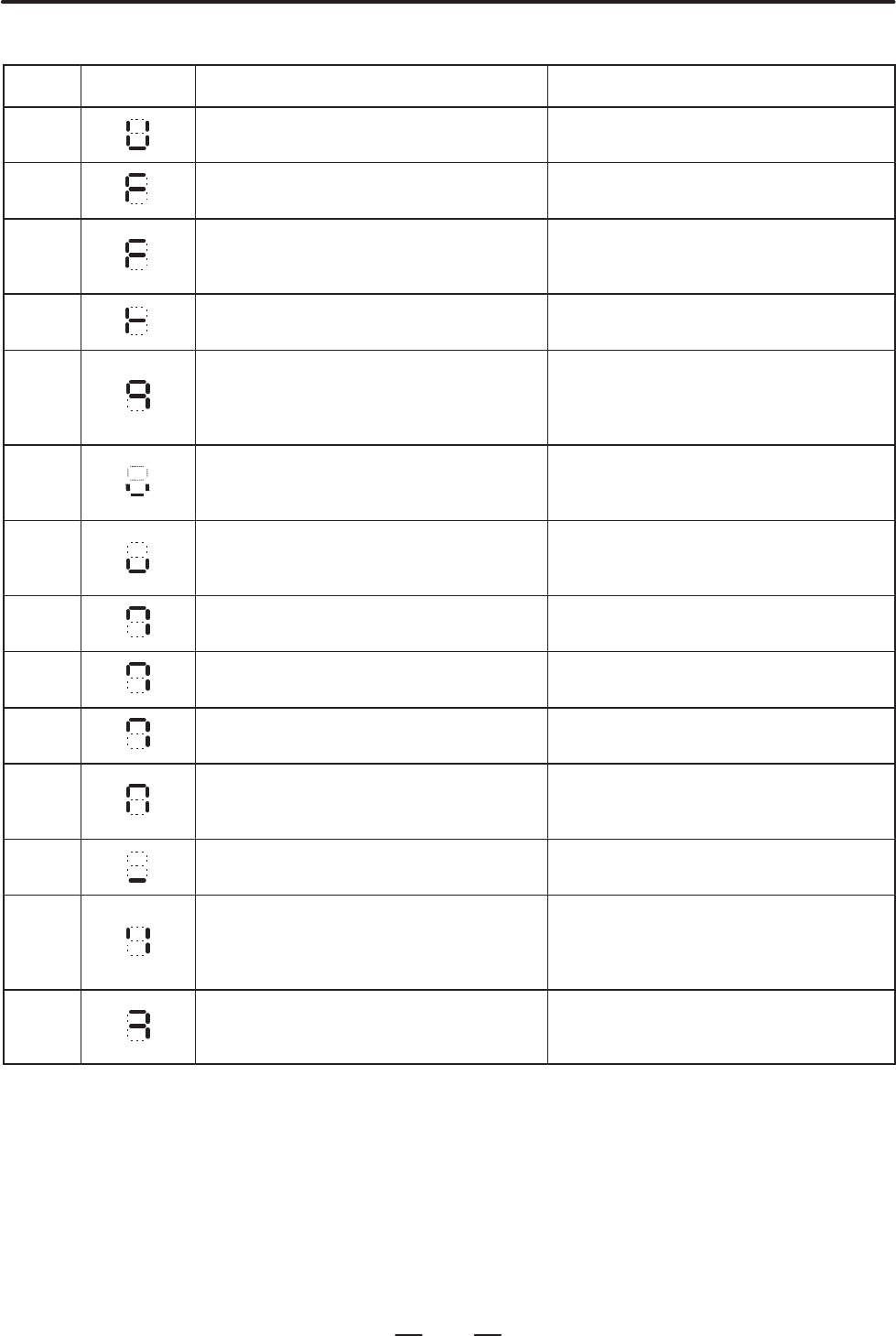

ERROR CODES (SERIAL SPINDLE)

No. LED display Description Countermeasure

000

A parameter that requires power–down has

been specified.

Turn the power off, then back on.

011

The specified feedrate is zero. Check the feedrate parameter specified with a

function code.

013

The specified feedrate (maximum feedrate) is

zero.

Check the value of parameter No.043, which

indicates the maximum feedrate that can be

specified.

070

More than 32 blocks have been registered for a

buffering operation.

Reduce the number of registered blocks to 32.

090

Reference position setting cannot be executed

normally.

Move the tool in the direction of reference posi-

tion return in jog mode at a speed that causes

the servo position error to exceed 128. Then,

specify another reference position setting.

093

A first to third reference position return cannot

be executed because the reference position

has not yet been established.

Set the reference position.

224

The reference position has not yet been estab-

lished. This occurs only when the ZRTN bit of

parameter No.001 is set to 0.

Set the reference position.

250

Input data 1 is invalid. Check input data 1, specified with a function

code.

251

Input data 2 is invalid. Check input data 2, specified with a function

code.

254

A function code or mode is invalid. Check the command code, specified with a

function code. Check the mode.

255

Operation cannot be activated because an in-

valid mode is specified or because block execu-

tion is in progress.

Check the mode. Check whether a block is be-

ing executed.

290

The interface switch signal (DRC) was switched

during block execution.

Switch the signal after block execution stops.

291

The speed of an axial movement specified by an

external pulse has exceeded the upper limit.

This occurs only when the EPEXA bit of param-

eter No.001 is set to 1.

Check the speed specified by the external

pulse. Check the magnification of the external

pulse (parameters No.062 and 063).

292

A checksum error for the non–volatile memory

was detected.

Parameters are cleared. Set the parameters

again. If this alarm subsequently recurs, re-

place the unit.
