Series 30i-MODEL A, System Alarm Additional Manual Page 8

Additional Manual
A-79354E
Title
Draw
No.
Ed. Date Design Description
Date Jan.06.’04 Design. Apprv.
6/8
Page
FANUC Series 30i-MODEL A
System Alarm
1.1.5 Output of System Alarm Information
With the FANUC Series 30i, saved system alarm information can be output
from the IPL screen to the memory card.
(When using the FANUC Series 300i/300is, use the SRAM batch save
function of the NC BOOT32 function to save system alarm information to
external media.)
1. Start the IPL monitor.
If the system alarm screen is displayed when a system alarm is issued,
press the reset key.
If the power is turned off, turn on the power while holding down "-"
and ".".

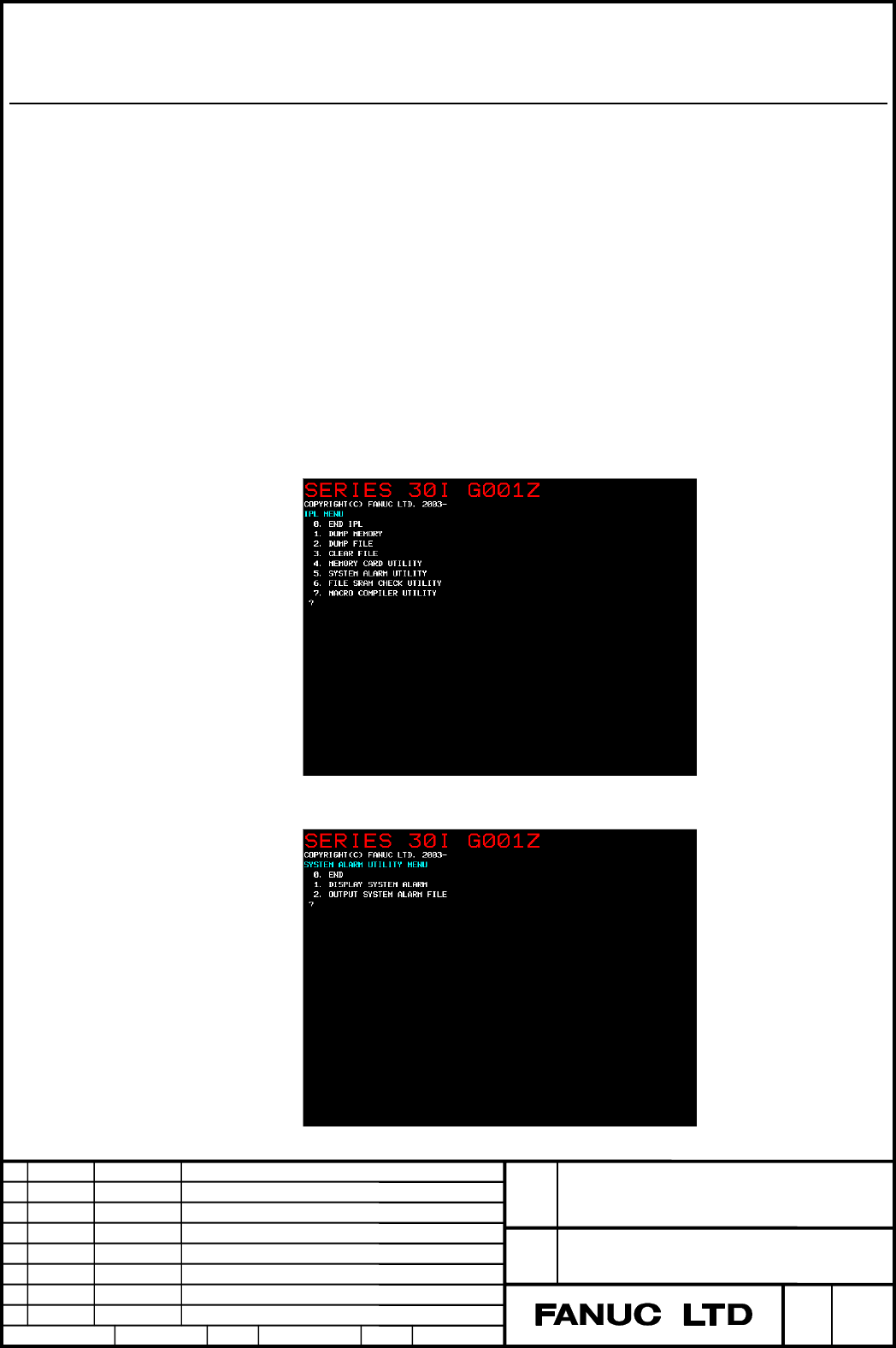

2. On the IPL monitor screen, enter 5 to select "5. SYSTEM ALARM
UTILITY".
3. Enter 2 to select "2. OUTPUT SYSTEM ALARM FILE".
