16-18TC/160-180TC Operators manual Page 478

Operators manual

Page of 812

/ 812

OPERATION

2. OPERATIONAL DEVICES

B–62754EN/01

460

There are 12 soft keys in the 14″ CRT/MDI or 9.5″ LCD/MDI panel. As

illustrated below, the 5 soft keys on the right and those on the right and

left edges operate in the same way as the 9″ CRT, whereas the 5 keys on

the left hand side are expansion keys dedicated to the 14″ CRT or 9.5″

LCD.

9″ CRT soft key

14″ CRT/9.5″ LCD dedicated expansion soft keys

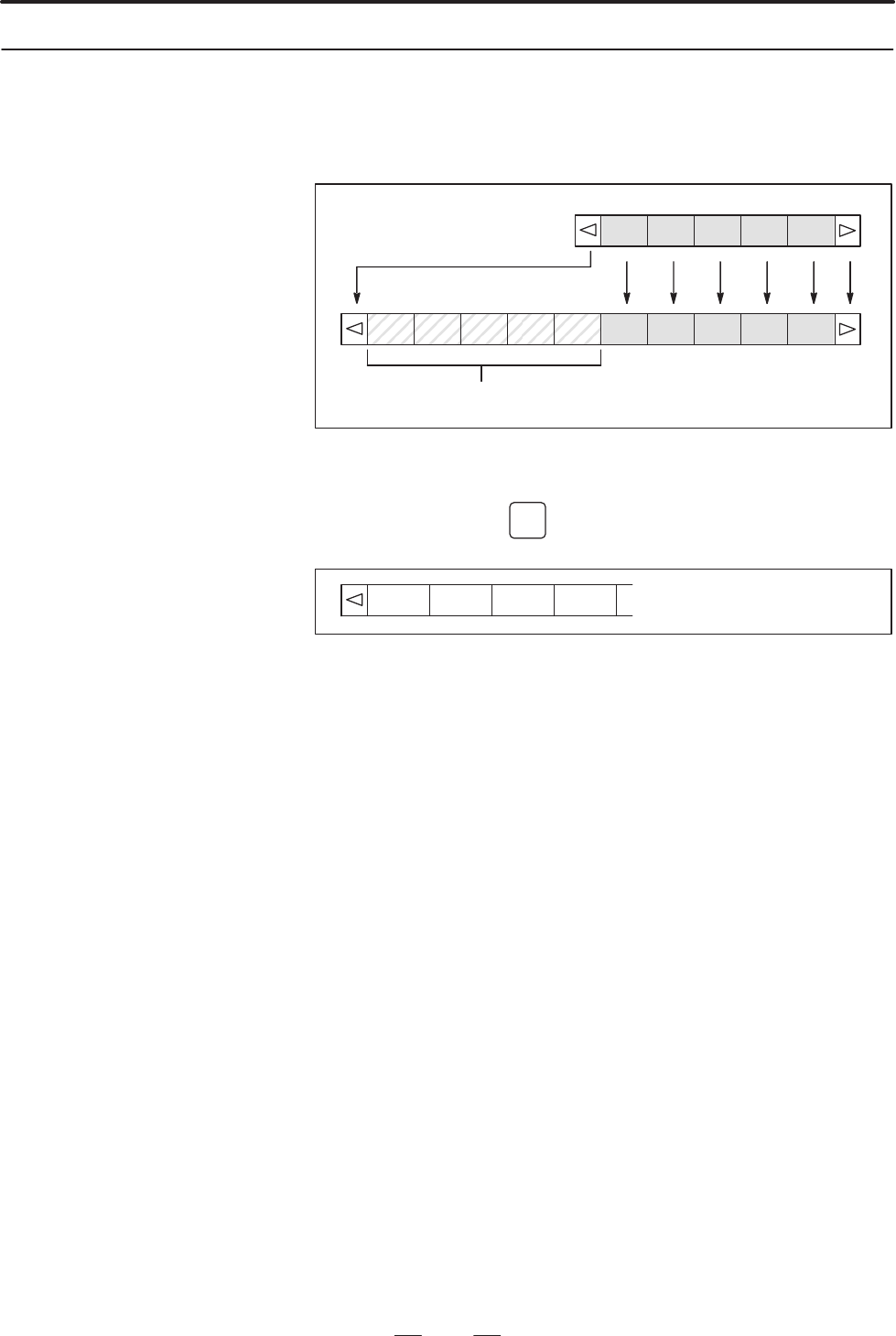

Fig. 2.3.6 CRT and LCD soft key configuration

14″ CRT / 9.5″ LCD soft key

Whenever a position display appears in the left half of the screen after a

function key other than

POS

is pressed, the soft keys on the left half of

the soft key display area are displayed as follows:

ABS

REL ALL

HNDL

The soft key corresponding to the position display is indicated in reverse

video.

2.3.6

14″ CRT and 9.5″ LCD

Soft Key Configuration
