FS16i/18i Additional Manual Page 10

Additional Manual
A-78714EN
Edit
Apprv.
Desig.
Sheet
Title
Draw
No.
Date
Design
Descri
p
tion
Date
FS16i/18i –MA/MB/TA/TB, 18i–MB5, 21i–MB/TB
Time constant for acceleration/deceleration during
High-speed and High-precision function modes
Specifications
June.7.2004
10/14
Sheet
T.Mochida E.Genma

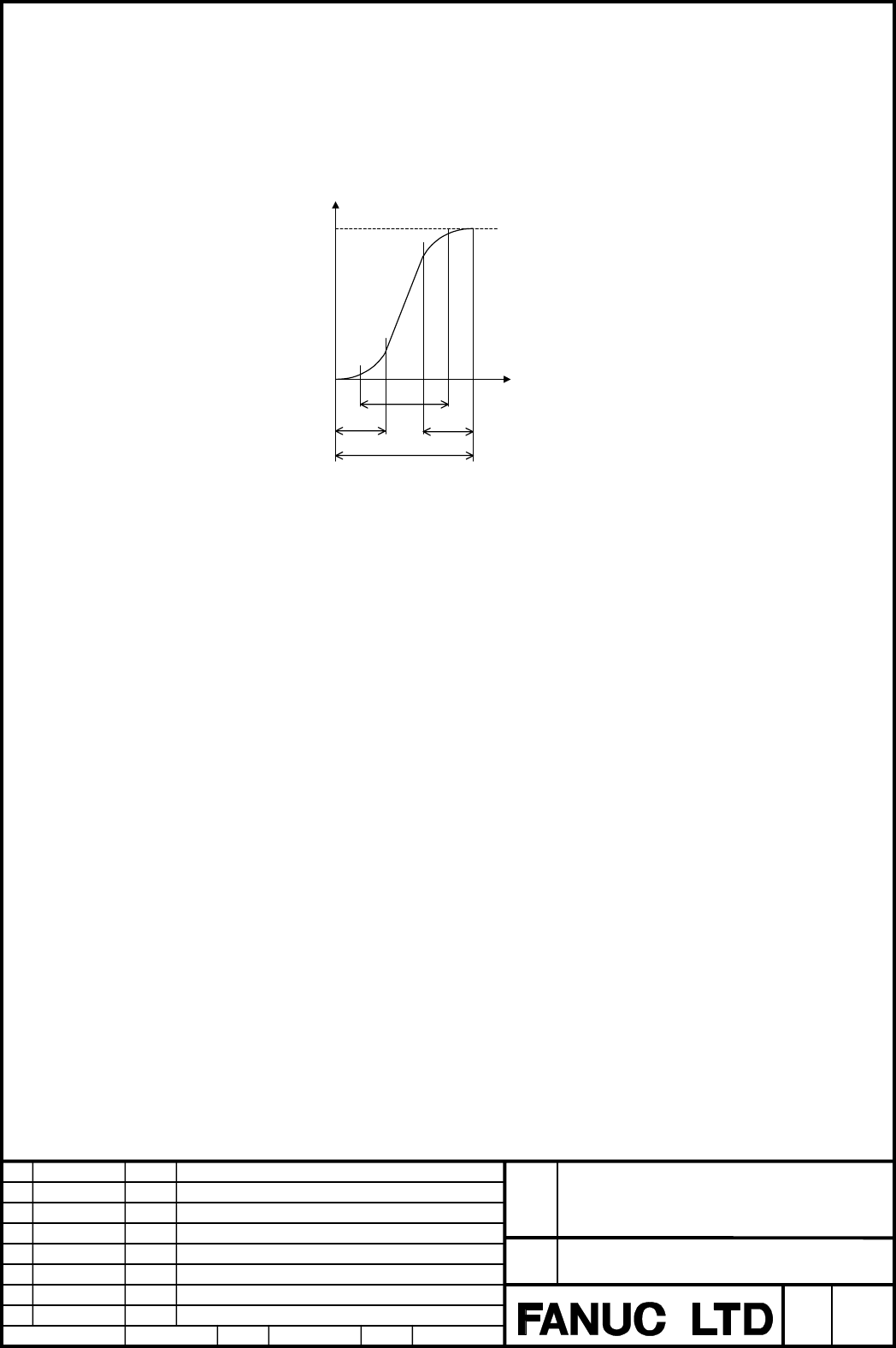

(2) In case of HPCC with parameter SBL (No.1603#3)=0.
(When the time required to reach the acceleration set with parameters No.8400
and No.8401 is set during look-ahead bell-shaped acceleration/deceleration
before interpolation: (Time t2 in the figure below))
Valid data range = 0
~ 99999999
Speed
Time
Ｖ
t
2
t
1
t
2
T
t
1
: Time constant when thinking with linear acc./
deceleration (Parameter No.8401).
t
2
: Time of part of rounding corner (Parameter
No.8416).
V: Speed to set acceleration time t1 (Parameter
No.8400).
Usually, set the maximum cutting speed.
Total time = T
Time of linear part = T-(2× t
2
)
Time of each curve part = t
2
When the speed of the target is different, total time
changes, too. (Acceleration constant method)
Previous page
Next page
