Power Failure Backup Module Descriptions Additional Manual Page 89

Additional Manual
EDIT.
FANUC LTD
SHEET
DRAW. NO.
CUST.
TITLE
89
/
93
DESCRIPTIONDESIG.DATE
Power Failure Backup Module
Descriptions
A-53866E-464
9.2 CONNECTION TO BE MADE IF PROVIDING AN EXTERNAL CONTROL POWER SUPPLY
If the number of SVMs to be connected to the PSM exceeds the number determined as described earlier,
provide an external 24V control power supply.
(1) Connection

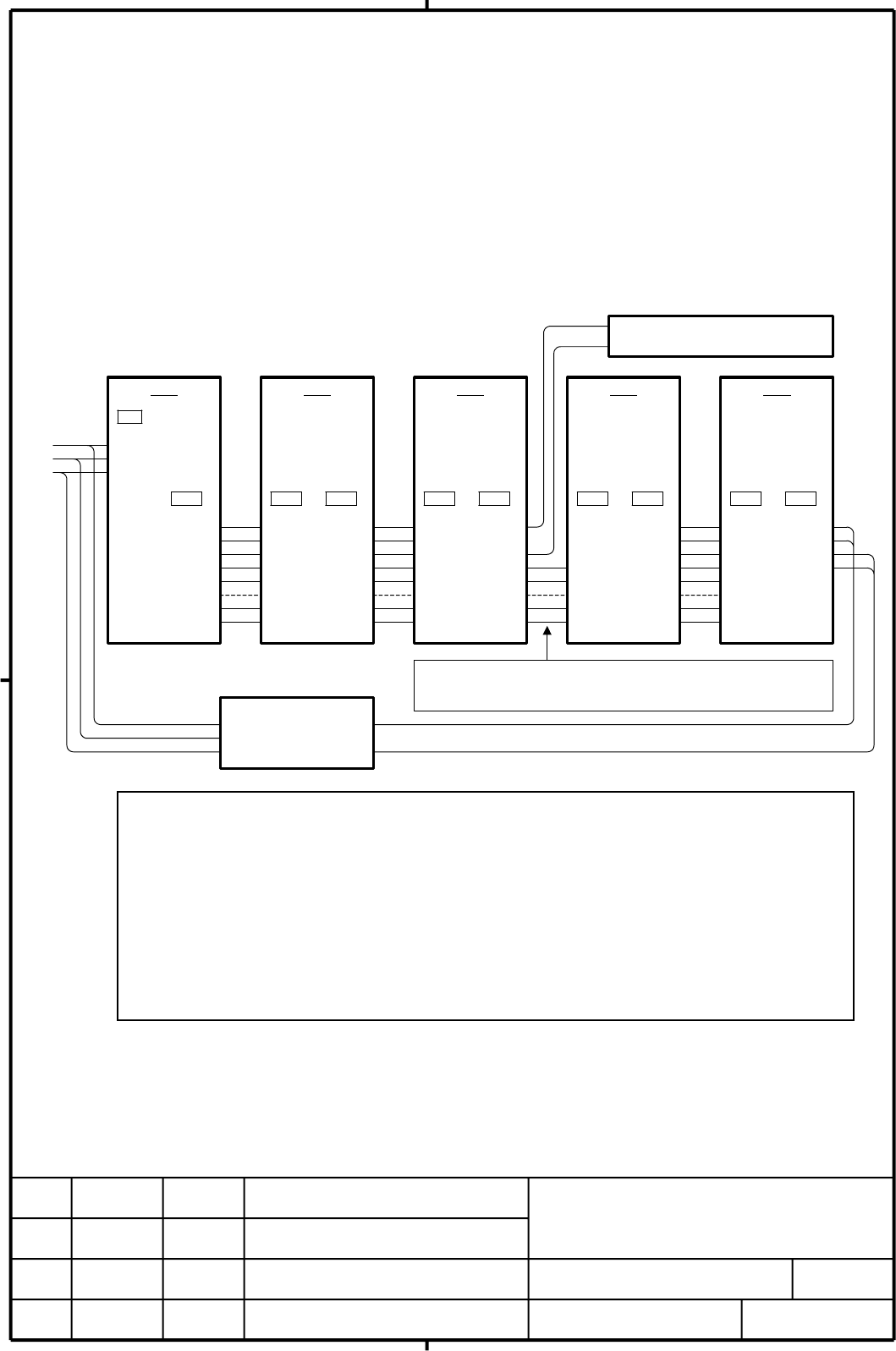

The following shows an example in which an external 24V control power supply is provided for two
SPMs.
Do not connect together 24V pins (A1 and A2) of the modules to which 24 V is supplied from the PSM
and those to which external 24 V is supplied. (You cannot use cable K69.)
K75
K69 K69
PSMi
CX1A
(3) PE
(2)200S
(1)200R
CXA2A
24V (A1)
24V (B1)
0V (A2)
0V (B2)
MIFA (A3)
BATL (B3)
*ESP (A4)
XMIFA (B4)
K69
SVMi
CXA2B CXA2A
(A1) 24V (A1)
(B1) 24V (B1)
(A2) 0V (A2)
(B2) 0V (B2)
(A3) MIFA (A3)
(B3) BATL (B3)
(A4) *ESP (A4)
(B4) XMIFA (B4)
SVMi
CXA2B CXA2A
(A1) 24V (A1)
(B1) 24V (B1)
(A2) 0V (A2)
(B2) 0V (B2)
(A3) MIFA (A3)
(B3) BATL (B3)
(A4) *ESP (A4)
(B4) XMIFA (B4)
SPMi
CXA2B CXA2A
(A1) 24V (A1)
(B1) 24V (B1)
(A2) 0V (A2)
(B2) 0V (B2)
(A3) MIFA (A3)
(B3) BATL (B3)
(A4) *ESP (A4)
(B4) XMIFA (B4)
External power supply
FG +24V OUT
AC
AC 0V
SPMi
CXA2B CXA2A
(A1) 24V (A1)
(B1) 24V (B1)
(A2) 0V (A2)
(B2) 0V (B2)
(A3) MIFA (A3)
(B3) BATL (B3)
(A4) *ESP (A4)
(B4) XMIFA (B4)
`Power failure backup module
Connect together only power line 0V pins (A2 and B2) of amplifiers to
which 24V control power is supplied from the PSM and those to which
external power is supplied, not 24V pins (A1 and B1).
N
OTE
The control circuit of the PSM is driven on the 200 VAC power connected to connecto
r
CX1A, and cannot be driven on an external 24V power supply. Do not connect an external
24V power supply to connector CXA2A of the PSM.
You can provide an external 24V control power supply to all SPMs and SVMs. Even in this
case, supply the 24V control power for the power failure backup module from the PSM (b
y
connecting cable K75 to CXA2A of the PSM).
