1.3 MACHINE OPERATION MENU
In this page describing a definition and structure of machine operation menu.
STRUCTURE OF MACHINE OPERATION MENU
Structure of machine operation is different from vertical soft key and horizontal soft key.
Descriptions of each soft key are as follows.
1) Vertical soft key
As the Fig 1.3(a), vertical soft key is constructed by main menu and several sub-menus.
Each button can define a machine operation or menu call.
When menu call is defined, a defined sub-menu is displayed by pressing the button.
Press a button defined as main menu call to return main menu.
MainMenu
Menu
Button
Menu
Button
SubMenu13
Operation3
Operation4
Operation5
Back
SubMenu12
Operation1
Operation2
Back

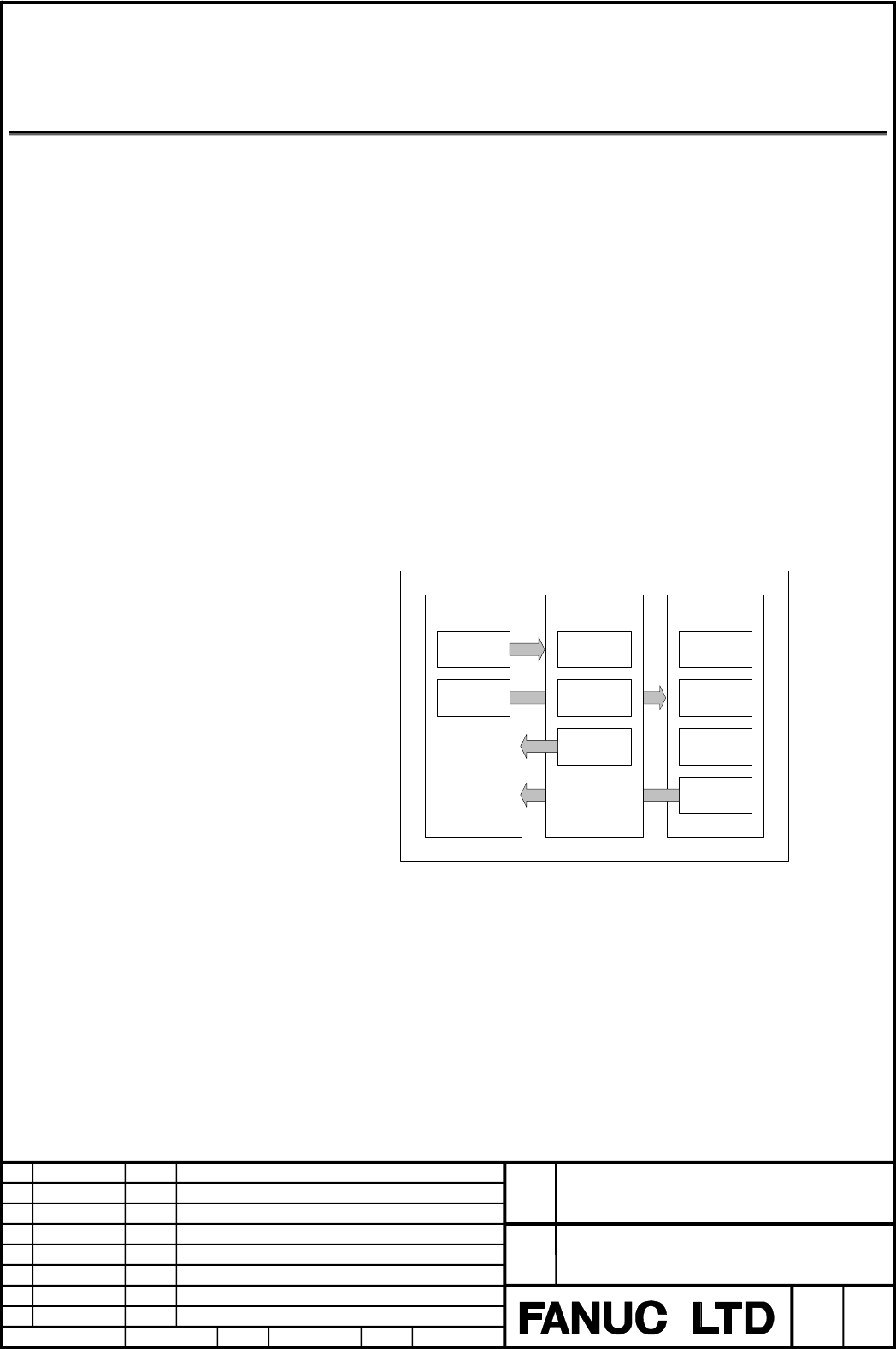

Fig.1.3 (a) Menu structure of vertical soft key
2) Horizontal soft key
As the Fig 1.3(b),, horizontal soft key menu is consisted by main menu and sub-menu
group.
More than one sub-menu is belonging to sub-menu group.
Signal operation or sub-menu calls can be defined by main menu button.
Only signal operation can be defined by sub-menu.
