Adapter to replace two axes servo inverter for FS20 with α SVM2
1. Outline
For 2 axes servo inverter (90-mm width) for FS20 was replaced with compatible α series
SVM2-20/20 (60-mm width), the adapter to facilitate the replacement is prepared.
2. Designation
Name Designation Contents
Adapter A06B-6074-K001 Adapter, Packing, Screw(M6x2)
3. Replacement
It is possible that 2 axes servo inverter for FS20 is replaced with compatible α series
SVM2-20/20). On the other hand, external dimension is different between them.
Name Designation External dimension
2 axes servo inverter
for FS20
A06B-6074-H201 Width: 90mm
With fin
α series SVM2-20/20 A06B-6079-H203 Width: 60mm
Without fin
4. Mounting

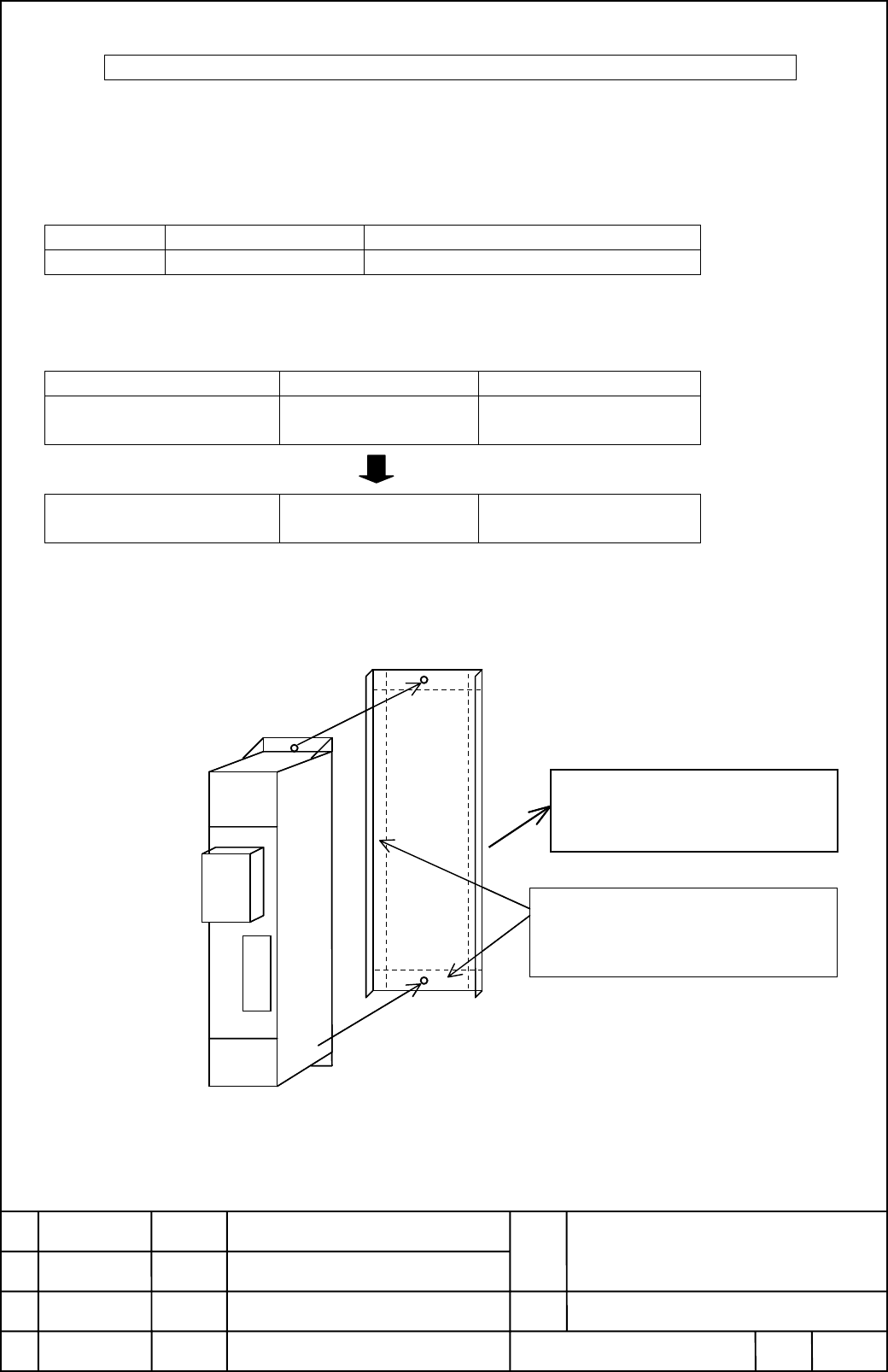

α SVM2-20/20
A
dapter
A
250-8003-X458#B
Mount on the cabinet that the
panel is cut for 2 axes servo
inverter for FS20.
Put the packing to the other side
of the adapter.
(Note 1.)
(Note 1.)
A
ttach packing to prevent the ingress of
oil and dust.
(1) Adapter
