  2. Fanuc Synchronous Built-In Spindle Motor BiS Series

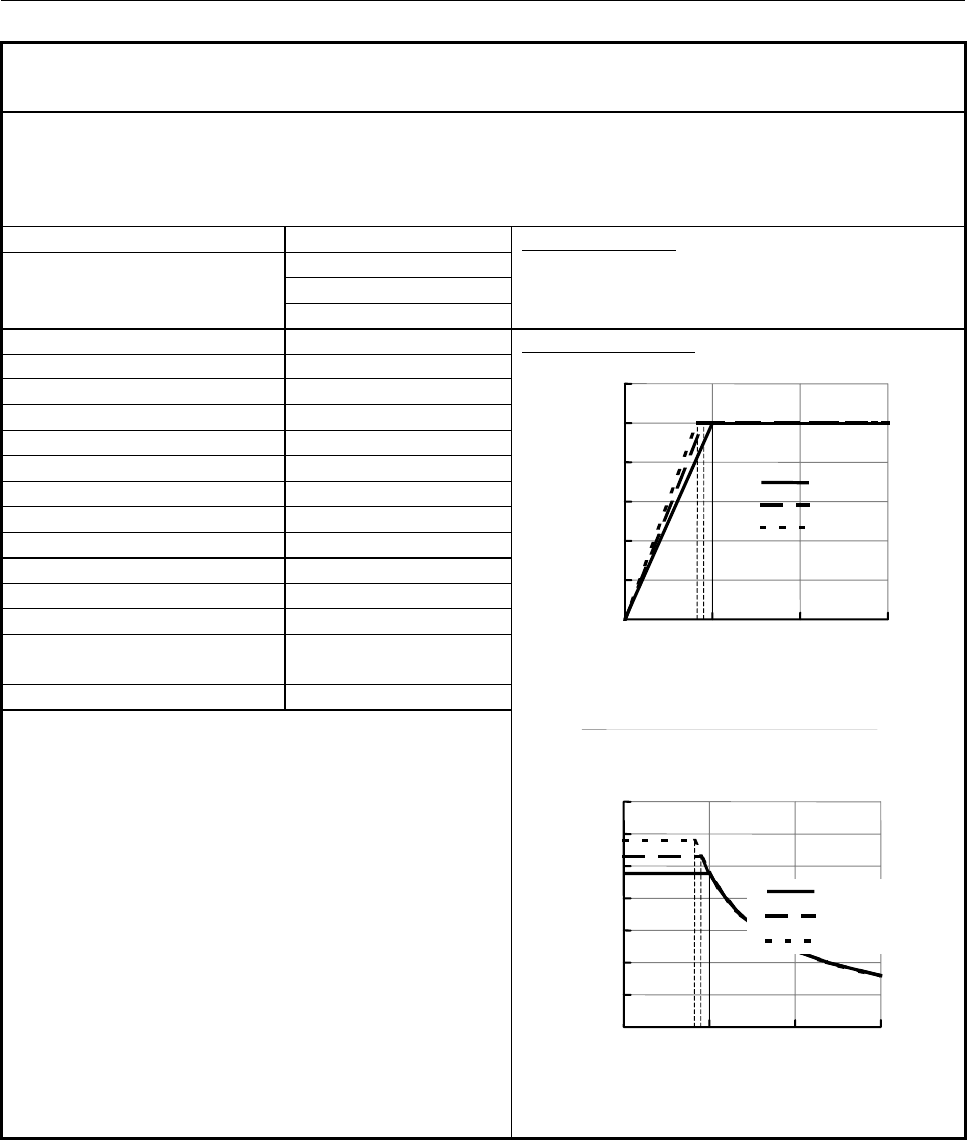

Fanuc Synchronous Built-In Spindle Motor BiS Series Descriptions Page 18

Descriptions
1.SPECIFICATIONS SPECIFICATIONS B-65342EN/01
- 4 -
Model: BiS132L3/6000
A06B-1843-B141#0P4B
Amplifier A06B-6122-H045#H553 (αiSP-45HV Type B)
Sub module A06B-6111-H403 (SSM-100)
O-Ring Kit A06B-1840-K002
Sensor α
iBZ, αiCZ (*) Check the permissible speed of the sensor.
Amplifier Input 460 V
Max. 430 V
Max. 92 A
Motor input
Rated 72 A
PSM selection data
* These values are not guaranteed for motor output.
Maximum Power 36 kW
Constant Power 25 kW
Mass of Stator 26 kg Output characteristics
Mass of Rotor 10 kg
Rotor moment of Inertia 0.032 kgm
2
Cooling Power More than 4 kW
Cooling medium flow rate More than 15 L/min
Temperature of medium inlet 22 °C
The rise of outlet from inlet 8 K
Density of medium 0.88 g/cm
3
Specific heat 1.78 J/gK
Thermal class F
Degree of protection Main body IP00 (*2)
Built-in Must be minimum IP54
Allowable angular acceleration
and deceleration (*1)
A06B-1843-B141 12000 rad/sec
2
(*1)Danger :
In any conditions, the angular acceleration (deceleration) of a
spindle must never exceed this value. The excess
acceleration(deceleration) might cause a slip of the rotor, and
in the worst case, there is some possibility being
uncontrollable state because of the loss of pole position.
If some accident is happen, such as a crash of spindle etc.,
the motor never been restarted without running a pole
position detecting function.
(*2)Notice :
The stator is IP00 itself. Even if the stator is resin molded, the
performance for environment is same as non molded motor.
Therefore protection class must be IP54 or more.
25kW
0
5
10
15
20
25
30
0 2000 4000 6000
min
-
1
kW
S1 Cont.
S2 15min
S3 15%
119
133
0
25
50
75
100
125
150
175
0 2000 4000 6000
min
-
1
Nm
S1 Cont.
S2 15min
S3 15%
1650
Power
Torque
145
1800
1650
1800
(*) The data of S3 is valid for 3 min. duty cycle.
(*) The data of S3 is valid for 3 min. duty cycle.
Previous page
Next page
