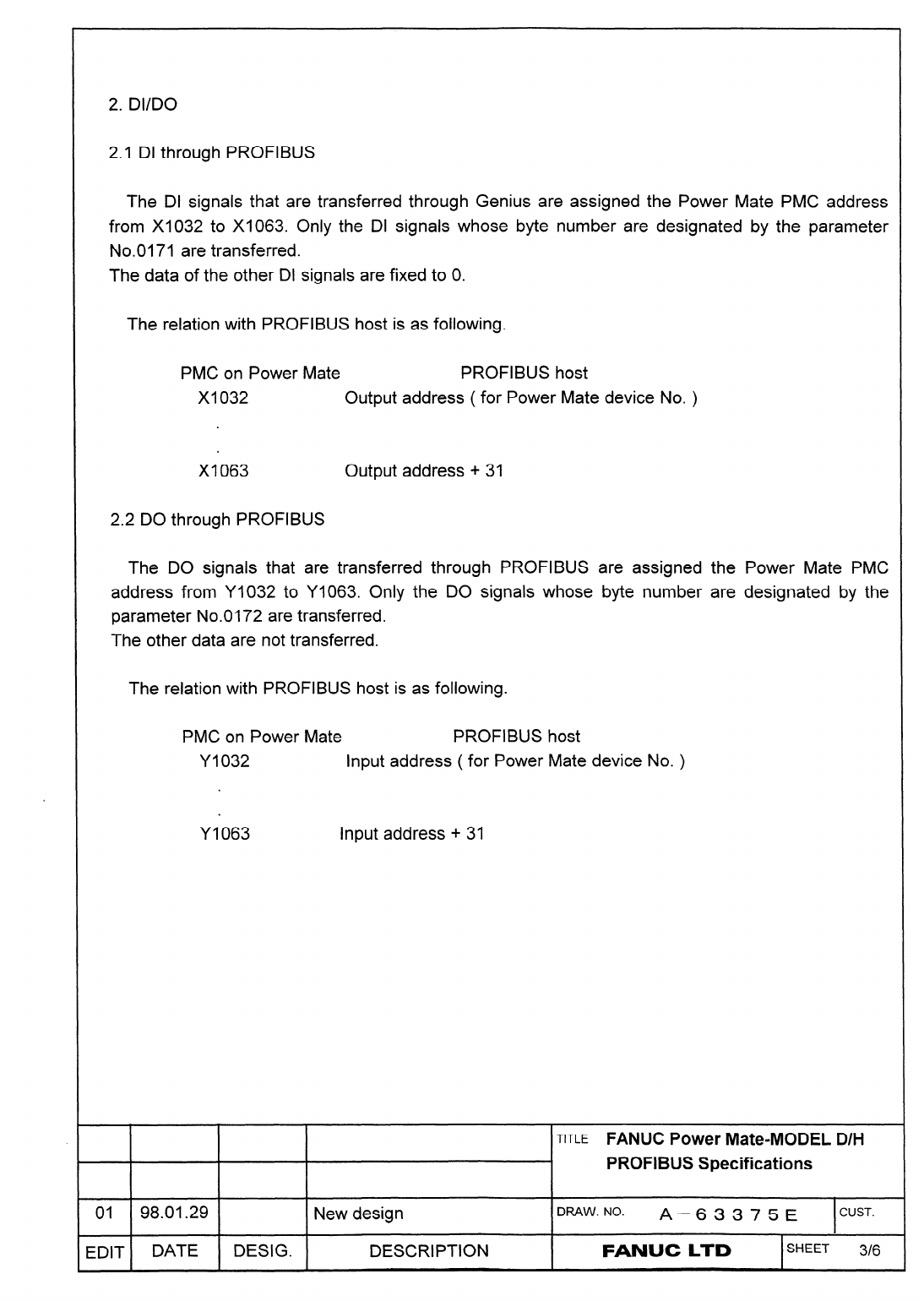

2. DVDO
2.1 Dl through PROFIBUS
The DI signals that are transferred through Genius are assigned the Power Mate PMC address
from Xl032 to X1063. Only the Dl signals whose byte number are designated by the parameter
No.01 71 are transferred.
The data of the other DI signals are fixed to 0.
The relation with PROFIBUS host is as following.
PMC on Power Mate
PROFIBUS host
Xl 032
Output address ( for Power Mate device No. )
Xl 063
Output address + 31
2.2 DO through PROFIBUS
The DO signals that are transferred through PROFIBUS are assigned the Power Mate PMC
address from Y 1032 to Y1063. Only the DO signals whose byte number are designated by the
parameter No.01 72 are transferred.
The other data are not transferred.
The relation with PROFIBUS host is as following.
PMC on Power Mate
PROFIBUS host
Y1032 Input address ( for Power Mate device No. )
Y1063 Input address + 31
TITLE FANUC Power Mate-MODEL D/H
PROFIBUS Specifications
61 1 98.01.29 1
I
New design
I
DRAW. NO.
A-63375E
I
CUST.
EDIT
DATE DESIG.
DESCRIPTION
FANUC LTD
SHEET
316
