Series 30i/31i/32i -MODEL A Additional Manual Page 5

Additional Manual
A-79353E
Title
Draw
No.
5/20
Sheet
Operation manual of FS30i/31i/32i-MODEL A
PC tool for Memory Card Program
Operation/Editing
Ed. Date Design Description
Date Desig. Apprv.
Feb 18.2004
When "Create a new file" is selected

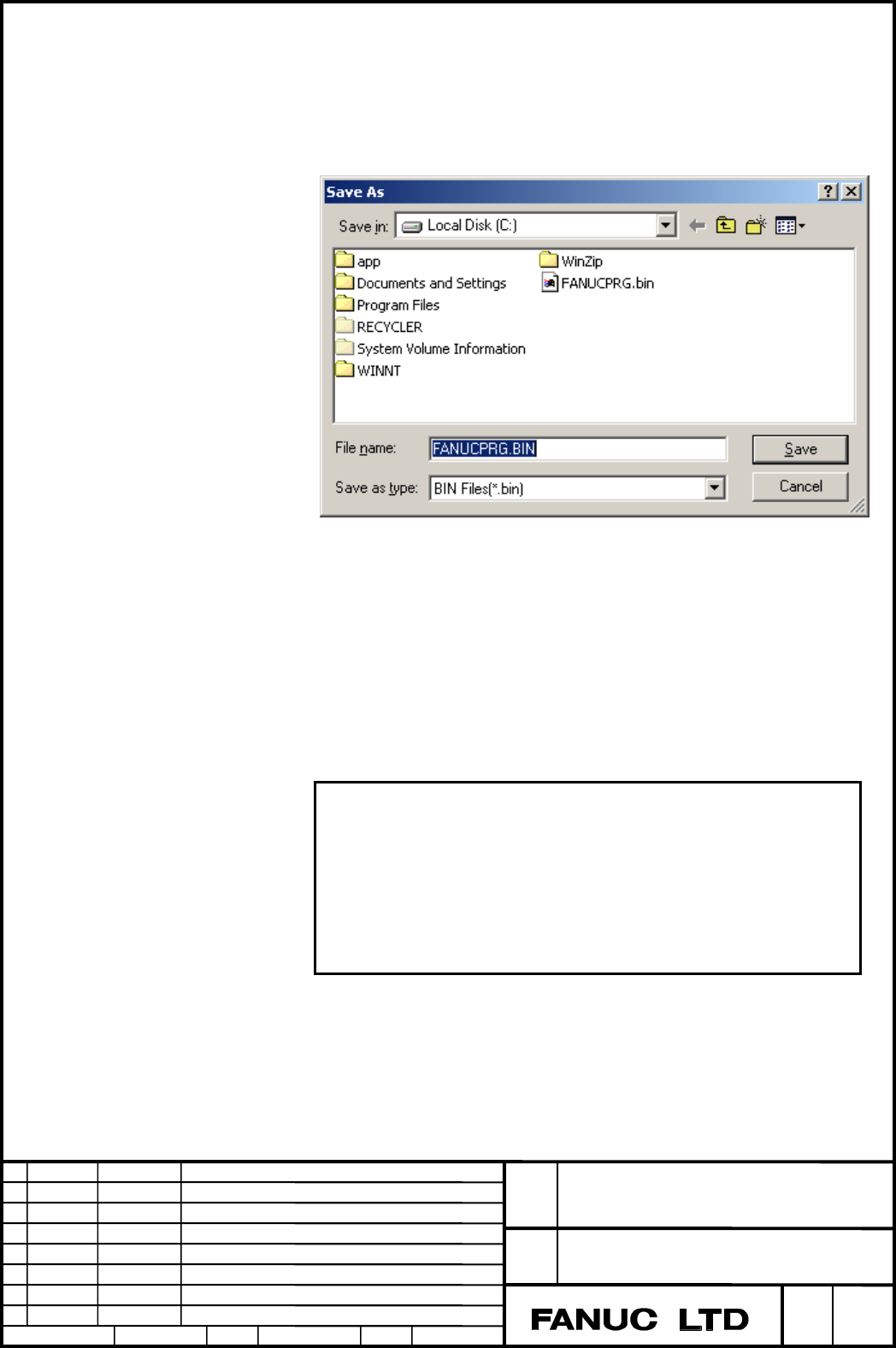

After OK button pushed, "Save As" dialogue window is displayed.
Please create a new memory card program file on the selected folder.
When the new the memory card program file is created, the following
items need to be selected:
- Folder/Program Numbers
- Program Size
"Folder/Program Numbers" can be selected among 63 / 500 / 1000. The
default value is 63.
"Program Size" can be selected among 2Mbyte, 4Mbyte, 8Mbyte, and
Customize. The default value is 2Mbyte.
Note
1. When "Customize" size is selected, it is available to
cover the range from 2Mbyte to 2048Mbyte.
2. Though the maximum size is 2048Mbyte, a slight
loss exists by system use.
3. The number of "Folders" in the status bar includes
number of program file and folder.
