2-2 Spindle setting screen

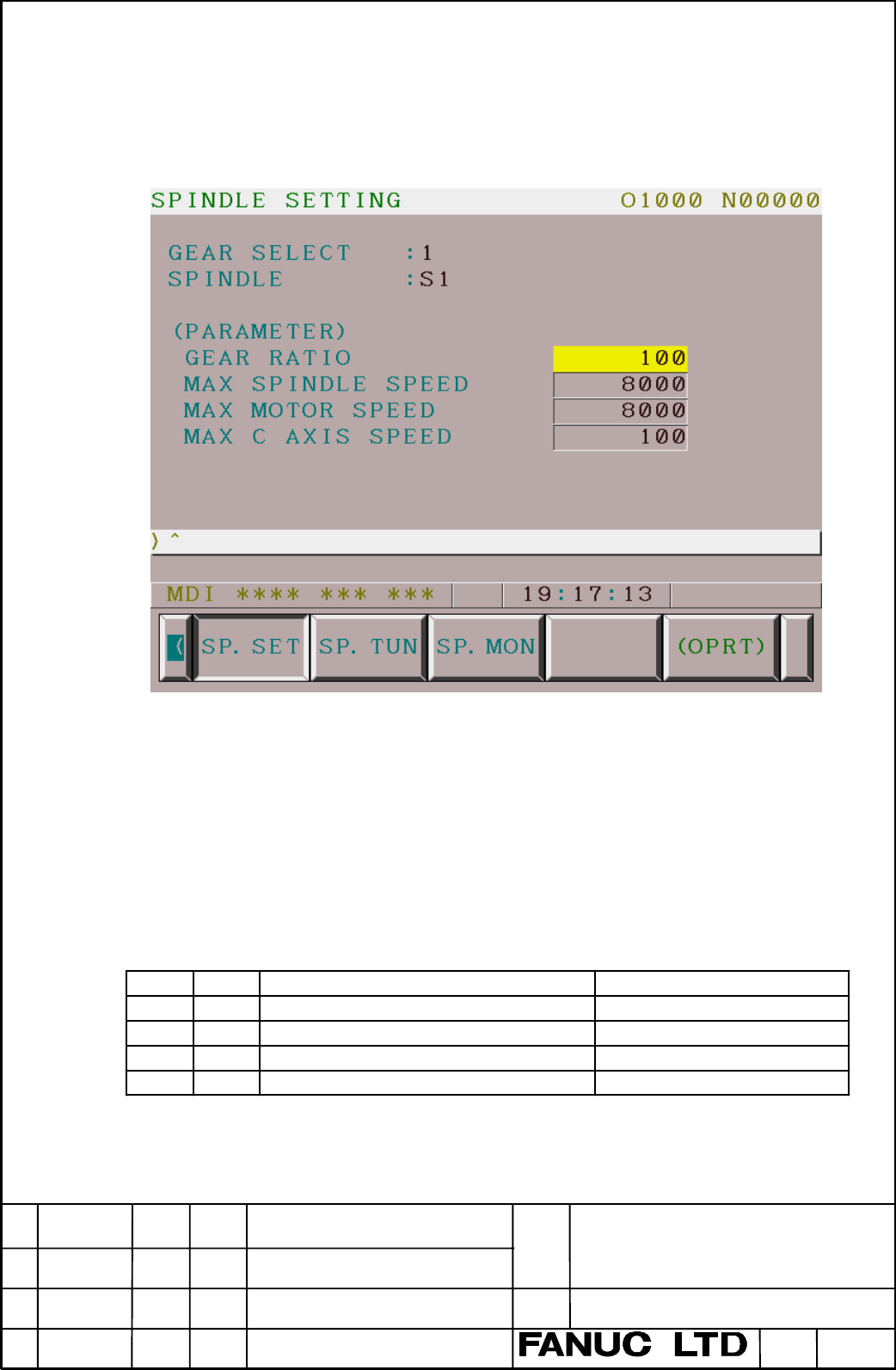

This screen displays basic parameters related to serial spindle. This screen is displayed
by pressing the soft key “SP.SET” and can be switched to another spindle’s using page
keys and/or cursor keys.
(Note) In case of displaying a screen of the second or third spindle, the max
spindle speed and the max C axis speed are not displayed.
GEAR SELECT ---- The gear select status on the machine side is displayed.
The gear selection is displayed as the following table by a combination of the input
signals CTH1 and CTH2.
⇒
CTH1, CTH2 of the 1st spindle : < G0070#3, #2 >
CTH1, CTH2 of the 2nd spindle : < G0074#3, #2 >
CTH1, CTH2 of the 2nd spindle : < G0204#3, #2 >
CTH1 CTH2 Selected serial spindle p a ram e te r Indication in th is screen
00 HIGH GEAR 1
01 MEDIUM HIGH GEAR 2
10 MEDIUM LO W GEAR 3
11 LOW GEAR 4
Previous page
Next page
