a.
Detail of PMC User ladder
l
Release guard lock(*LGDM) under the condition of open guard request(ORQ) and
stopping of spindle by checking spindle excitation signal (EXOF=1).
l
When turning on power, since EXOFA is not valid until transmission between CNC
and Spindle Amplifier connected, mask EXOF to ‘1’ by the timer.
l
At the condition of Guard State signal (SGD) is ‘0’ (guard open) and Spindle
enabling switch (SPEN) is ‘0’ (drive disable), check that the spindle excitation
signal (EXOF) is ‘1’ . If the inconsistency is detected while a certain time(*1), invoke
1
st
or 2
nd
channel alarm which stops the system immediately

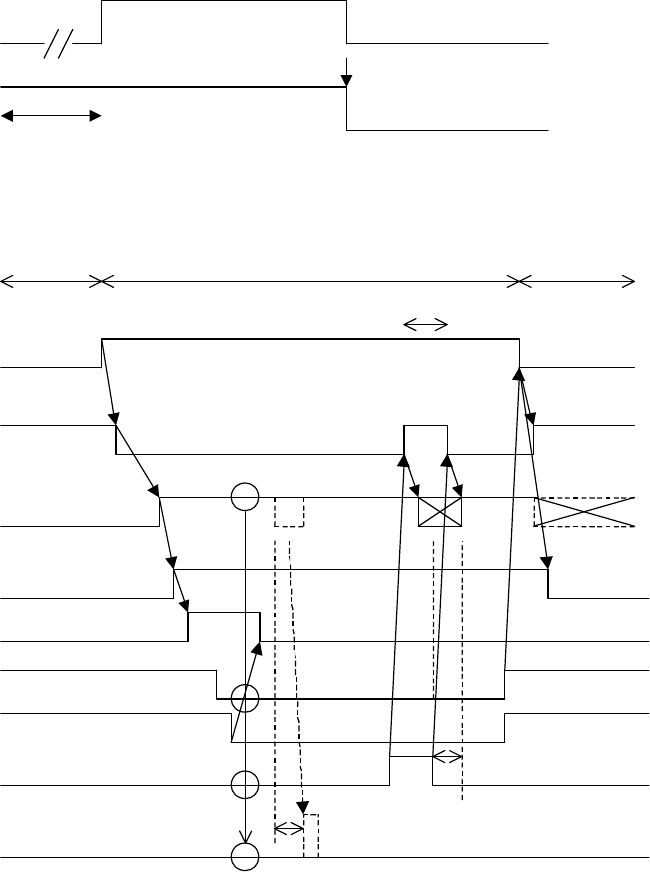

(1) Sequence of PMC at power on
EXOFA
EXOF
Mask to ‘1’ while spindle
amplifier power on by the
timer.
Mask with PMC Ladder
(2) Sequence of PMC
EXOF
Rotation of Spindle Opening of guard
Spindle drive enable
Closing of guard
ORQ
*ESPA, MRDYA
SGD1
Surveillance
abnormal
(*1)Mask the alarm by timer
SPEN1
*LGD
1
st
channel alarm
Actual Guard
status signal
*LGDM
(*2)
*1 Although PMC alarm conditions are detected until a spindle stops excitation (EXOF
becomes 1) after spindle-axis rotation enabling switch(SPEN1) is turned off, the alarm
must be masked by the ladder during this period.
*2 In case of EXOF is go to 0, one of SFRA,SRVA,ORCMA should be set to 1.
