AI (NANO) HIGH PRECISION CONTOUR CONTROL Additional Manual Page 13

Additional Manual
Title
No.
FANUC Series 16i/18i -MA/MB
AI High Precision Contour Control
FANUC Series 16i -MA/MB
AI Nano High Precision Contour Control
A-78435E
Page
12/
36
Newly registered

Ver Date Design Description
01 01.03.16
Hosokawa
1.2
Automatic feedrate control function
In AI High Precision Countour Control mode, the feedrate is automatically
controlled by the reading-ahead of blocks.
The feedrate is determined using the following conditions. If the specified
feedrate exceeds the determined feedrate, acceleration/ deceleration before
interpolation is performed to achieve the determined feedrate.
(1) Feedrate changes on each axis at a corner and the permissible feedrate
change that has been set
(2) Expected acceleration on each axis and the permissible acceleration that has
been set
(3) Cutting load that is expected from the travel direction on the Z-axis

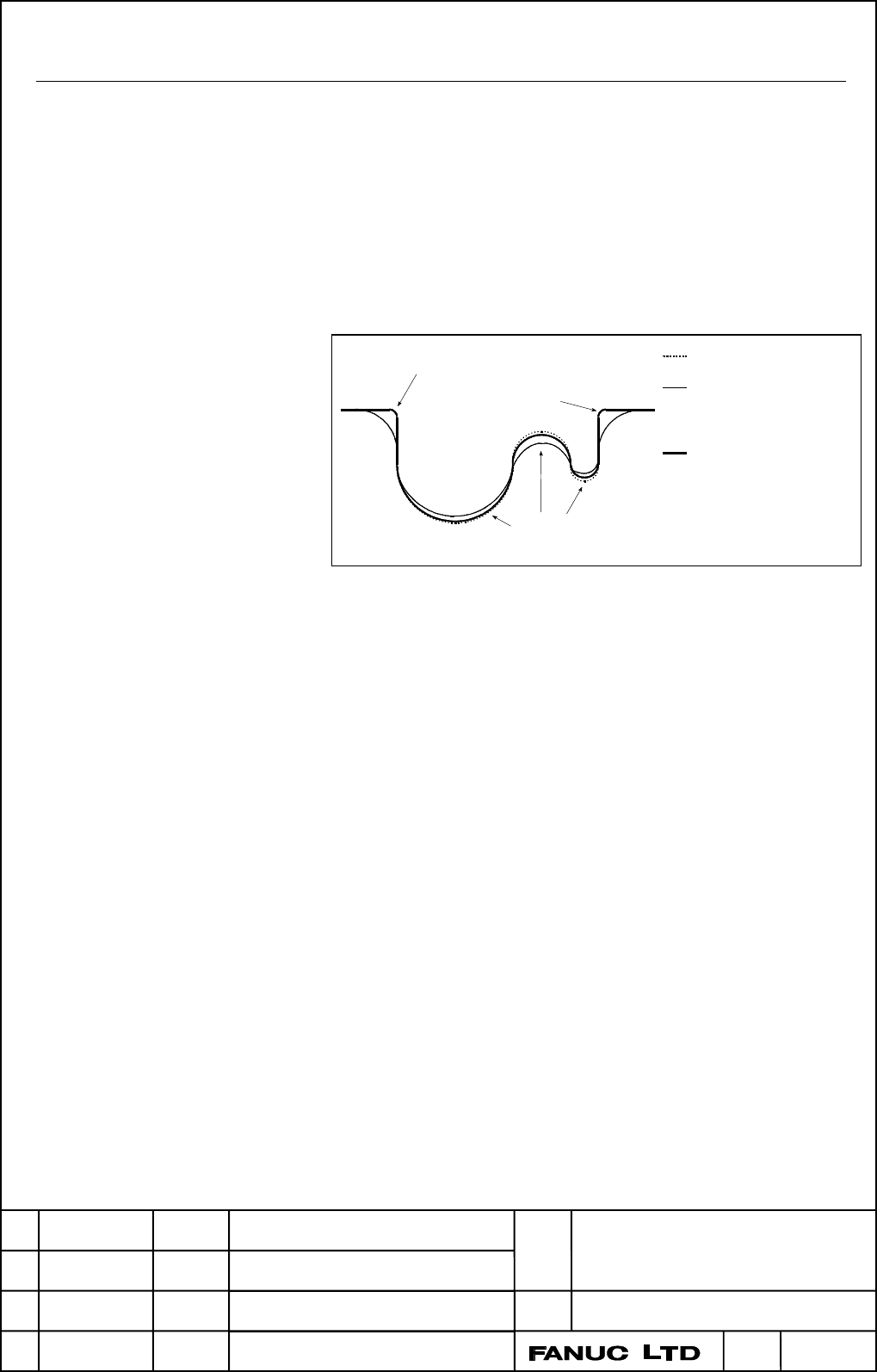

Specified tool path
Tool path assumed when
AI High Precision Contour
Control is not used
Tool path assumed when
AI High Precision Contour
Control is used
The machining error is decreased
because of deceleration with the
acceleration.
The machining error is decreased
because of the deceleration by
difference in feedrate.
Fig. 1.2 (a)
To enable this function, set the desired values for the following parameters:
Parameter No. 8410:
Permissible feedrate difference used when the feedrate is to be determined
from the feedrate difference at a corner
Parameter No. 8470:
Permissible acceleration when the feedrate is to be determined from the
acceleration
For details, see the explanation of these parameters.
