Analog Input Separate Detector Interface Unit Additional Manual Page 14

Additional Manual
Title
Sheet
Draw. No.
A
nalog input
separate detector interface unit
14/18
FANUC LTD
A-56731E-0099
Description Desig. Date Edit.
01 050714 Matsukane
14. Notes on installing
Caution
To install/remove the unit, a screwdriver has to be inserted obliquely, so
sufficient access clearance are required on both sides of the units. As a
guideline, if the front of an adjacent unit appears flush with the unit or
slightly set back, allow a clearance of about 20mm between the unit and
the adjacent unit. If the front of an adjacent unit protrudes beyond the
front of the unit, allow a clearance of about 70mm between the unit and
the adjacent unit. Also, when installing the unit near a side of the
cabinet, allow a clearance of about 70mm between the unit and the side
of the cabinet.

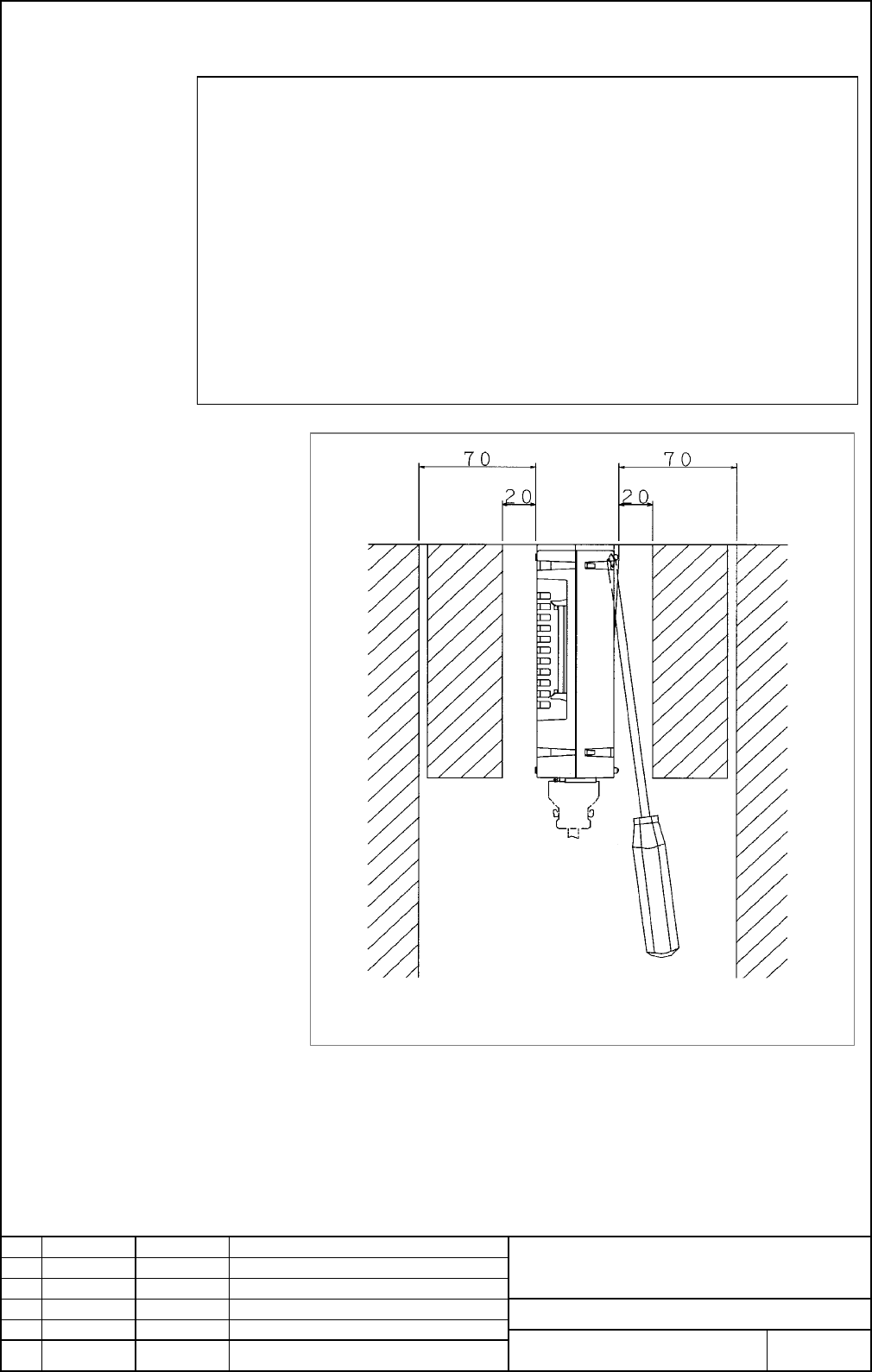

A
ccess clearance near an Analog input separate detector interface unit
