B–63833EN/03

7. SERVO INTERFACE

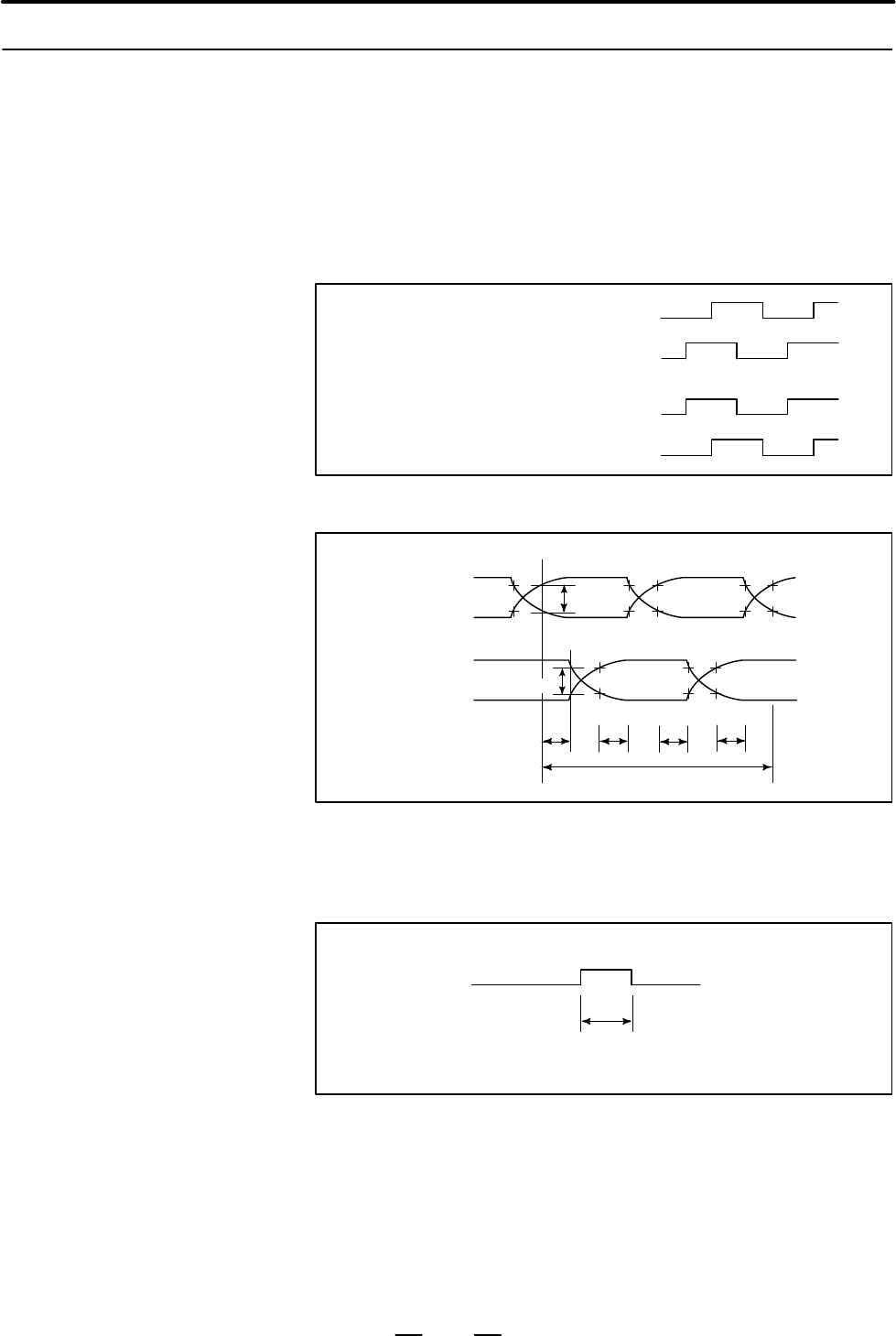

The standard of the feedback signal from the additional detector is as

shown below.

(1)A and B phase signal input

This is a method to input position information by the mutual 90 degree

phase slip of A and B phase signals.

Detection of the position is performed with the state in which the B phase

is leading taken as a shift in the plus direction, and the state in which the

A phase is leading as a shift in the minus direction.

Shift in plus direction

Shift in minus direction

A phase signal

B phase signal

A phase signal

B phase signal

(2)Phase difference and minimum repeat frequency

0.5V

PCA/*PCA

*PCA/PCA

PCB/*PCB

*PCB/PCB

0.5V

(3)Z phase signal input

For the Z phase signal (1 rotation signal), a signal width of more than 1/4

frequency of the A phase or B phase signals is necessary.

Z phase signal

Twy 1/4 frequency of A phase or B phase

7.1.8

Input Signal

Requirements
