FANUC Series 30i/31i-A Specifying Tilted Working Plane Based on the Tool Axis Direction Additional Manual Page 8

Additional Manual
Ed.
App
rov.
Page
Name No.
Date Person
Contents
Date
FANUC Series 30i
/
31i-
A
Specifying Tilted Working Plane
Based on the Tool Axis Direction
A
-79976E
Feb.03.’05
8
/
14
FANUC LTD.
Person
X
ｃ
Y
ｃ
Z
ｃ
X
Y
Z
X
Y
Z

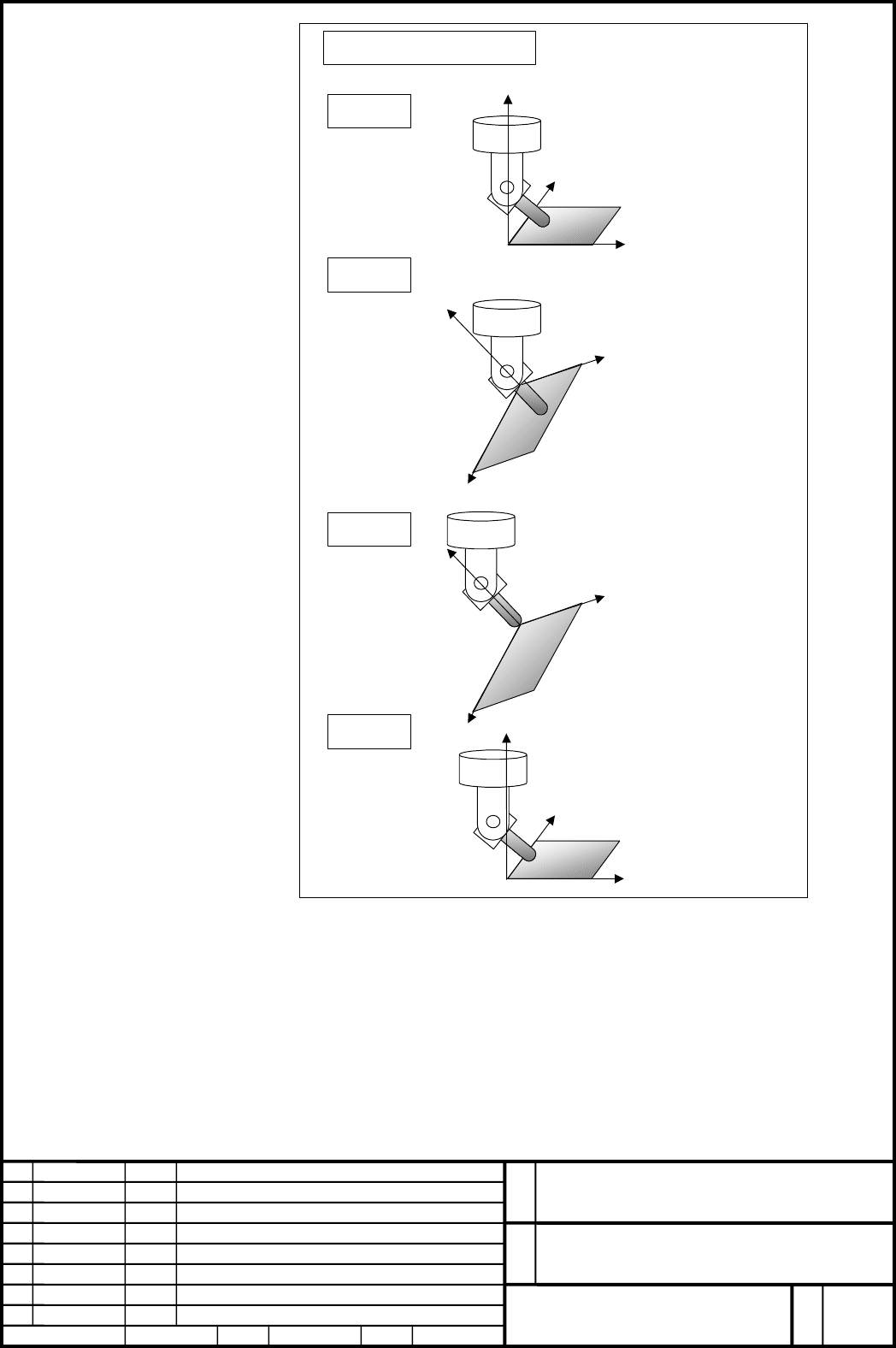

Machine operation by sample program 1
N3 command
Workpiece coorditate system
X- Y- Z
Feat ur e coor di nat e syst em Xc-Yc-Zc
N4 command
N5 command
N7 command
Workpiece coorditate system
X- Y- Z
N3 block: Tilts the tool.
N4 block: Sets a feature coordinate system where the tool axis direction is the Z-
axis direction and the tool center point is placed at the origen.
N5 block: Performs tool length compensation.
The tool centre point moves to the origin of the feature coordinate
system.
N7 block: Cancels the feature coordinate system to return to the workpiece
coordinate system.
