SERIES 21-210i MODEL A Maintenance manual Page 160

Maintenance manual
B−63085EN/02
2. HARDWARE
141

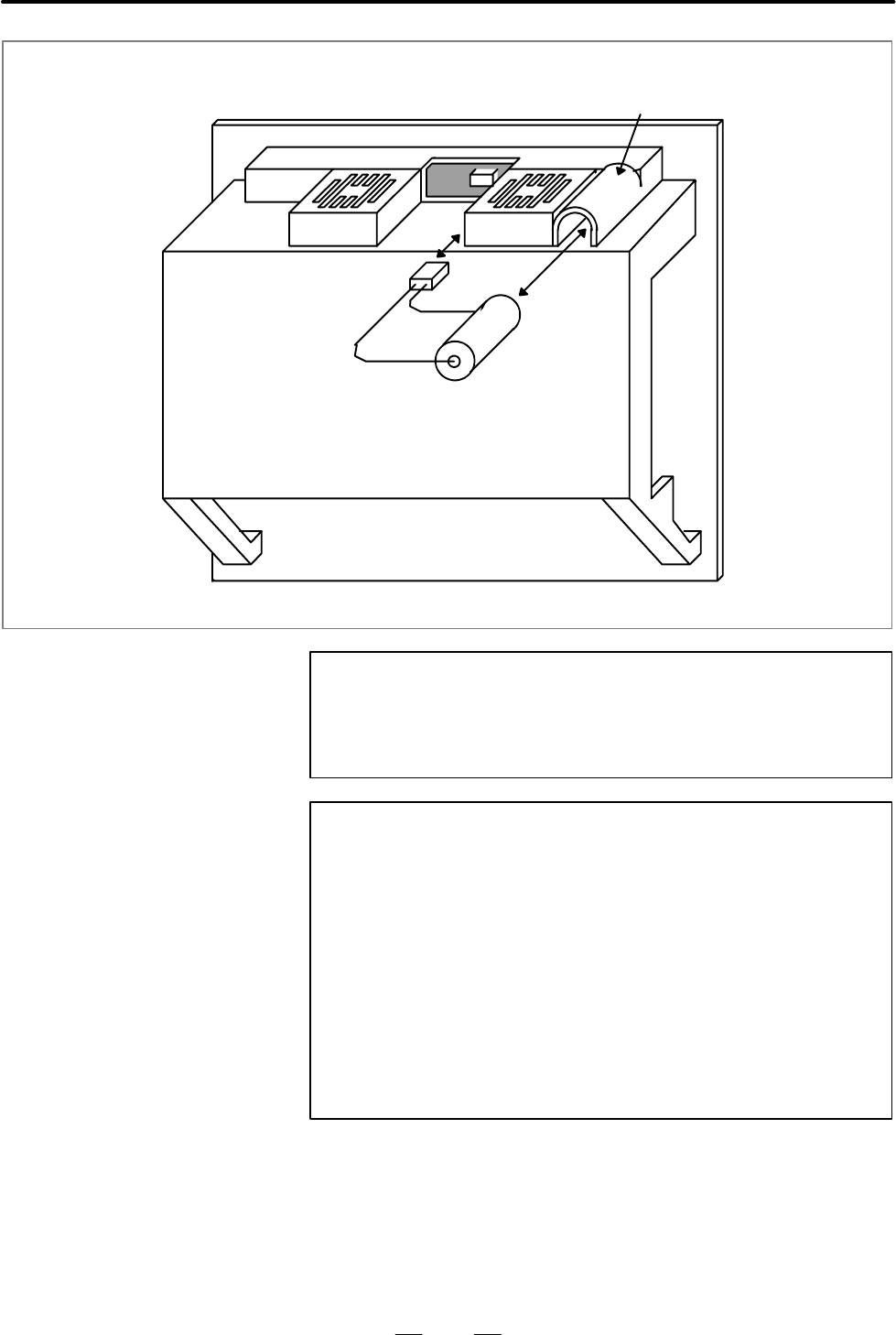

Battery case
Connector
Lithium battery
A02B−0200−K102
WARNING
Using other than the recommended battery may result in the
battery exploding. Replace the battery only with the
specified battery (A02B−0200−K102).
CAUTION
Steps 1) to 3) should be completed within 30 minutes (or
within 5 minutes for the 210i with the PC function). Do not
leave the control unit without a battery for any longer than
the specified period. Otherwise, the contents of memory
may be lost.
If steps 1) to 3) may not be completed within 30 minutes,
save all contents of the CMOS memory to the memory card
beforehand. Thus, if the contents of the CMOS memory are
lost, the contents can be restored easily.
For the method of operation, refer to the maintenance
manual.
