SERIES 21-210i MODEL A Maintenance manual Page 48

Maintenance manual
B−63085EN/02
1. DISPLAY AND OPERATION
29

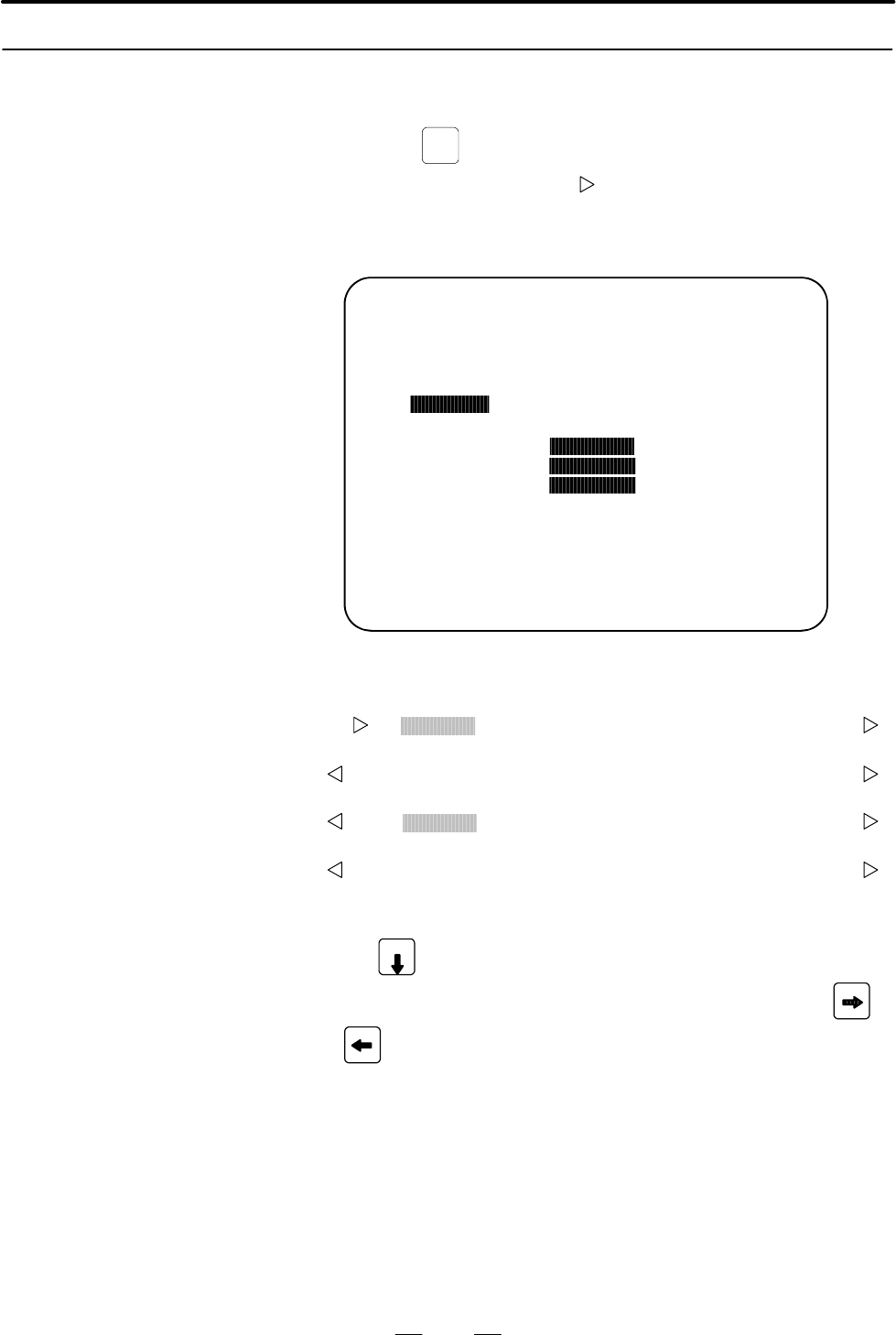

(1)Press the
SYSTEM
function key.
(2)Press the continue menu key [
]. The [OPEHIS] [(OPRT)] soft key
are displayed.
(3)Press the [OPEHIS] soft key twice. The operation history screen is
displayed.
OPERATION HISTORY O1234 N12345
Page : 123
No.DATA No.DATA No.DATA
01 97/06/03 11 F0000.7 21 F0001.0¯
02 08:40:00 12 F0000.5 22 <POS>
03 <DELETE> 13 F0001.0 23 <PROG>
04 F0000.6 14 F0000.5¯ 24 <RESET>
05 MEM 15 P/S0010 25 EDIT
06 G0009.0 16 97/06/03 26 O
07 G0009.1 17 09:27:49 27 1
08 G0009.2 18 <PROG> 28 2
09 ST 19 <RESET> 29 3
10 ST¯ 20 F0000.7¯ 30 4
EDIT **** *** *** 08:20:52
[ TOP ][ BOTTOM ][ ][ ][PG.SRH]
On the operation history screen, the soft keys are configured as shown
below:
Þ [
][PARAM ] [DGNOS] [PMC] [SYSTEM] [(OPE)][ ]
⇓push
[
] [W.DGNS] [ ] [ ] [OPEHIS] [(OPE)][ ]
⇓ push
[
][OPEHIS ] [SG−SEL] [ ] [ ] [(OPE)][ ]
⇓push
[
] [ TOP ] [BOTTOM] [ ] [ ] [PG.SRH] [ ]
(4)To display the next part of the operation history, press the page down
key
PAGE
. The next page is displayed.
To display the interface between two pages, press cursor key
or
. The screen is scrolled by one row. On a 12 soft keys type screen,
pressing the cursor key scrolls the screen by half a page.
These soft keys can also be used:
1) Pressing the [TOP] soft key displays the first page (oldest data).
2) Pressing the [BOTTOM] soft key displays the last page (latest
data).
3) Pressing the [PG.SRH] soft key displays a specified page.
Example) By entering 50 then pressing the [PG.SRH] key, page 50 is
displayed.
1.6.2
Screen Display
D Displaying the operation
history
Previous page
Next page
