5.TOTAL CONNECTION DIAGRAM A-72562EN-027
- 18 -

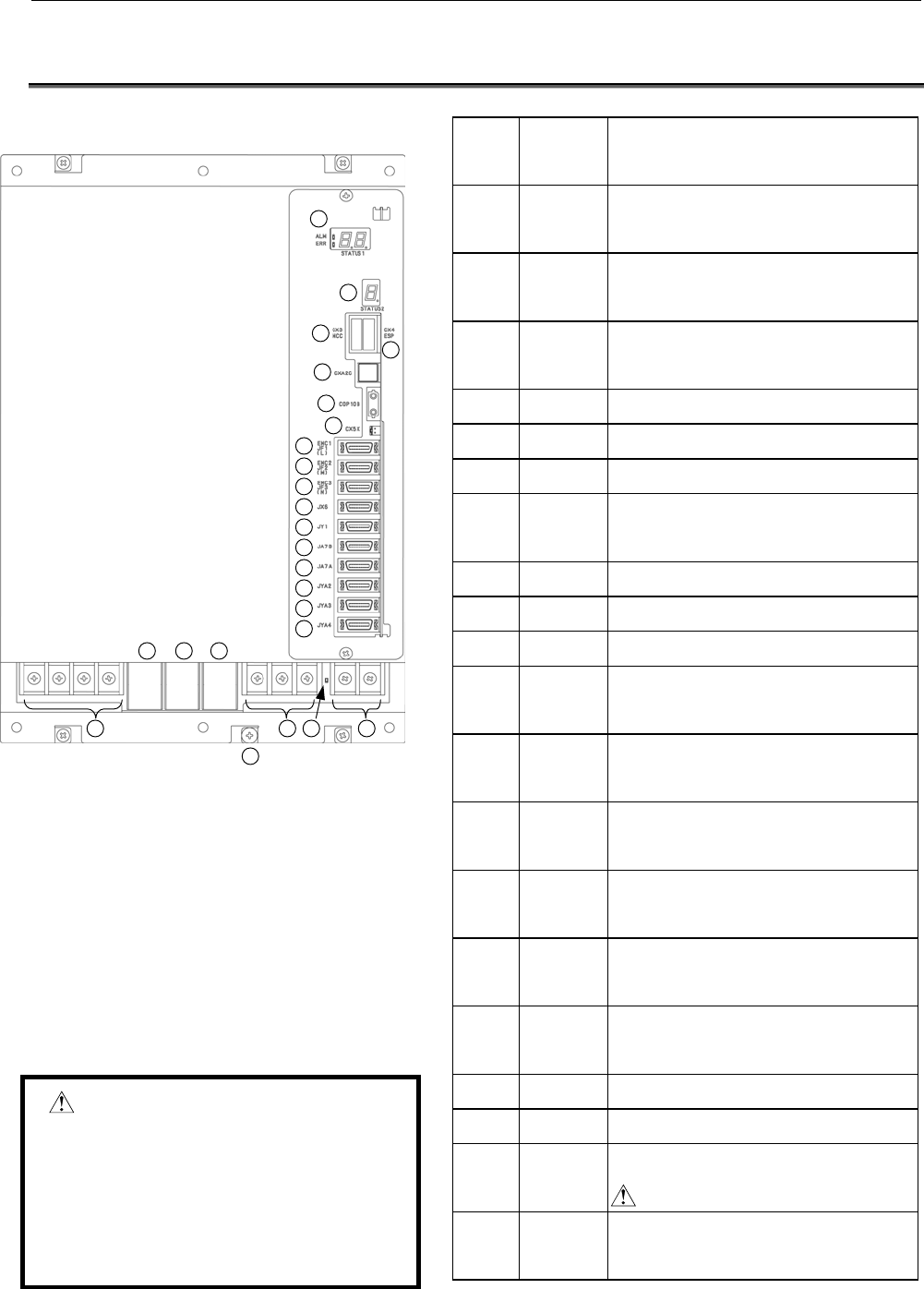

5.2 LOCATION of CONECTORS
Numb
er
Names Remarks
1 STATUS
1
Status of spindle
2 STATUS
2
Status of servo
3 CX3 Connector for main power MCC
control signal
4 CX4 Connector for ESP signal
5 CXA2C DC24V input connector
6 COP10B FSSB optical input connector
7 CX5X Battery connector for the SVM
built-in-type absolute Pulsecoder
8 JF1 Pulsecoder connector : L axis
9 JF2 Pulsecoder connector : M axis
10 JF3 Pulsecoder connector : N axis
11 JX6 Connector for Power failure
backup module
12 JY1 Connector for load meter and
speedometer and analog override
13 JA7B Input connector for electric serial
interface
14 JA7A Output connector for electric
serial interface
15 JYA2 Connector for spindle sensor for
motor (Mi or MZi) or thermistor
16 JYA3 Connector for Positioncoder or
external single rotation signal
17 JYA4 (not be used)
18 TB3 DC link terminal block
19 Charge dsplay of DC LINK
WARNING
20 TB1 Terminal for main power supply
AC200V
18 19 20
21
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
22
24
23
25
WARNING
Do not touch module components or
connected cables while the LED “19”
is lit. There is a danger of electric
shock.
