1. General
1.1. Overview
This manual describes how to use Spindle Backlash Acceleration function.
1.2. Remarks
・ This function is valid in advanced feedforward of Cs contouring control mode.
・ Following functions cannot be used with this function simultaneously
(1) Sub-spindle of Spindle switching control
(2) Spindle EGB
2. Series and edition of software
Spindle software
Series Edition Remark
9D50 O(15) and subsequent editions
For FANUC Series 0i, 16i, 18i, 15i, 21i (induction motor)
9D53 G(07) and subsequent editions
For FANUC Series 0i, 16i, 18i, 15i, 21i (synchronous motor)
9D70 F(06) and subsequent editions
For FANUC Series 30i, 31i , 32i
(both induction & synchronous motor )

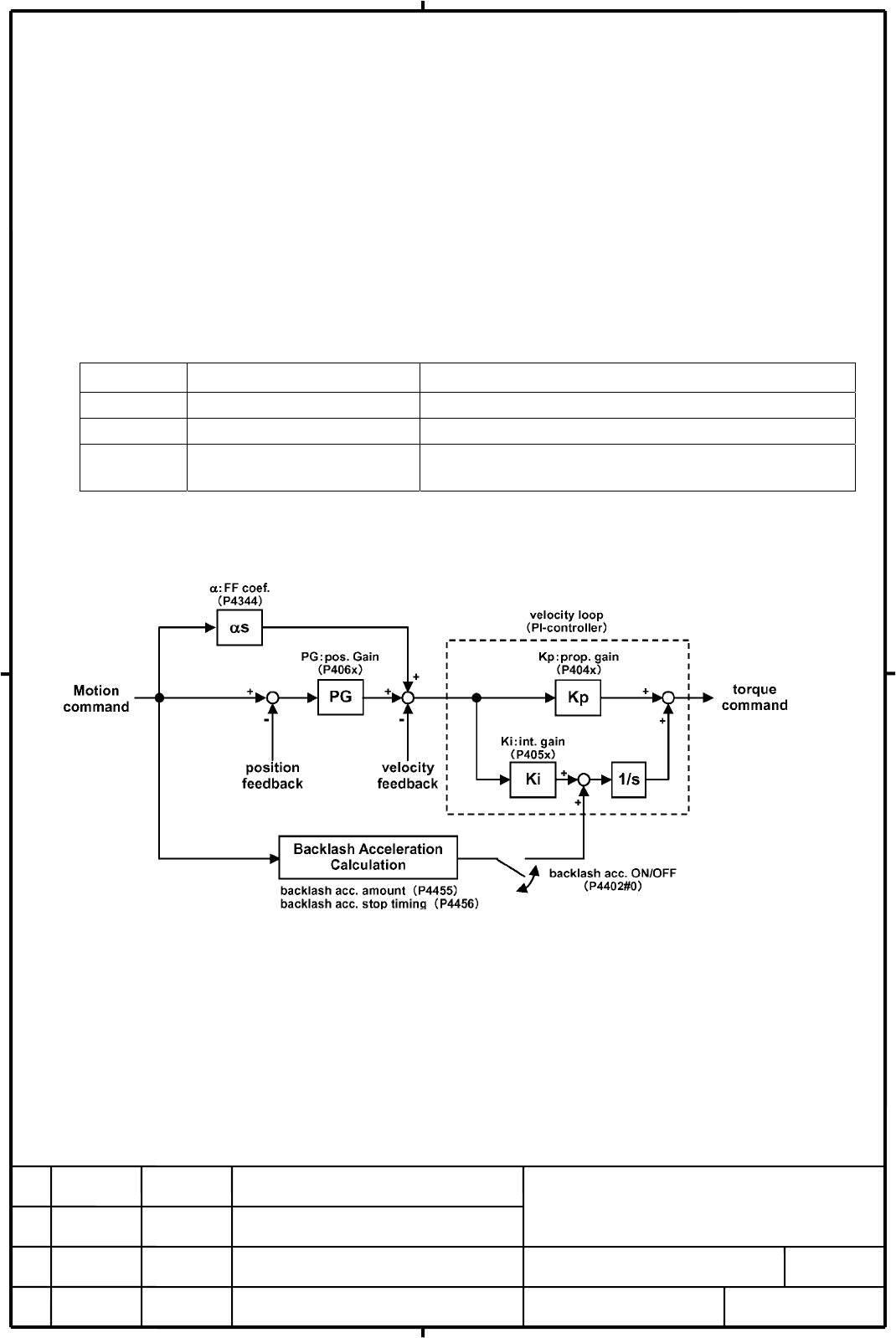

3. Block diagram
