Spindle Amplifier Additional Manual Page 4

Additional Manual
4/7
Design.
Date Ed.
A
u
g
./25/05
S
HEET
DRAW. No.
C
U
S
T.
TITLE
M. Niwa
Newly
Spindle Amplifier αi series
Backlash Acceleration Description
A
-53866E-0468
FANUC LTD
01
5. Tuning example
5.1. CNC Program
Prepare following program that draw arc (eccentric circle) in polar coordinate interpolation.
G90 ← Absolute
G54 ← Select workpiece coordinate 1
G00 X15. C0. ← Move to start point
G5.1 Q1 ← AI Contour Control ON
G12.1 ← Polar coordinate interpolation ON
G04 X5. ← Dwell. Press “Origin” button(Refer to section 5.3).
G02 I20. J0 ← Draw circle
G13.1 ← Polar coordinate interpolation OFF
G5.1 Q0 ← AI Contour Control OFF
M99 ← End of program

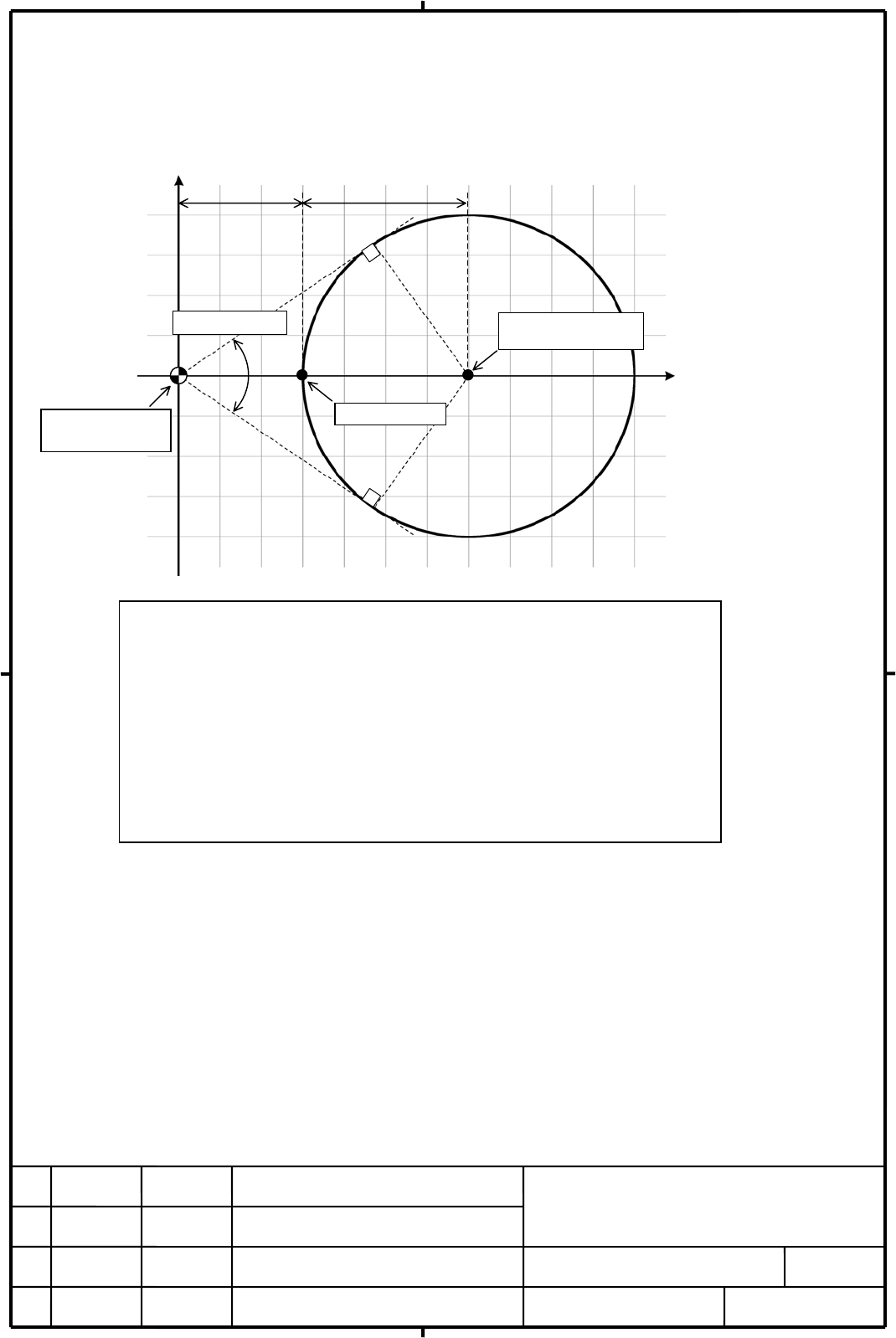

15mm 20mm
Imaginary C-axis
X-axis
C-axis move area
Center of circle (35, 0)
Radius of circle 20mm
Start
p
oint
(
15, 0
)
Origin of workpiece
coordinate system 1
