B-64164EN/01 SETTING 1.SETTING OF FL-net FUNCTION
- 95 -
1.2.3 Log Information Management Table
This screen provides network log information of the local node.
Procedure
1 Press the [LOG] soft key. The LOG screen (Screen 1-6
FL-net Log Screen) then appears.

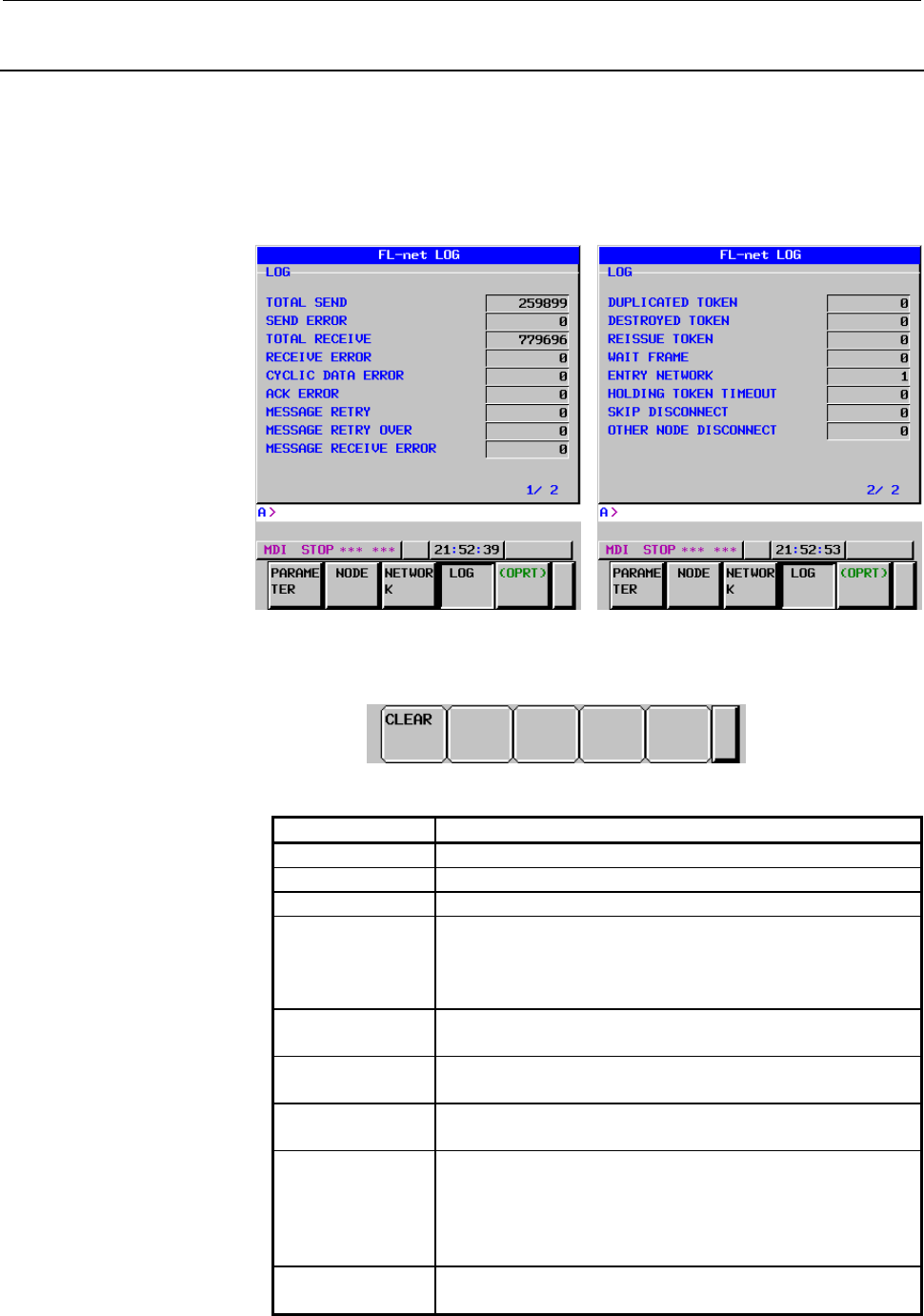

Screen 1-6 FL-net Log Screen
2 As necessary, press the [(OPRT)] soft key, then use the following
soft key:
Display item
Item Description
TOTAL SEND Indicates the number of transmitted frames.
SEND ERROR Indicates the number of times a transmission error occurred.
TOTAL RECEIVE Indicates the number of received frames.
RECEIVE ERROR Indicates the number of times a reception error occurred.
The reception of a frame not complying with the FL-net
communication standards is also counted as a reception
error.
CYCLE DATA
ERROR
Indicates the number of times an error occurred during cyclic
data transmission.
ACK ERROR Indicates the number of times an ACK error occurred during
message transmission.
MESSAGE
RETRY
Indicates the number of times a message was retransmitted.
MESSAGE
RETRY OVER
Indicates the number of times the message retransmission
limit was exceeded.
A message is retransmitted up to three times in one message
transmission operation. A failure in normal message
transmission after three retransmissions is counted.
MESSAGE
RECEIVE ERROR
Indicates the number of times a reception error occurred
during message transmission.
