Changing of the European Specification Main Breaker for FANUC LASER C2000-E & C4000-E Additional Manual Page 2
Additional Manual
EDIT.
FANUC LTD
SHEET
DRAW. NO.
CUST.
TITLE
002/3
DESCRIPTIONDESIG.DATE
01 05.07.06
Koba
y
ashi
N
ewl
y
Changing of the European specification
main breaker for FANUC LASER
C2000-E & C4000-E
A-81053E-110

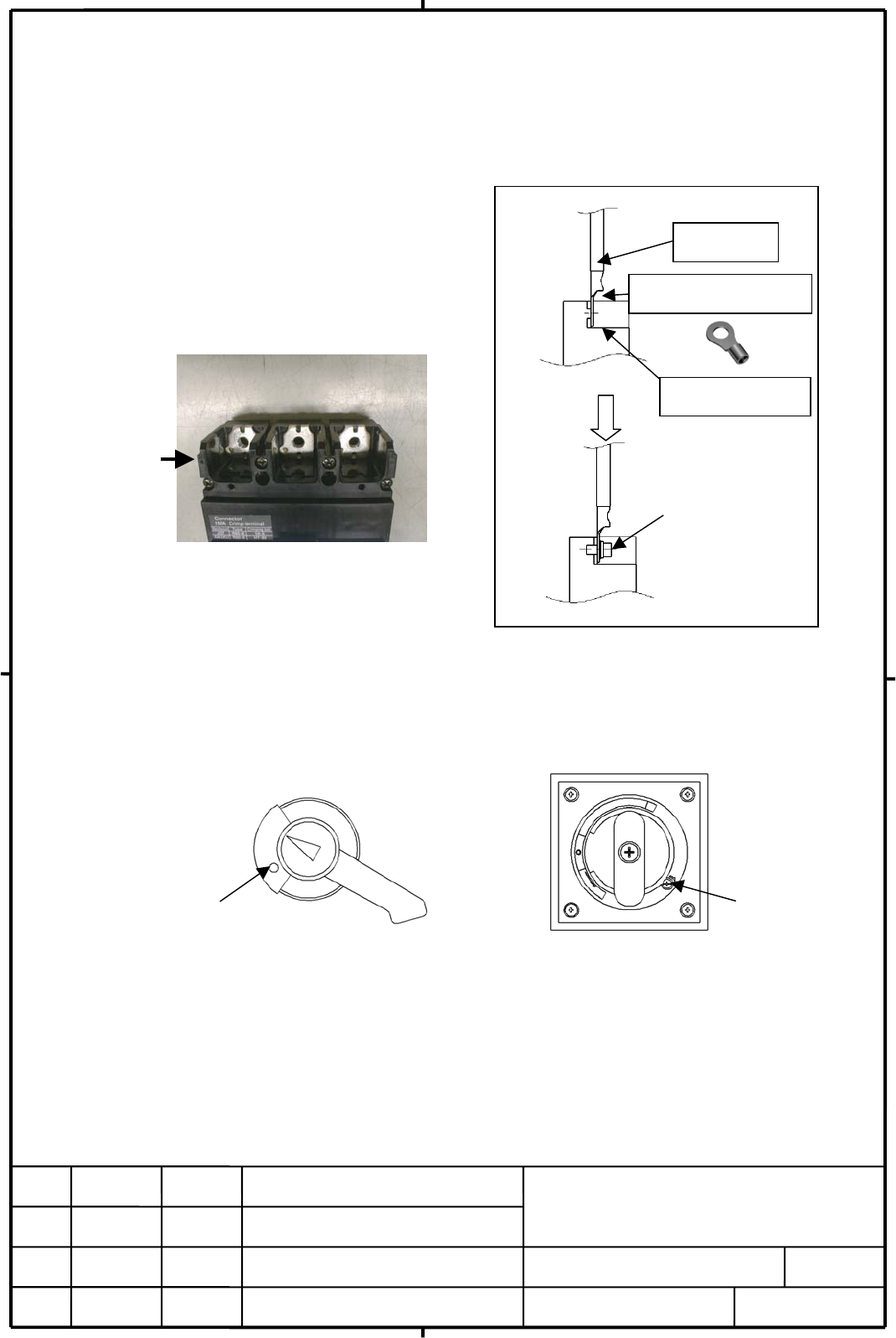

3-2. Changing of terminal for cable connection（All models of EUR specification are the Screw
Terminal specification as well as a domestic specification. ）
Please connect cable to use the recommended solderless terminal for each breaker, because it
changes the specification from a past Box Terminal to the Screw Terminal.
・Cable connection method for Screw Terminal（new specification）
3-3. Changing of the breaker handle
The breaker handle changes with the breaker, and the outside view is shown in the figure below.
Before(Lever type) After(V type)
3-4. Changing of the sticker
Cable
Screw Terminal
Solderless Terminal
How to connect the cable(A View)
A
View
Connection by
A
ttached scre
w
Door
Interlock
Release
Door
Interlock
Release
