FANUC Series 16i-MB Additional Manual Page 17
Additional Manual
19697 Reference tool axis direction
[Data type] Byte
[Valid data range] 0 to 3
Set the tool axis direction in the machine coordinate system when the rotation
axes for controlling the tool are all at 0 degrees.Also, set the tool axis direction
in the machine coordinate system in a mechanism in which only the rotation
axes for controlling the table are present (there is no rotation axis for
controlling the tool).1: Positive X-axis direction2: Positive Y-axis direction3:
Positive Z-axis directionWhen the reference tool axis direction is neither the X-,
Y-, nor Z-axis direction, set the reference direction in this parameter, then set
appropriate angles as the reference angle RA and reference angle RB
(parameter No. 19698 and 19699).

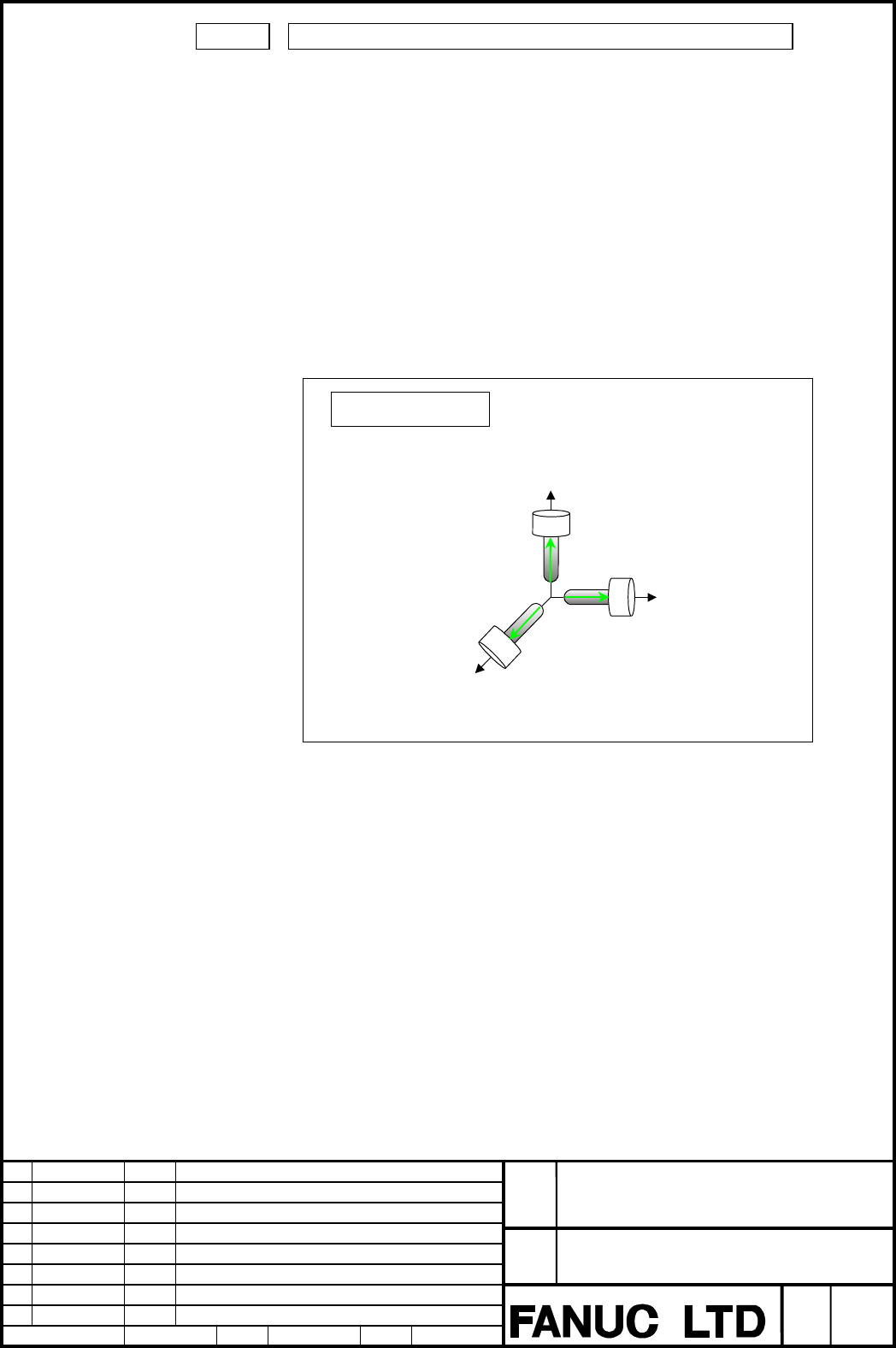

Reference tool axis direction
X
Y
Z
Tool axis direction is positive X-axis direction.
Tool axis direction is positive Y-axis direction.
Tool axis direction is positive Z-axis direction.
A-79097E
Edit
Apprv. Desig.
Sheet
Title
Draw
No.
Date
Design
Description
Date
FANUC Series 16i–MB, 18i–MB5
Thermal growth compensation
along tool vector Specifications
Jul.11.2003
T.Horie H.Kouzai
16/17
