Series 0i-PC Operators manual Page 558

Operators manual
OPERATION10. CREATING PROGRAMS
B–64154EN/01
534

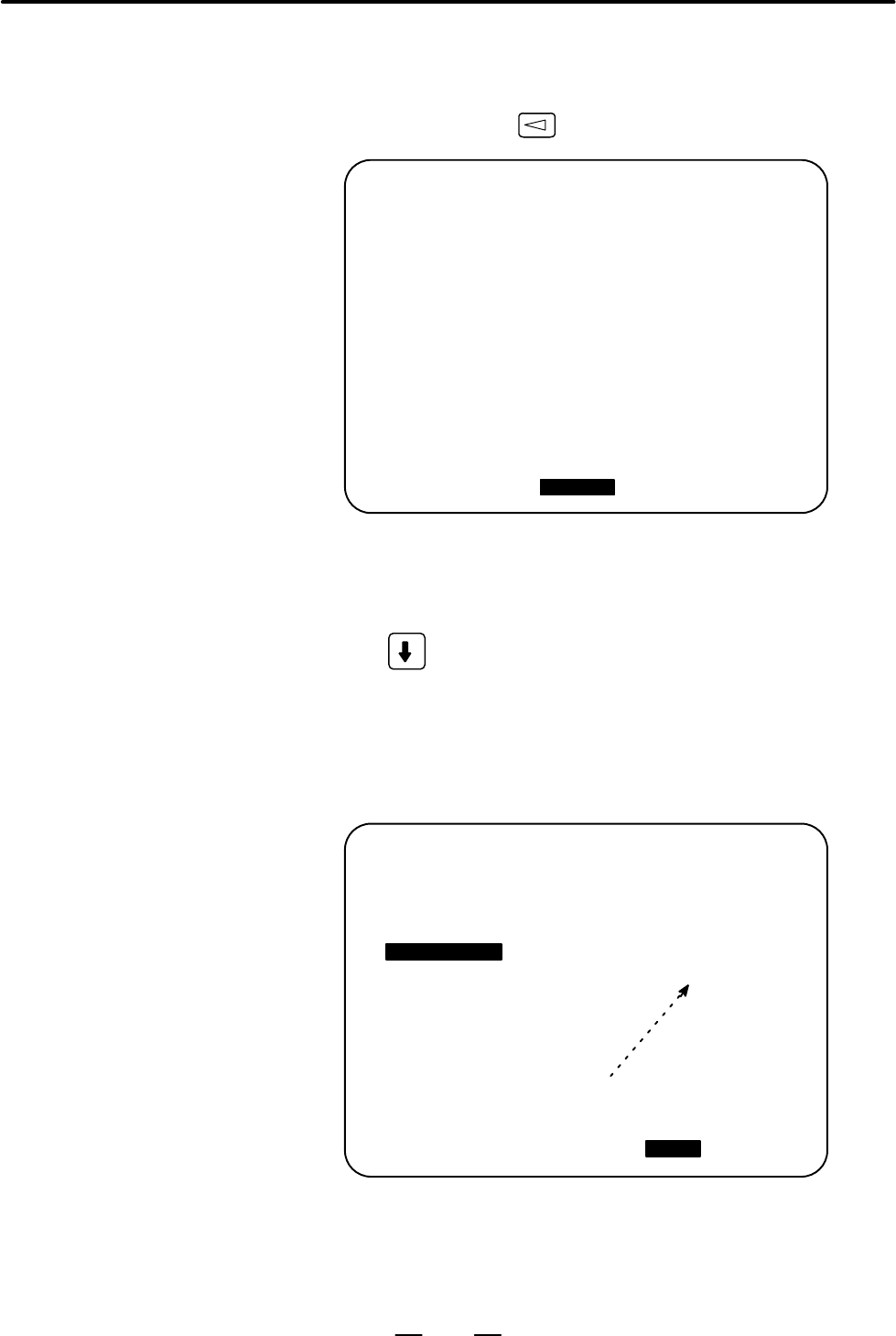

4 Press the [C.A.P] soft key. The following G code menu is displayed
on the screen.
If soft keys different from those shown in step 2 are displayed, press
the menu return key
to display the correct soft keys.
PROGRAM O0010 N00000
G00 : POSITIONING
G01 : LINEAR IPL.
G02 : CIRCULAR IPL. CW
G03 : CIRCULAR IPL. CCW
G04 : DWELL
G09 : EXACT STOP CHECK
G10 : OFFSET VALUE SETTING (O)
G20 : INCH (O)
G21 : METRIC
G22 : STORED STROKE CHECK ON (O)
G23 : STORED STROKE CHECK OFF
G26 : BOLT HOLE CIRCLE
)_
EDIT **** *** *** 11:54:42
[ PRGRM ][ ][ G.MENU ][ BLOCK ][ ]
5 Key in the G code corresponding to a function to be programmed.
When the positioning function is desired, for example, the G code
menu lists the function with the G code G00. So key in G00. If the
screen does not indicate a function to be programmed, press the page
key
to display the next G code menu screen. Repeat this
operation until a desired function appears. If a desired function is not
a G code, key in no data.
6 Press the soft key
[BLOCK] to display a detailed screen for a keyed in
G code. The figure below shows an example of detailed screen for
G00.
PROGRAM O0010 N00200
G00 : POSITIONING
G00 G G G
X 100. Y 50.
C
T (x,y,c)
M
S
D
;
EDIT **** *** *** 11:56:22
[ PRGRM ][ ][ G.MENU ][ BLOCK ][ (OPRT) ]
