Small Machine Operators Panel (M/T) - Connection Manual Additional Manual Page 23

Additional Manual

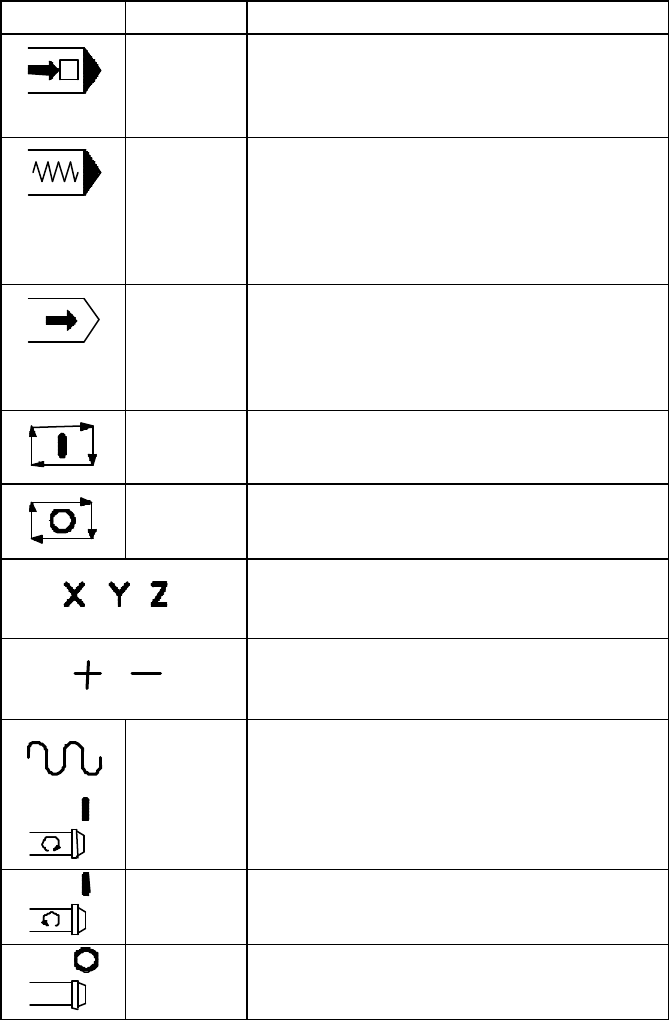

Symbol English
Meaning of key
RESTART
Program restart; A program may be restart at a
block by specifying the sequence number of the
block, after automatic operation is stopped
because of a broken tool or for holidays.
DRY
RUN
Dry run; Sets the axis feed rate to the jog feed
rate instead of a programmed feed rate when
automatic operation is performed by setting this
button to on. This function is used to check only
the movement of the tool when no work piece is
mounted.
MC
LOCK
Machine lock; Updates only position display on
the screen without making any axis movement,
when automatic operation is performed by
setting this button to on. This function is used to
check a program.
CYCLE
START
Cycle start; Start automatic operation.
CYCLE
STOP
Cycle stop; Stops automatic operation.
Manual feed axis selection; Axes are selected,
when these buttons are set to on in the jog feed
mode or step feed mode.
Manual feed operation; Performs movement
along selected axes when these buttons are set
on in the jog feed mode or step feed mode.
RAPID
Rapid; Performs jog feed at rapid traverse rate
when this button is set to on.
SPDL
CW
Positive spindle rotation direction; Rotates the
spindle motor in the positive direction.
SPDL
CCW
Negative spindle rotation direction; Rotates the
spindle motor in the negative direction.
SPDL
STOP
Spindle sto p; Stops the spindle motor rotation.
