Small Machine Operators Panel (M/T) - Connection Manual Additional Manual Page 7
Additional Manual
EDIT DATE DESIG.
Small Machine operator’s panel
connection manual
TITLE
DESCRIPTION
DRAW.NO.
A-83122E
SHEET
CUST
7
/

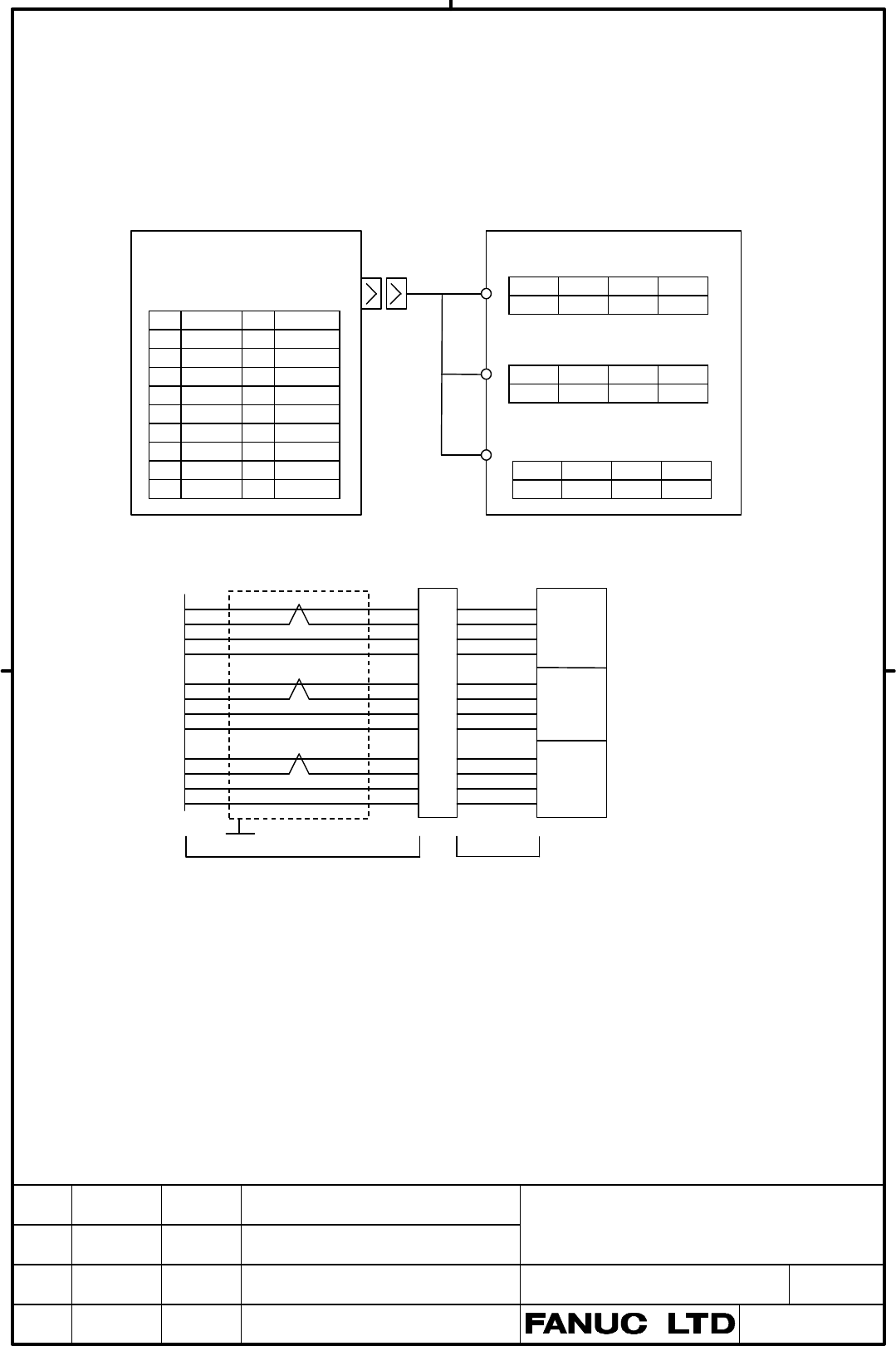

3.5 Manual Pulse Generator Connection
An example in which three manual pulse generators are connected to Small Machine
Operator’s Panel is shown below. The manual pulse generator can be connected only for the i
series CNC.
Cable Connection Terminal block Manual pulse generators
Recommended wire material: A66L-0001-0286 (#20AWGx6+#24AWGx3pairs)
Recommended connector: A02B-0120-K303 (Including the following connector and case)
(Connector: HIROSE Electric Co., Ltd. FI40-2015S)
(Case: HIROSE Electric Co., Ltd. FI40-20-CV5)
Recommended cables: A02B-0120-K841 (7m) (for connecting MPG 3 units)
A02B-0120-K848 (7m) (for connecting MPG 2 units)
A02B-0120-K847 (7m) (for connecting MPG 1 unit)
(These cables don’t include the wire shown in the above figure.)
NOTE
The number of connectable manual pulse generators depends on the type and option
configuration.
1 HA1 11
2 HB1 12 0V
3 HA2 13
4 HB2 14 0V
5 HA3 15
6 HB3 16 0V
7 17
8 18 +5V
9 +5V 19
10 20 +5V
3 4 5 6
+5V 0V HA1 HB1
3 4 5 6
+5V 0V HA2 HB2
3 4 5 6
+5V 0V HA3 HB3
Small Machine
Operator’s Panel
JA3
(PCR-E20MDK-SL-A)
Manual pulse generator # 1
(M3 screw terminal)
Manual pulse generator # 2
(M3 screw terminal)
Manual pulse generator # 3
(M3 screw terminal)
Manual pulse generators
5
6
3
4
5
6
3
4
5
6
3
4
HA1
HB1
+5V
0V
HA2
HB2
+5V
0V
HA3
HB3
+5V
0V
1
2
9
12
3
4
18
14
5
6
20
16
HA1
HB1
+5V
0V
HA2
HB2
+5V
0V
HA3
HB3
+5V
0V
7Red
7White
5Red
2Black
8Red
8Black
4Red
3Black
9Black
9White
6Red
1Black
HA1
HB1
+5V
0V
HA2
HB2
+5V
0V
HA3
HB3
+5V
0V
Cable Wiring
Groun
d
