Dust collection unit for FANUC LASER C2000E, C4000E Additional Manual Page 3
Additional Manual
03 20030222 OHTA Addition of C2000-E
02 20030204 OHTA Addition of “6.Order pasts”
Funakubo
01 20021009 OHTA 1st edition
Funakubo
DRAW. NO.
A-81053E-035
CUST.
EDIT DATE DESIG. DESCRIPTION APPRO.
FANUC LTD
SHEET
2/5
TITLE:
Dusut collection unit
for FANUC LASER C4000-MODEL E
and C2000-MODEL E

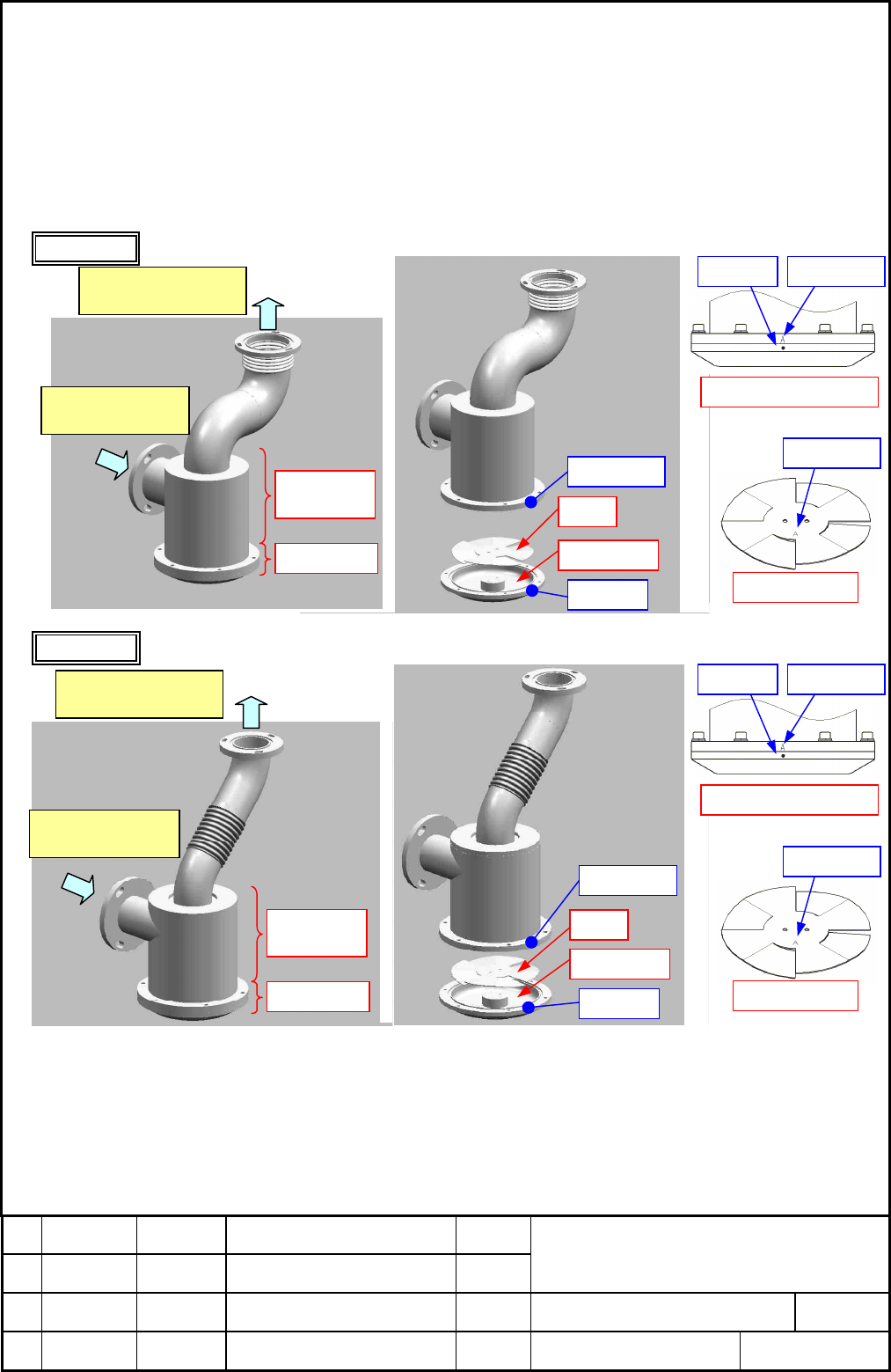

3. Structure
The dust box is arranged under the gas flow circuit, and dust is collected here. It is not necessary
to maintain the dust box usually. However, please remove the dust box and the slit as shown in the
figure below, and clean the inside of the dust box when a large amout of dust is generated by the
trouble.
Please do not replace the slit on the maintenace side with the slit on non-maintenace side (Shape
is different). There is marking of ‘A’ on the slit of maintenance side, marking of ‘B’ on the slit of
non-maintenance side. There is a punch on the dust box side and same marking as the slit on the
gas flow circuit side. Please adjust positions and install this punch and marking.
Detail of assembl
y
Punch Markin
g
C4000-E
Dust box
Gas flo
w
circuit
IN
(
Turbo blower
)
OUT
(
Heat exchan
g
er
)
Dust box
Slit
Punch
Markin
g
Markin
g
Ditail of slit
C2000-E
Ditail of slit
Markin
g
Detail of assembl
y
Punch Markin
g
Dust box
Gas flo
w
circuit
IN
(
Turbo blower
)
OUT
(
Heat exchan
g
er
)
Punch
Slit
Dust box
Markin
g
