Dust collection unit for FANUC LASER C2000E, C4000E Additional Manual Page 4
Additional Manual
03 20030222 OHTA Addition of C2000-E
02 20030204 OHTA Addition of “6.Order pasts”
Funakubo
01 20021009 OHTA 1st edition
Funakubo
DRAW. NO.
A-81053E-035
CUST.
EDIT DATE DESIG. DESCRIPTION APPRO.
FANUC LTD
SHEET
3/5
TITLE:
Dusut collection unit
for FANUC LASER C4000-MODEL E
and C2000-MODEL E
4. Change in tube pressure for oscillation
In C2000-E, to prevent the power decrease because of the dust collection unit addition, tube
pressure for oscillation was changed from 66Torr to 68Torr. The changed parameters are as follows.
PRM15242（Tube pressure for oscillation 50Hz） 660→ 680
PRM15243（Tube pressure for oscillation 60Hz） 660→ 680
PRM15324（Gas pressure setting for normal compensation 50Hz） 660→ 680
PRM15325（Gas pressure setting for normal compensation 60Hz） 660→ 680
PRM15330（Gas pressure setting for aging 50Hz） 560→ 580
PRM15331（Gas pressure setting for aging 60Hz） 560→ 580

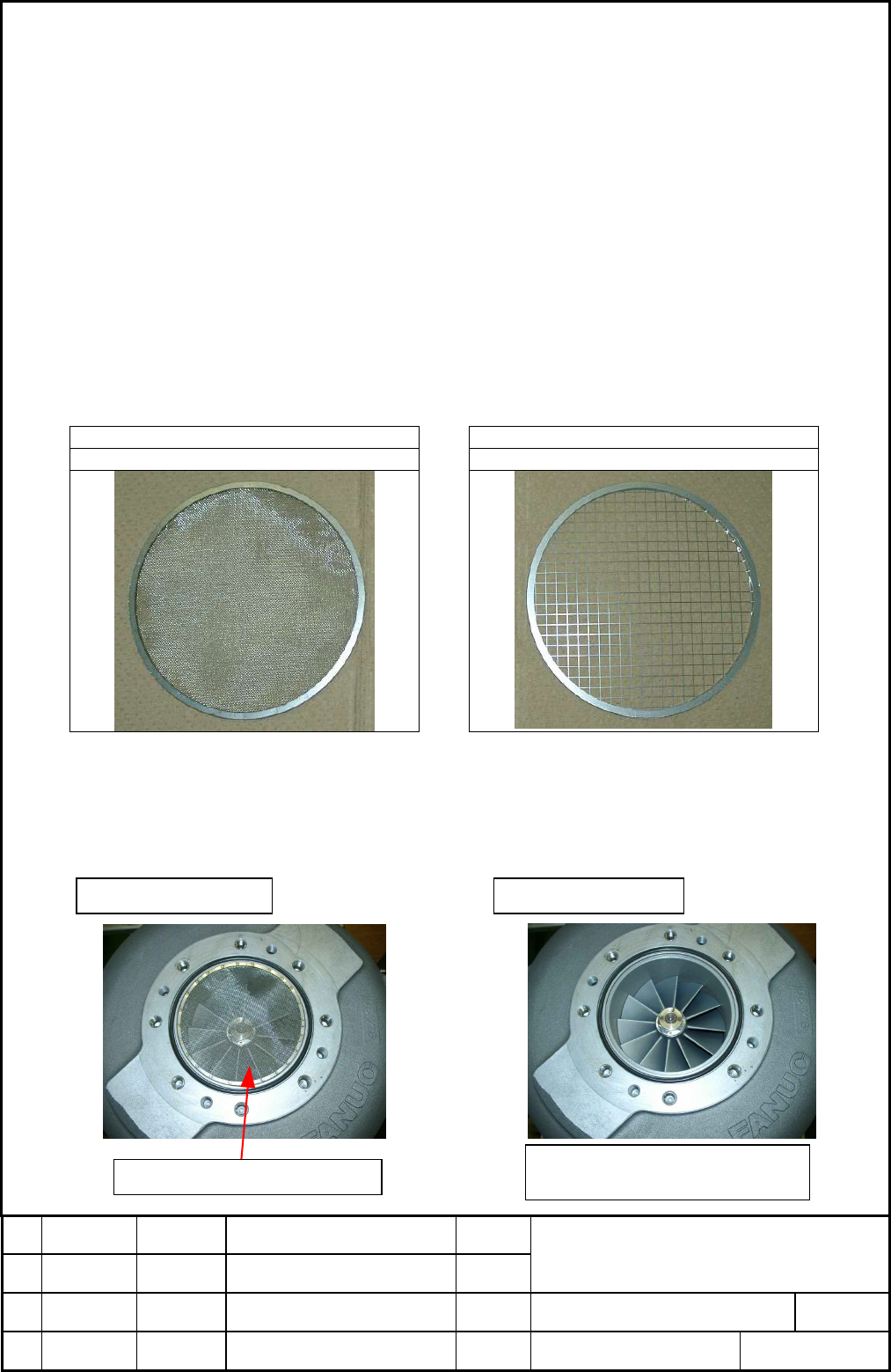

5. Turbo blower filter
(1) Specification change
To prevent the power decrease because of the dust collection unit addition, the mesh of the filter
of the turbo blower was enlarged in C4000-E and C2000-E.
The specification is as follows.
Before the change After the change
A290-4500-V019 (Mesh size 0.4mm) A290-4500-V031(Mesh size 4mm)
(2) Exclusion form the turbo blower
To have the interchangeability of the turbo blower, the new filter(A290-4500-V031) was excluded
from the turbo blower though the past filter(A290-4500-V019) was included in the turbo blower.
Therefor, the turbo blower filter has not placed to the turbo blower to which the unit is shipped. This
change was done in all turbo blowers.
Past turbo blowe
r
New turbo blowe
r
Past filter A290-4500-V019
The filter is not appended to the
turbo blower.
