- Page 1TECHNICAL REPORT (MANUAL) NO. TMN 03/091E Date 15.Oct.2003 General Manager of CNC Laboratory Symbol & English type key MDI for Series 0i/0i-Mate MODEL B １．Communicate this report to: Your information only GE Fanuc-N, GE Fanuc-E FANUC Robotics CINCINNATI MILACRON Machine tool builder Sales agency End
- Page 2Symbol & English Key MDI for Series 0i /0i-Mate MODEL B TITLE Symbol & English Key MDI for Series 0i/0i-Mate MODEL B DRAW. NO. CUST. 01 031015 Okita A-80946E SHEET EDIT. DATE DESIG. DESCRIPTION FANUC LTD 001/4
- Page 3１．Overview This report describes information of symbol & English key type MDI unit for Series 0i/0i-Mate Model B. ２．Specification No. 9"monochrome CRT/MDI unit A02B-0299-C041#MB(M Series) A02B-0299-C041#TB(T Series) 7.2"monochromeLCD/MDI unit A02B-0299-C071#MB(Graphic display, M Series) A02B-0299-C0

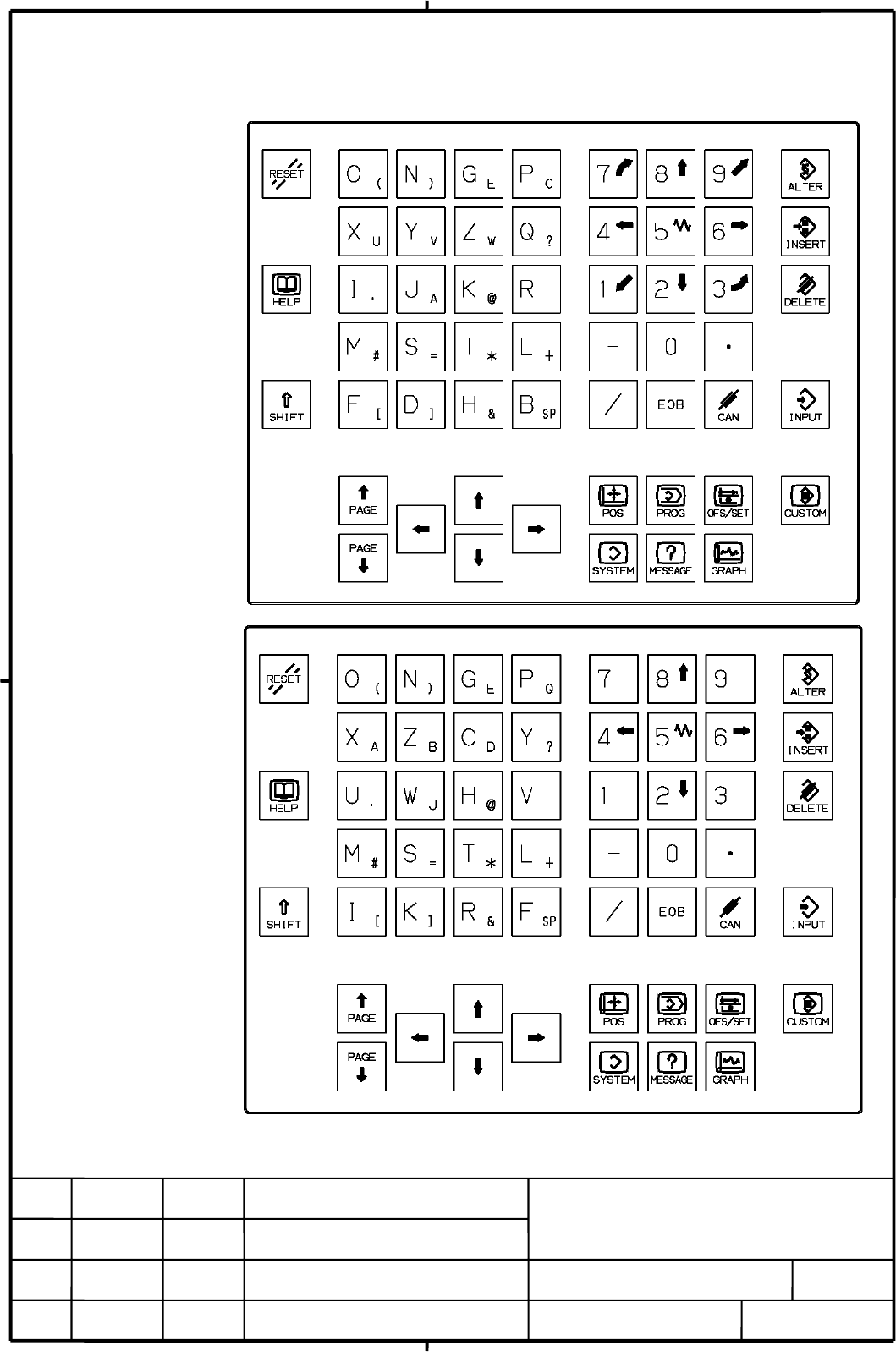

- Page 44．Location of MDI Key switches 9" monochrome CRT/MDI unit 7.2" monochrome LCD/MDIunit 8.4" color LCD/MDIunit Separate small MDI unit M Series T Series TITLE DRAW. NO. CUST. A-80946E SHEET EDIT. DATE DESIG. DESCRIPTION 003/4
- Page 5Separate full key MDI unit M Series T Series TITLE DRAW. NO. CUST. A-80946E SHEET EDIT. DATE DESIG. DESCRIPTION FANUC LTD 004/4
