#2 modified.

starting X- axis and Y-axis. For this situation, a retraction limit position can be set in the

parameter No.15843. The value of parameter No.15843 should be set to keep retraction

distance and not to make OT alarm. Fig.2 shows a concept of Z-axis locus when Z-axis is

retracted and approaches from near the surface of workpiece. When the position of starting

X-axis and Y-axis is defined near the surface of workpiece and Z-axis starts to be the

retracted and approach from below that position, Z-axis is retracted according to the set

value in parameter No.15842. When Z-axis reaches the position set in parameter No.15842,

Z-axis starts to decelerate and stops.

Fig. 3 shows a concept that retraction end position determined by each set value and start

position of Z-axis is higher than the position set in parameter No.15843. If Z-axis is

retracted from position "A" according to the set value of parameter No.15842, an OT alarm

will happen. So, preventing from the OT alarm, the retract movement of Z-axis is limited by

set value in parameter No.15843. Z-axis moves according to the set value of parameter

No.15842, but CNC decelerate the Z-axis to make the Z-axis velocity to zero when Z-axis

reaches the position set in parameter No.15843. And Z-axis starts to approach when the rest

of the movement of the basis axis.

But, if the parameter No.15840#7 is set to "1", Z-axis does not wait until the rest of the basis

Start position o

movement of X

axis and Y axis.

Prm No.15842

Prm No.15843

OT position

Ｘ，Ｙ

Ｚ

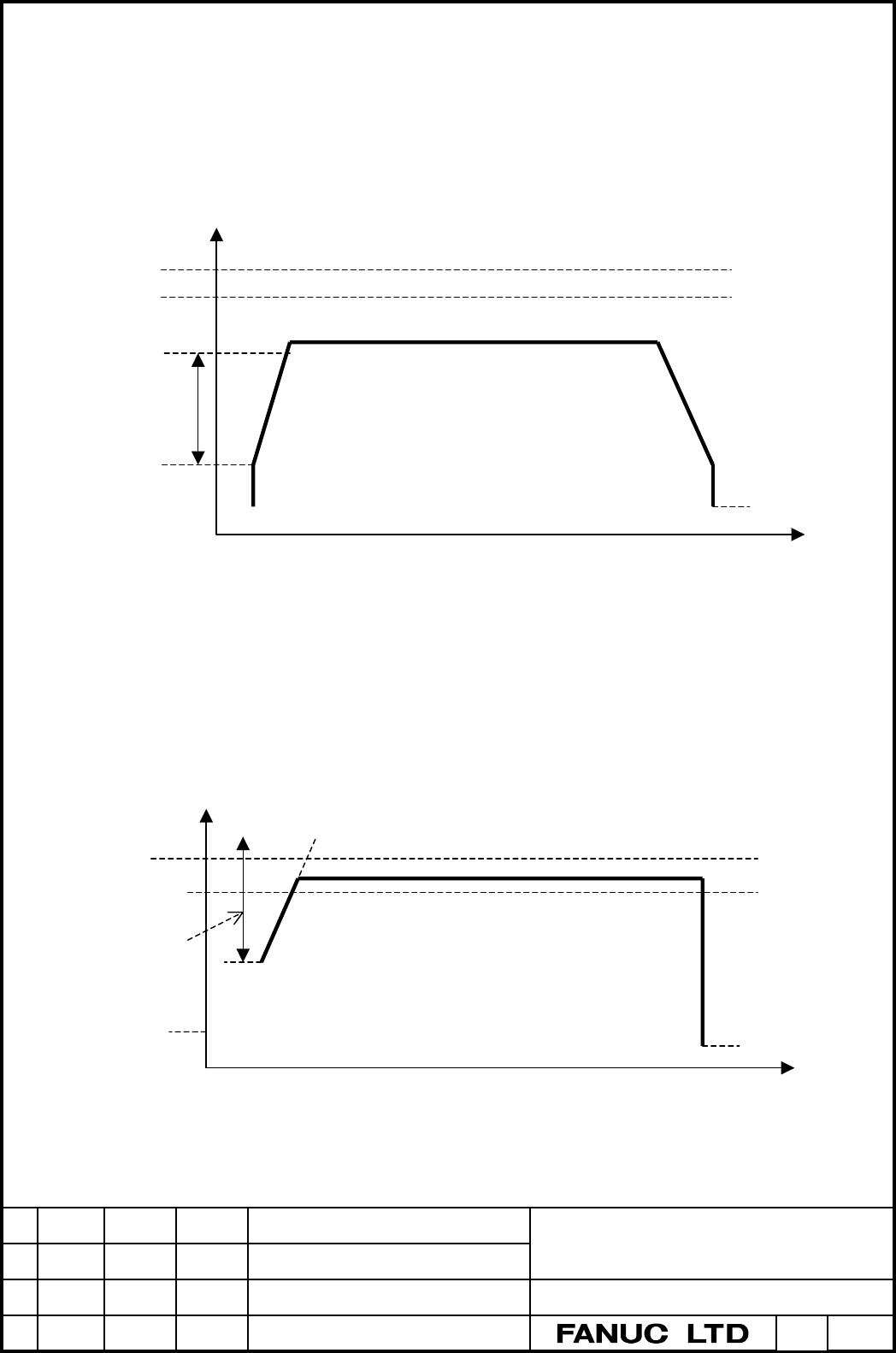

Fig. 2 In case of that Z-axis does retraction/return movement from

near the surface of work piece.

Execution end

position

Start position o

movement of X

axis and Y axis.

scent distance o

Prm No.15842

Position of prm.No.15843

OT position

Ｘ，Ｙ

Ｚ

Fig.３ In case of that Z-axis

does retraction/return movement from

higher position from the surface of work piece.

Execution end

osition
