Cylindrical interpolation cutting point control Additional Manual Page 10

Additional Manual
Title
No.
FANUC Series 16i/18i –MA/MB
Cylindrical interpolation cutting point control
A-78436E
Page
9/20
　Newly registered　　　　　　　
Ver Date Design Description
01 01.03.16 Hosokawa
3) When the amount of travel (L1) of block N2 is less than the
value set in parameter No. 6113, as shown in Fig.1 (f), cutting
point compensation is not applied between blocks N1 and N2.
Instead, block N2 is executed with the cutting point
compensation of the previous block. When the amount of
travel (L2) of block N3 is greater than the value set in
parameter No. 6113, cutting point compensation is applied
between blocks N2 and N3.

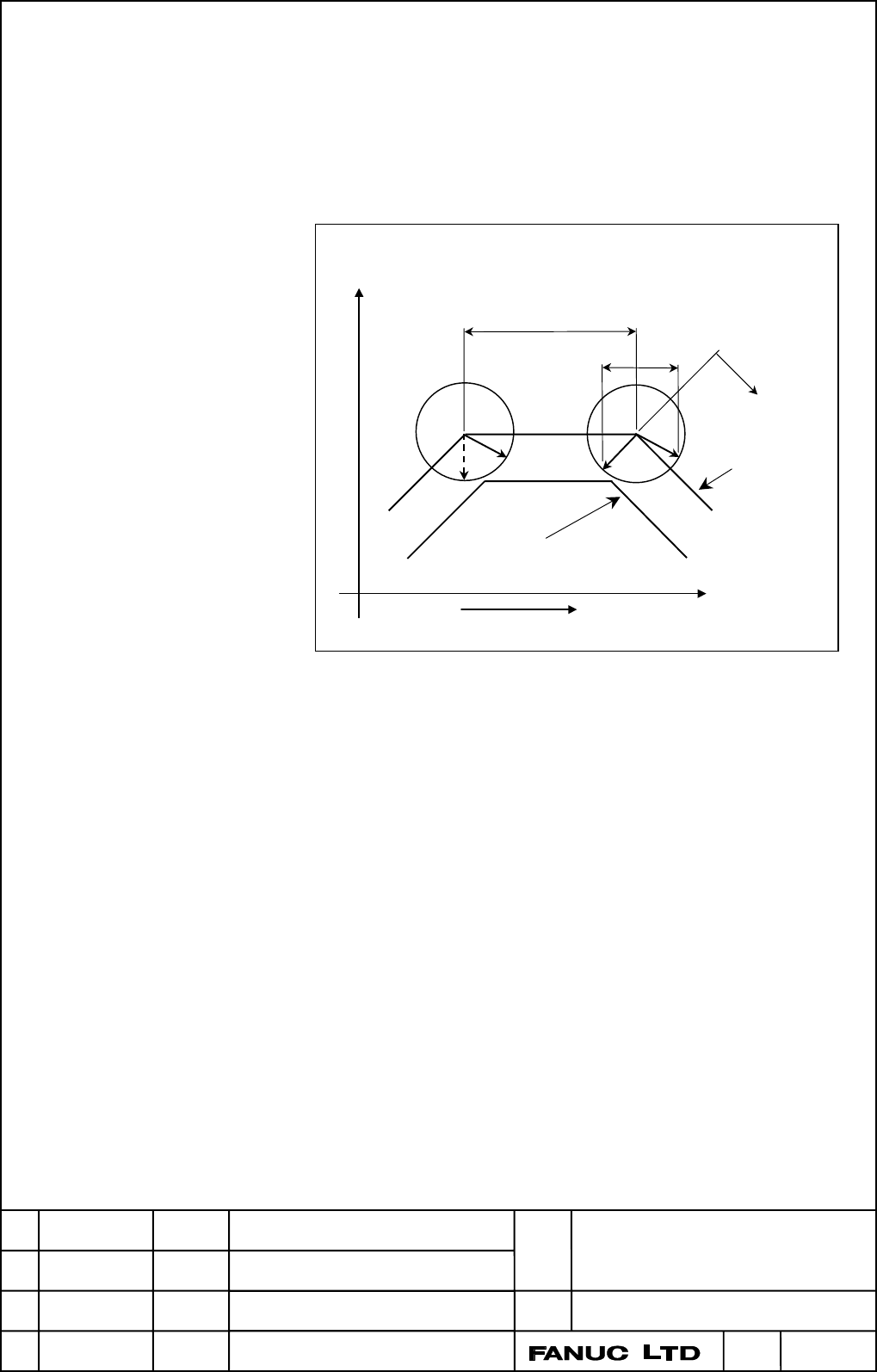

Fig.1 (f) When the Amount of Travel (L1) of Block N2 Is Less Than the
Parameter Value
Z-axis
C-axis on the
cylindrical surface
Y-axis
C1
C2
V
Tool center path
Programmed path
V ：C-axis component of C2 - C1
C1 ：Cutting surface of blocks N1 and N2
C2 ：Cutting surface at the end of block N3
C1
N1
N2
N3
L1
L2
