Cylindrical interpolation cutting point control Additional Manual Page 8

Additional Manual
Title
No.
FANUC Series 16i/18i –MA/MB
Cylindrical interpolation cutting point control
A-78436E
Page
7/20
　Newly registered　　　　　　　
Ver Date Design Description
01 01.03.16 Hosokawa
(3) When cutting point compensation is not applied between blocks
When, as shown in Fig.1 (d) andFig.1 (e), the cutting point
compensation value (V in the figures) is less than the value set in
parameter No. 6112, one of the operations below is performed.
(The operation that is performed depends on the setting of bit 6
(CYS) of parameter No. 6004.
1) When bit 6 (CYS) of parameter No. 6004 is set to 1
Cutting point compensation is not applied between blocks N1
and N2, but is applied when block N2 is executed.

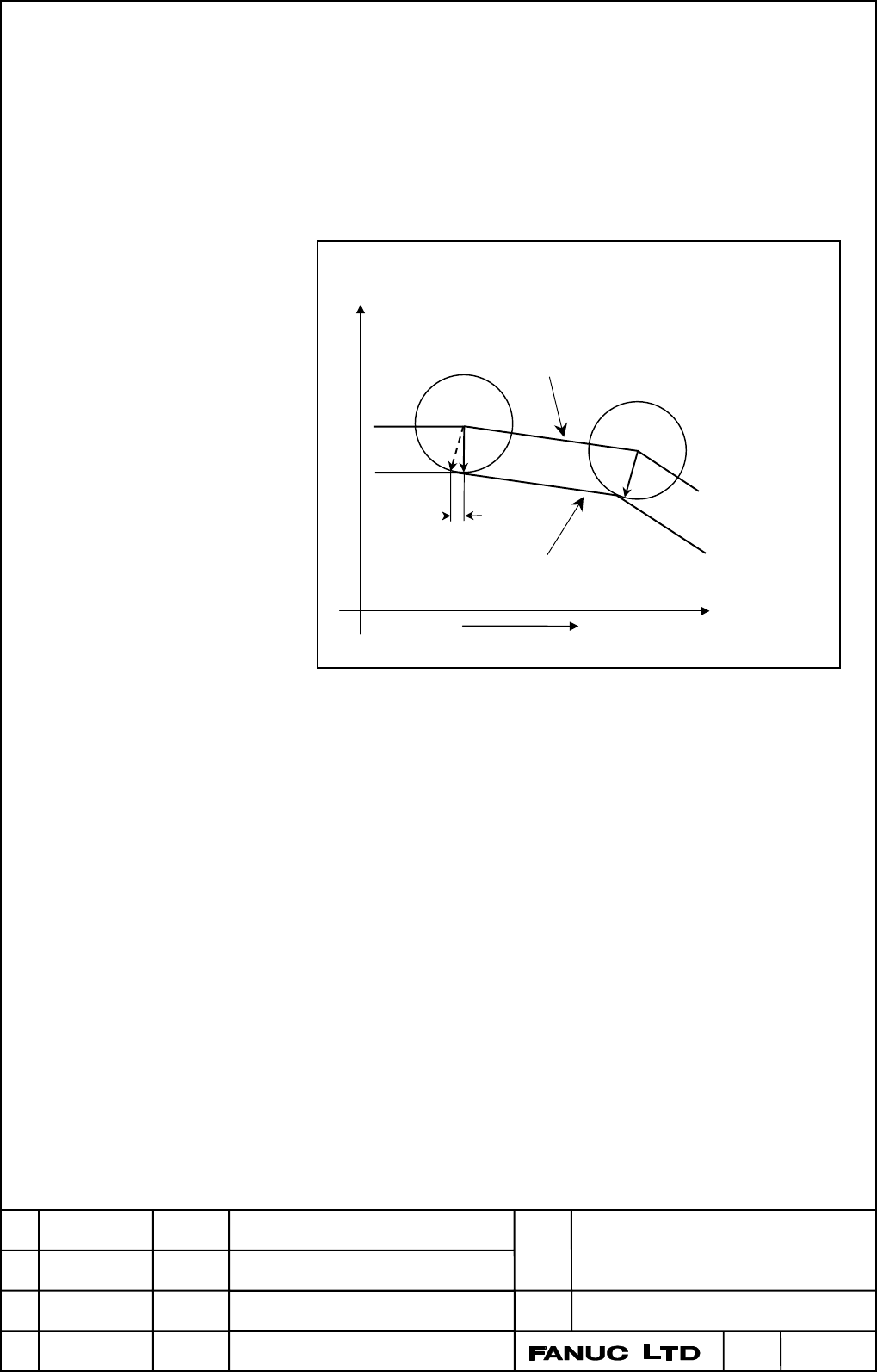

Fig.1 (d) When Bit 6 (CYS) of Parameter No. 6004 Is Set to 1
Z-axis
C-axis on the
cylindrical surface
Y-axis
S2
C2
C2
V
Tool center path
Programmed path
V ：C-axis component of C2 - C1
C1 ：Cutting surface of block N1
C2 ：Cutting surface after the end of block
S1
C1
N1
N2
N3
