FANUC Series 16i/160i -LB
Gap control axis high-speed approach function
A – 78797E
02.05.06
Contents
Date
Design
M.Sato
Title
Drawing
Page
04 2004.07.29 M.Sato NPDS signal has been added.
03 2004.05.20 M.Sato All pages has been changed.
02 2002.09.03 M.Sato Page 7 Error in writing correction
Outline
The approach speed of the gap control function is controlled according to the value multiplied
the gap control gain and the gap deflection.
The larger the gap control gain is set, the faster the approach speed is and the shorter the
approach time is. However, raising the gap control gain too much may cause oscillating the
gap control axis at the approach completing position.
This function makes the approach speed constant until the gap control axis reaches the
position set in the parameter beforehand.
This function can shorten the time spent on the approach operation when the gap control
starts.
This function is available in case of using Gap control B function (parameter No.15840#0).
Explanation
- Standard approach operation
Standard approach operation is as follows.
(1) The gap control axis moves down to the work-piece at the maximum speed until
entering the range where the gap sensor can detect the gap, because the gap sensor
outputs the negative maximum deflection.
(2) The gap control axis moves at the speed proportional to the gap deflection after entering
the gap detection range.
The gap control axis decelerates gradually, because it moves in the direction where the
gap deflection decreases.
(3) The approach completion signal is output to PMC and the approach operation is ended
when the gap deflection reaches the approach completion detection range which is set
in the parameter.
Lm : Upper limit of detection distance of gap sensor (= maximum gap deflection)
Lw : Surface of work-piece
Le : A
pp
roach com
p
letion detection ran
g
e
(
PRM No.15550
)
Horizontal axis : Distance from the standard point of gap
Amount of gap deflection
－
－
0
Le Lm Lw
Feedrate
Deflection

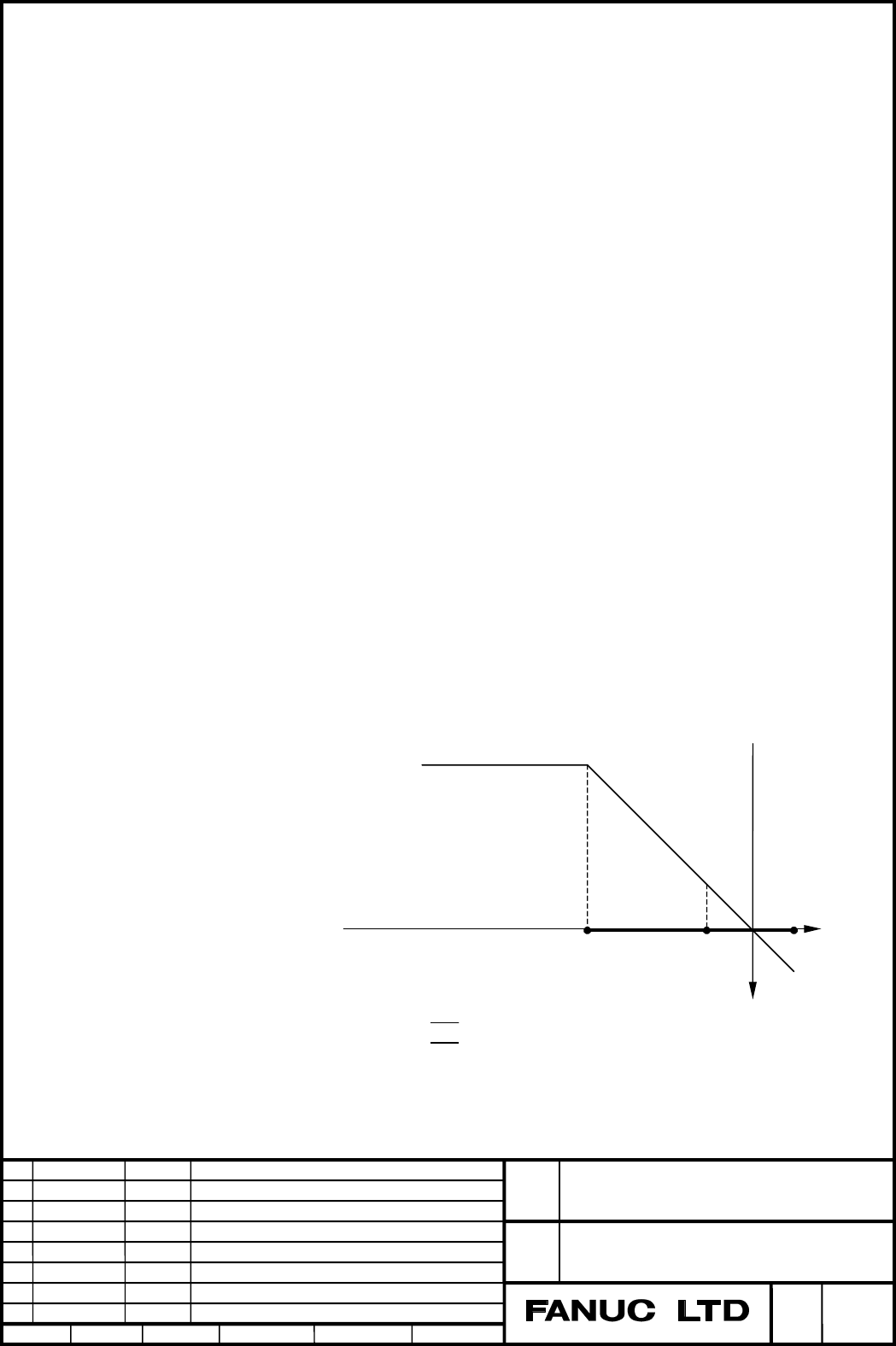

Fig.1 Feedrate of standard approach
