  2. FANUC Series16i/160i-LB, Gap Control Axis High-Speed Approach Function, Specification

FANUC Series16i/160i-LB, Gap Control Axis High-Speed Approach Function, Specification Additional Manual Page 4

Additional Manual
Edit
Reco
g
nition
4／10
Desi
g
n
FANUC Series 16i/160i -LB
Gap control axis high-speed approach function
A – 78797E
02.05.06
Contents
Date
Design
M.Sato
Title
Drawing
Page
04 2004.07.29 M.Sato NPDS signal has been added.
03 2004.05.20 M.Sato All pages has been changed.
02 2002.09.03 M.Sato Page 7 Error in writing correction
Operation at Pierce point
The gap control axis can be stopped at an arbitrary position to pierce a hole while
approaching.
The procedure is explained with using the following example part program.
(1) Specify PRM No.15840#4(LPP) for 1 and specify Pierce point stop signal (NPDS) for 1,
and this operation is effective.
(2) The gap control axis starts to approach at the approach speed (PRM No.15845) when
the block N1 is executed.
(3) When the gap control axis approaches to the surface of work-piece and the pierce point
signal (LPP) is input to CNC at point-b, the axis stops and N1 block ends. And G24 of
the block N2 is executed.
(4) The gap control axis restarts the approach when G13 is commanded again in the block
N3 after completing G24 block.
The gap control axis shifts to the standard gap control and the block N4 is executed
when the approach is completed.
Example part program
O0001;
………
N1 G13;
N2 G24;
N3 G13;
N4 G01 X100.0 F500 S1000 P1000 Q50;
………
0
t
a
N1
b
N4N2 N3
Feedrate of Gap axis

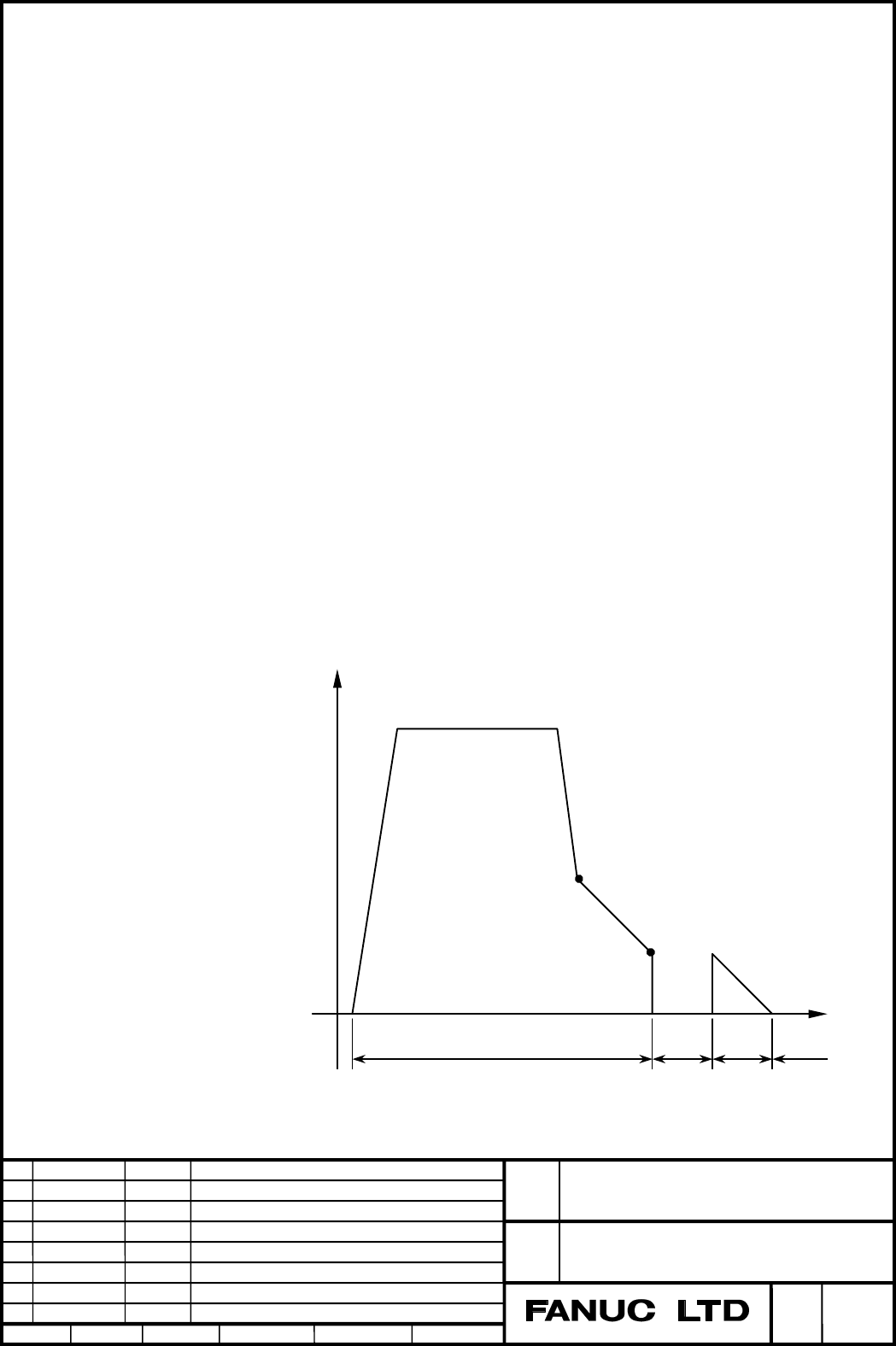

Fig.3 Operation of pierce point stop
