quaeroCNC - Instruction Manual Startup Guide Page 19

Startup Guide
GE Fanuc Automation Europe CNC S.A.
quaeroCNC Instruction Manual
Page 19 / 38 GFKE-0211-EN/05
Februar, 2006
Example
• Start quaeroCNC and change to the Full-Text Search tab.
• Make sure that the textbox for the search term is empty and that there are no filters applied
(see also
Figure 14)!
• Click on the
button to list all new/updated documents. A list of documents, having been
registered or modified since the reference date Date of previous index, as you can see in
Figure
17 is displayed.

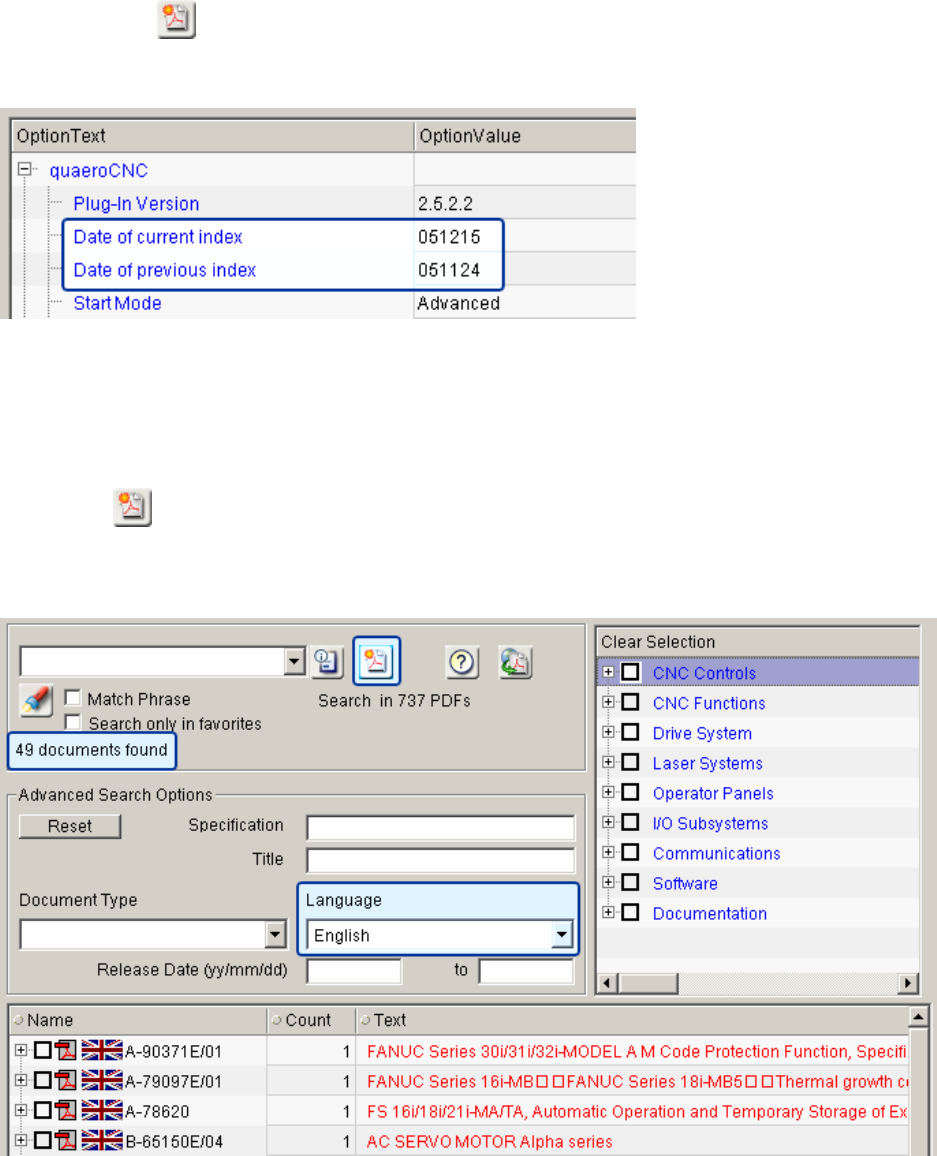

Figure 17 Date of the current/previous index on the Options tab
• Open the Language drop-down list on the Full-Text Search tab and select English. To close the
filter, press ENTER or click with the left mouse button in a free area outside the opened drop-
down list. The selected entries are thus accepted.
• Click on
to restart the listing.
• Only English documents that have been modified since the reference date are displayed now, in
this example 49 (see also
Figure 18).
Figure 18 Listing new/updated English documents
