quaeroCNC - Instruction Manual Startup Guide Page 24

Startup Guide
GE Fanuc Automation Europe CNC S.A.
quaeroCNC Instruction Manual
Page 24 / 38 GFKE-0211-EN/05
Februar, 2006
Favorites Search
If the Search only in favorites checkbox is activated, the search is restricted to the documents selected as
favorites. Filter and tree structure are not considered in this case.
• Index Search
The search term can also be selected from the index. The index is a list containing all terms appearing in
the quaeroCNC edition, with the exception of stop words. To perform an index search, press the Index
button and use the keyboard to enter the first letters of the search term. The index will jump automatically
to the first word beginning with this string of letters.
You can accept the selected search term with OK. The window closes automatically. Delete deletes the
search term from the entry line, Cancel closes the index window.

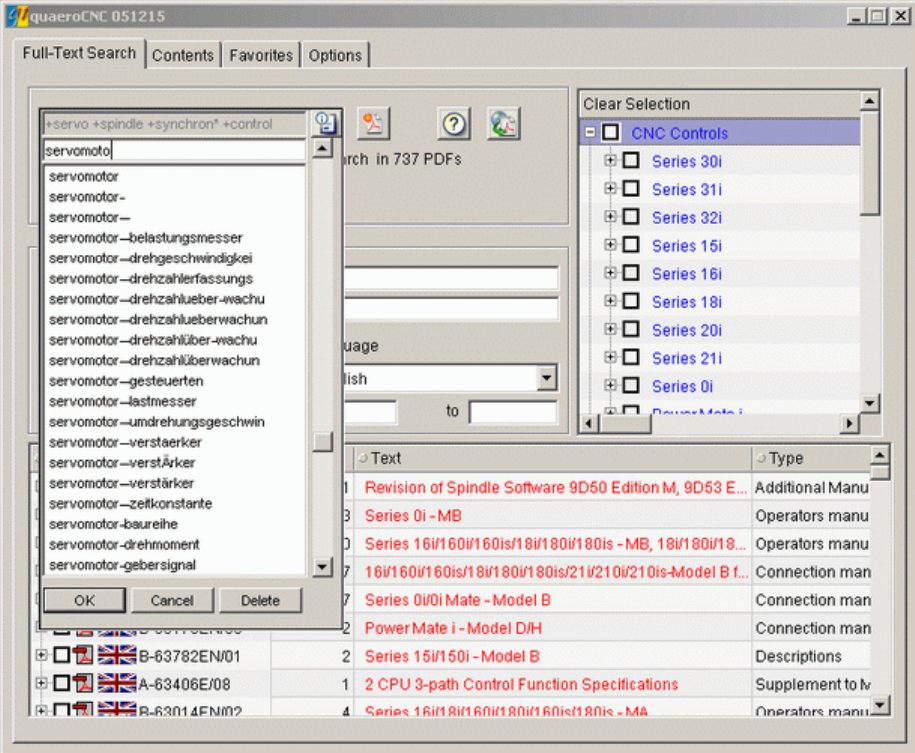

Figure 23 Example for a search in the index
Alternatively, you can also use the scroll bar on the right-hand side of the index window to scroll to the
desired search term. Click on OK to insert the highlighted word into the search query.
• Filter
It is possible to restrict the search according to certain filter criteria, Document Type and Language, and
by means of the textboxes for Specification and Title. As a further search restriction, you can use the
Release Date .
