FS 16i/18i-TA/TB Hobbing Function (for Lathe) Additional Manual Page 12

Additional Manual
PAGE
11/21
FANUC Series 16
i
/18
i
–TA/TB
HOBBING FUNCTION
EDT. DATE DESIG. DESCRIPTION
A – 78600E
NO.
TITLE
01 2001.09.17 Newly
Signals
Retract signal
RTRCT <G066#4>
[Classification]
[Classification][Classification]
[Classification] Input signal
[Function]
[Function][Function]
[Function] Performs retraction for the axis specified with a parameter.
[Operation]
[Operation] [Operation]
[Operation] When this signal turns to “1”, the control unit performs the following:
Detects the rising edge of this signal, and performs retraction on the axis
specified with bit 0 (RTRx) of parameter No.7730. The retract speed and
amount of retraction are specified with parameter Nos.7740 and 7741.
The retract signal is effective both in automatic operation mode and
manual operation mode. When the retract signal turns to “1” during
automatic operation, retraction is performed and the CNC enters feed
hold state.
Retract completion signal
RTRCTF <F065#4>
[Classification
[Classification[Classification
[Classification]
]]
]Output signal
[Function]
[Function][Function]
[Function] Posts notification of the completion of retraction.
[
[ [
[Operation]
Operation]Operation]
Operation] The signal becomes “1” when :
Upon the completion of retraction.
In case that there are two or more retract axes, upon the completion of
retraction of all retract axes.
The signal becomes “0” when :
Upon the completion of retraction, when one of the retract axis is moved
after that.

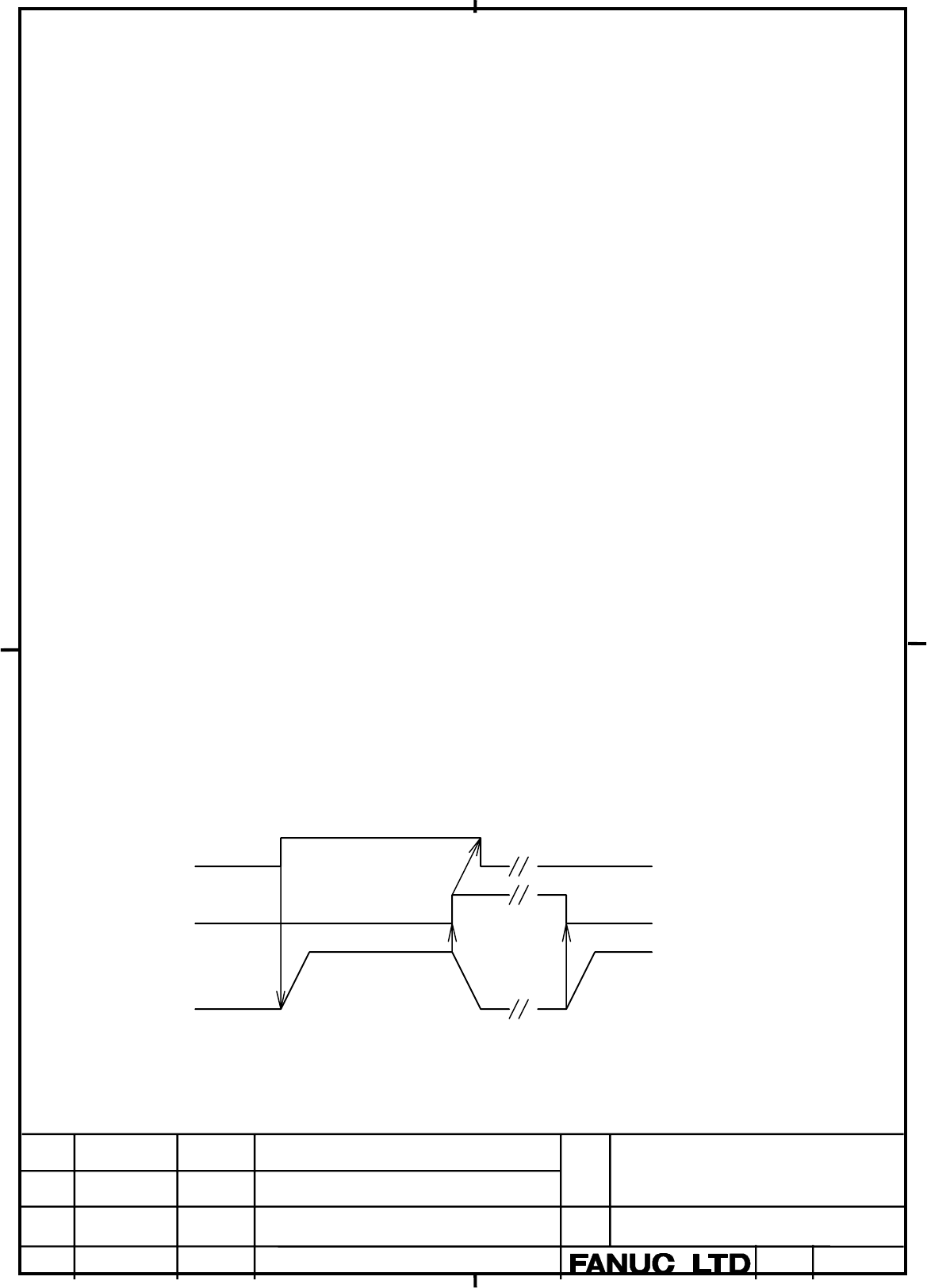

Timing chart
(1) ON/OFF timing of RTRCT and RTRCTF signals
RTRCT
RTRCTF
Moving Retract movement Moving command
Previous page
Next page
