FS 16i/18i-TA/TB Hobbing Function (for Lathe) Additional Manual Page 13

Additional Manual
PAGE
12/21
FANUC Series 16
i
/18
i
–TA/TB
HOBBING FUNCTION
EDT. DATE DESIG. DESCRIPTION
A – 78600E
NO.
TITLE
01 2001.09.17 Newly

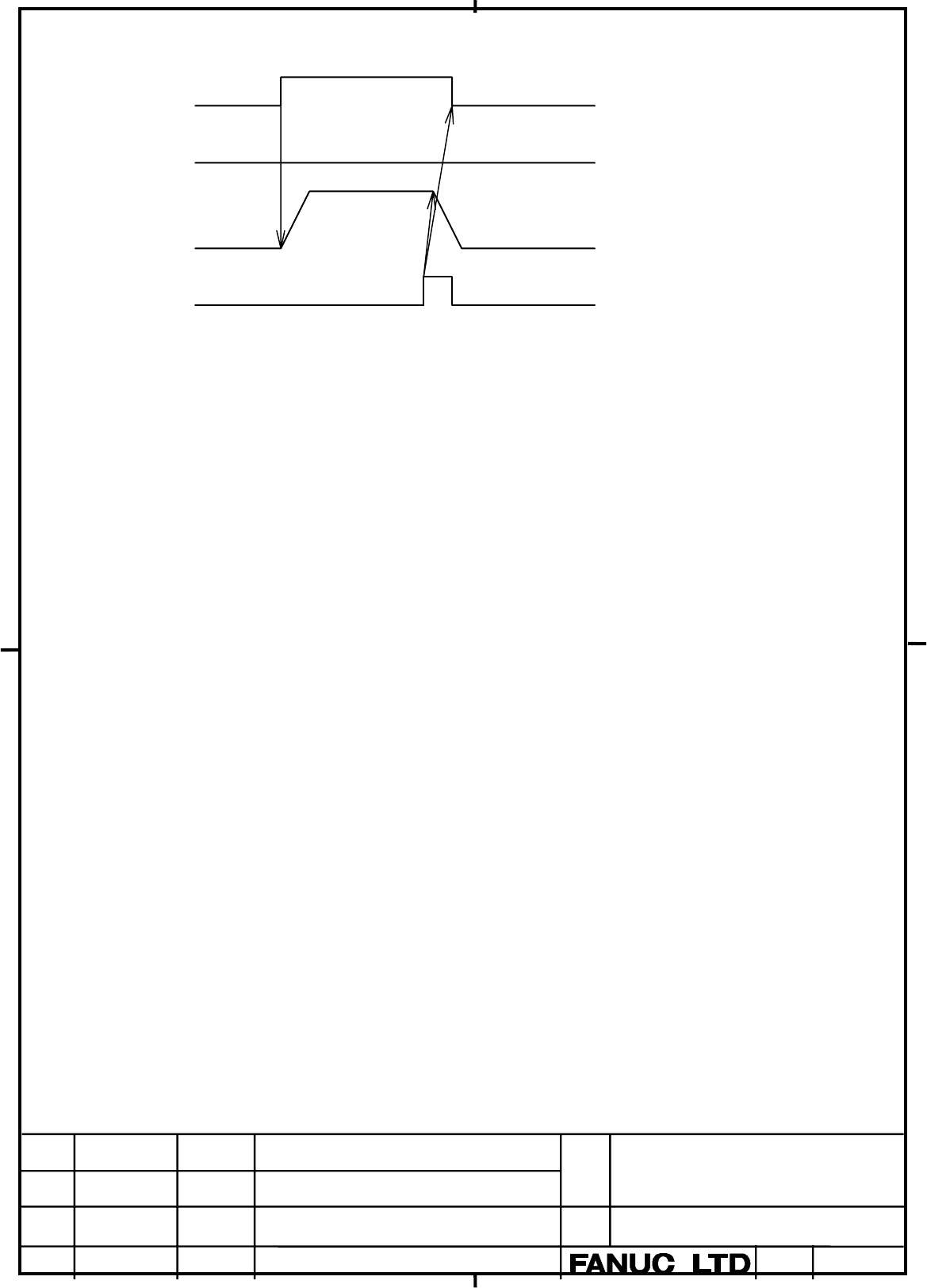

(2) The stopping of retract by the reset
RTRCT
RTRCTF
Moving Retract movement
stopping
RST
One-rotation position manual set signal
MSPC<G066#5>
[
[ [
[Classification
ClassificationClassification
Classification]
]]
] Input signal
[Function]
[Function] [Function]
[Function] Shifts the one-rotation signal position of the position coder.
[Operation]
[Operation][Operation]
[Operation] When this signal becomes 1, the control unit behaves as follows:
The position of the position coder when the signal becomes 1 is recorded
as the one-rotation signal position in the CNC. In addition, the one-
rotation signal setting completed signal MSPCF becomes 1 to indicate
that the one-rotation signal position has been recorded. Once the one-
rotation position manual set signal is issued, synchronization between the
hob axis and C-axis is established according to the specified one-rotation
signal position specified by G81.4.
This signal is ignored when:
The hob axis and C-axis are already in sync (G81.4 mode).
The one-rotation signal setting completed signal MSPCF is already 1.
When bit 1 (CMS) of parameter No. 7700 is 0, issuing a synchronization
cancel command (such as G80.4 or a reset) cancels a specified one-
rotation signal position.
Once the one-rotation signal position is canceled, synchronization
between the hob axis and C-axis is established according to a one-rotation
signal from the position coder as specified by the G81.4.
One-rotation position setting completed signal
