2. Installing a Special Lithium Battery in the SVM (Method 1)

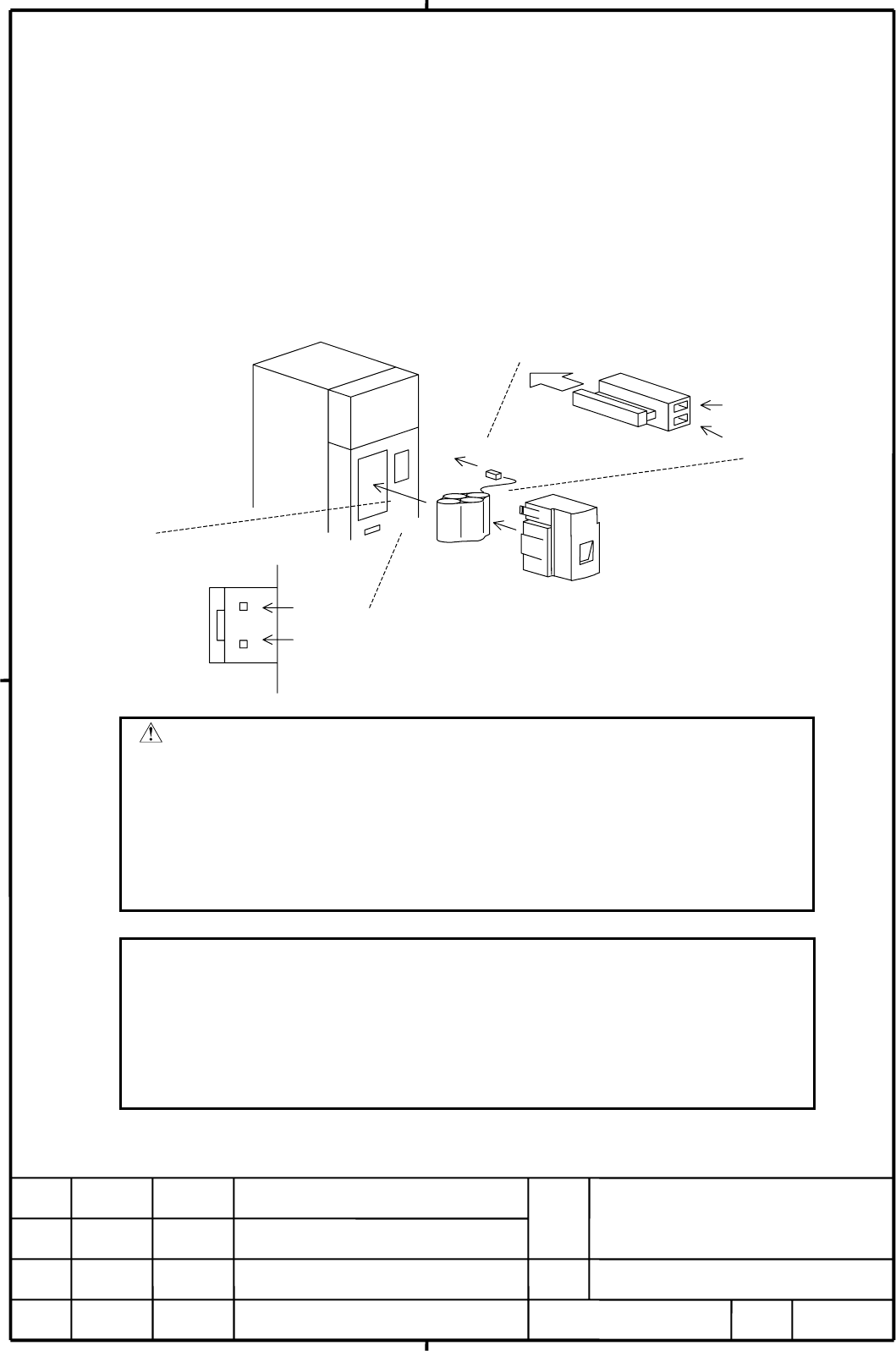

A special lithium battery (A06B-6114-K504) can be installed in the SVM (see the figure below).
[Installation procedure]
(1) Remove the battery cover from the SVM.
(2) Install the battery in the SVM as shown in the figure below.
(3) Install the battery case.
(4) Attach the battery connector to CX5X or CX5Y of the SVM.
Battery
SVM
Battery case
Inserting direction
Red: +6 V
Black: 0 V
CX5X
+6V
0V
Connector
Cable side
WARNING
1. Install the battery with correct polarity. If the battery is installed with
incorrect polarity, it may overheat, blow out, or catch fire.
2. When installing the battery with its connector attached to connector
CX5X or CX5Y, attach the factory-installed protection socket to the
unused connector. When the +6-V and 0-V pins of CX5X or CX5Y are
short-circuited, the battery may overheat, blow out, or catch fire.
CAUTION
1. You may attach the battery connector to either CX5X or CX5Y.
2. When the battery is installed in the SVM from the side from which the
cable is drawn, the cable may be stretched tight, which can lead to a
poor contact condition. Therefore, install the battery so that the cable is
not extended tightly.
