PERIODIC MAINTENANCE OF BATTERY FOR THE ABSOLUTE PULSECODER Supplement to Manual Page 5

Supplement to Manual
DRAW.
No.
TITLE
Pa
g
e
005
/
10
DESCRIPTIONDESIGNDATE EDIT
PERIODIC MAINTENANCE OF
BATTERY FOR THE ABSOLUTE
PULSECODER
B-65165E/02-02
FANUC LTD

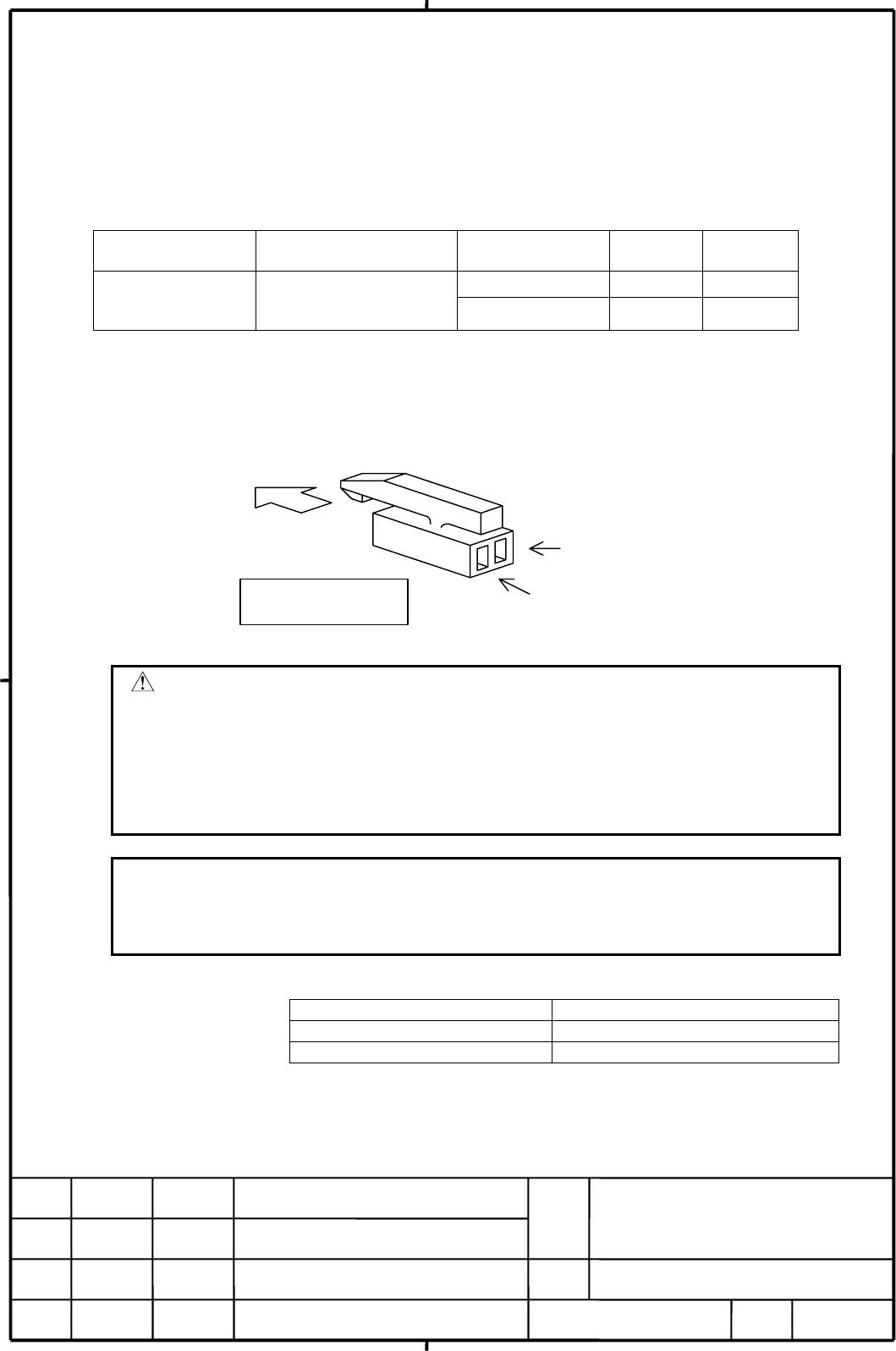

4.Connecting a Battery to Multiple SVMs
There are two methods for connecting a battery to more than one SVM.
(1) Connecting a battery installed in one SVM to other SVMs
(2) Connecting a separate battery unit to SVMs
The following connector kit is provided for preparing cables:
Drawing No. Manufacturer Part number of
manufacturer
Product Quantity
1L-L2S-S3L-B(N)
Housing
2 A06B-6093-K303
Japan Aviation
Electronics Industry,
Ltd.
1L-C2-1-00001
Contact
4
Note) A special crimping tool is required to attach contacts to a cable.
Contact the following:
Japan Aviation Electronics Industry, Ltd.
Cable side
Inserting direction
+6V
0V
1L-L2S-S3L-B(N)
WARNING
1. Install the battery with correct polarity. If the battery is installed with
incorrect polarity, it may overheat, blow out, or catch fire.
2. When installing the battery with its connector attached to connector CX5X
or CX5Y, attach the factory-installed protection socket to the unused
connector. When the +6-V and 0-V pins of CX5X or CX5Y are
short-circuited, the battery may overheat, blow out, or catch fire.
CAUTION
Note that when a battery is shared among more than one servo amplifier
module (SVM), the battery life will shorten. The following table shows
general life times of batteries.
Battery type General life time
Lithium battery Half a year for three axes
Four R20 alkaline dry cells One year for six axes
