FANUC Series 16i/18i-MB, 18i-MB5
TILTED WORKING PLANE COMMAND
Enhancement in tool axis direction control Specification
A
-79310E
2004.1.21
6
/
12

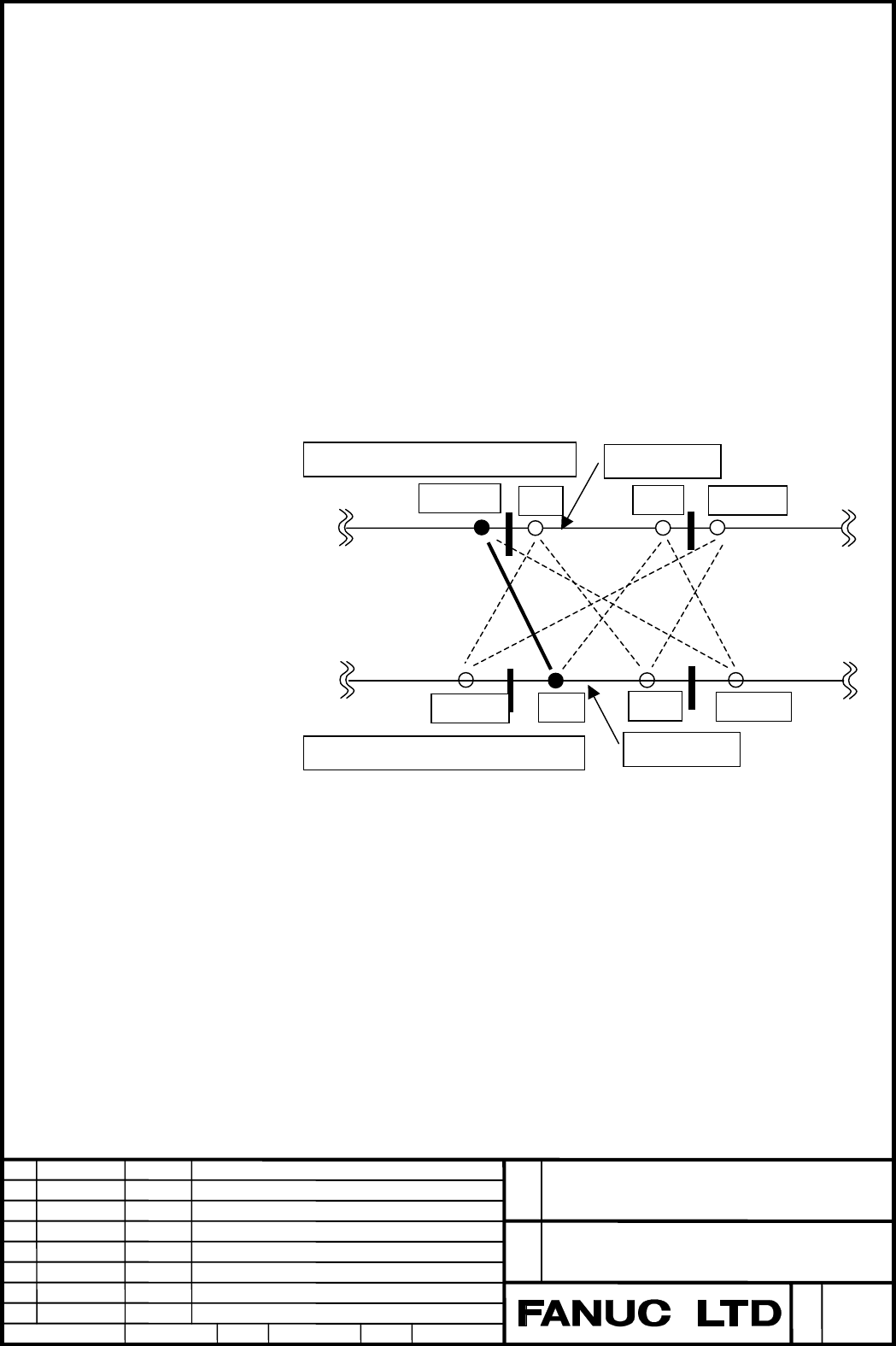

A pair of computed angles among the pairs which are connected by the dotted
line in the above figure becomes the "output angle".
If the angles (the "current angles") are 50.0 (tool rotation axis) and 150.0 (table
rotation axis), when G53.1 has been specified, the "output angles" are
determined as follows.
(1) The case that the table moving angle is smaller and the movement range is
not specified:
(PRM19608#5=0, PRM19741=0, PRM19742=0, PRM19743=0, PRM19744=0)
"Output angles": (Tool rotation axis -30.0, Table rotation axis 90.0)
The computed angle of table rotation axis that is nearest to the
current angle is adopted first. Then, among the computed angles
of tool rotation axis that are paired with that angle, one that is
nearest to the current angle is adopted.
0
360
0
360
Computed angles of tool rotation axis
330-360
Computed angles of table rotation axis
Current angle
Current angle
30
330
30+360
90
270
270-360
90+360
