FANUC Series 16i/18i-MB, 18i-MB5
TILTED WORKING PLANE COMMAND
Enhancement in tool axis direction control Specification
A
-79310E
2004.1.21
7
/
12

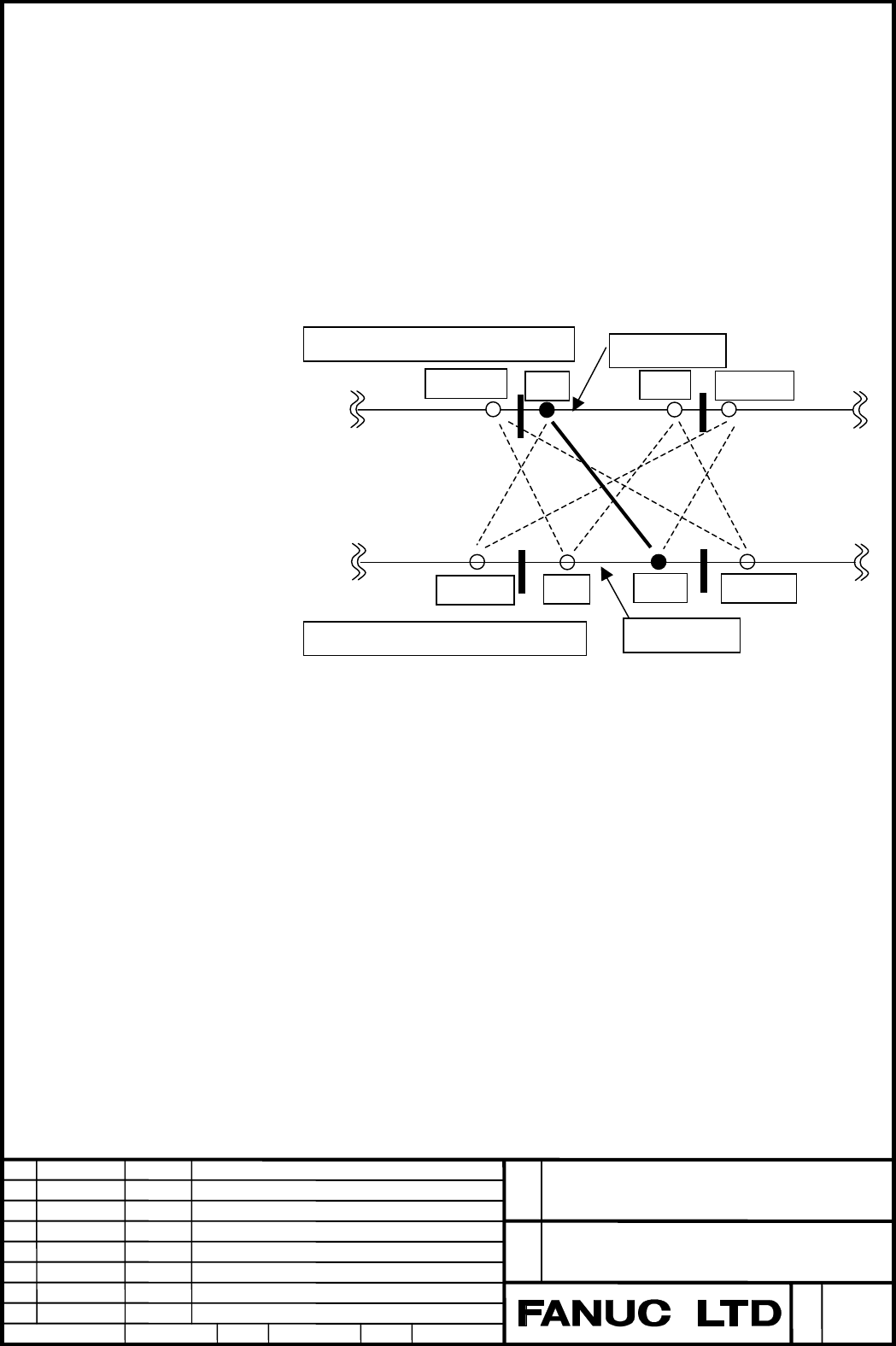

(2) The case that the table moving angle is smaller and the movement range is
not specified:
(PRM19608#5=1, PRM19741=0, PRM19742=0, PRM19743=0, PRM19744=0)
"Output angles": (Tool rotation axis 30.0, Table rotation axis 270.0)
The computed angle of tool rotation axis that is nearest to the
current angle is adopted first. Then, among the computed angles
of table rotation axis that are paired with that angle, one that is
nearest to the current angle is adopted.
0
360
0
360
Computed angles of tool rotation axis
Computed angles of table rotation axis
Current angle
Current angle
90
270
270-360
90+360
330-360
30
330
30+360
